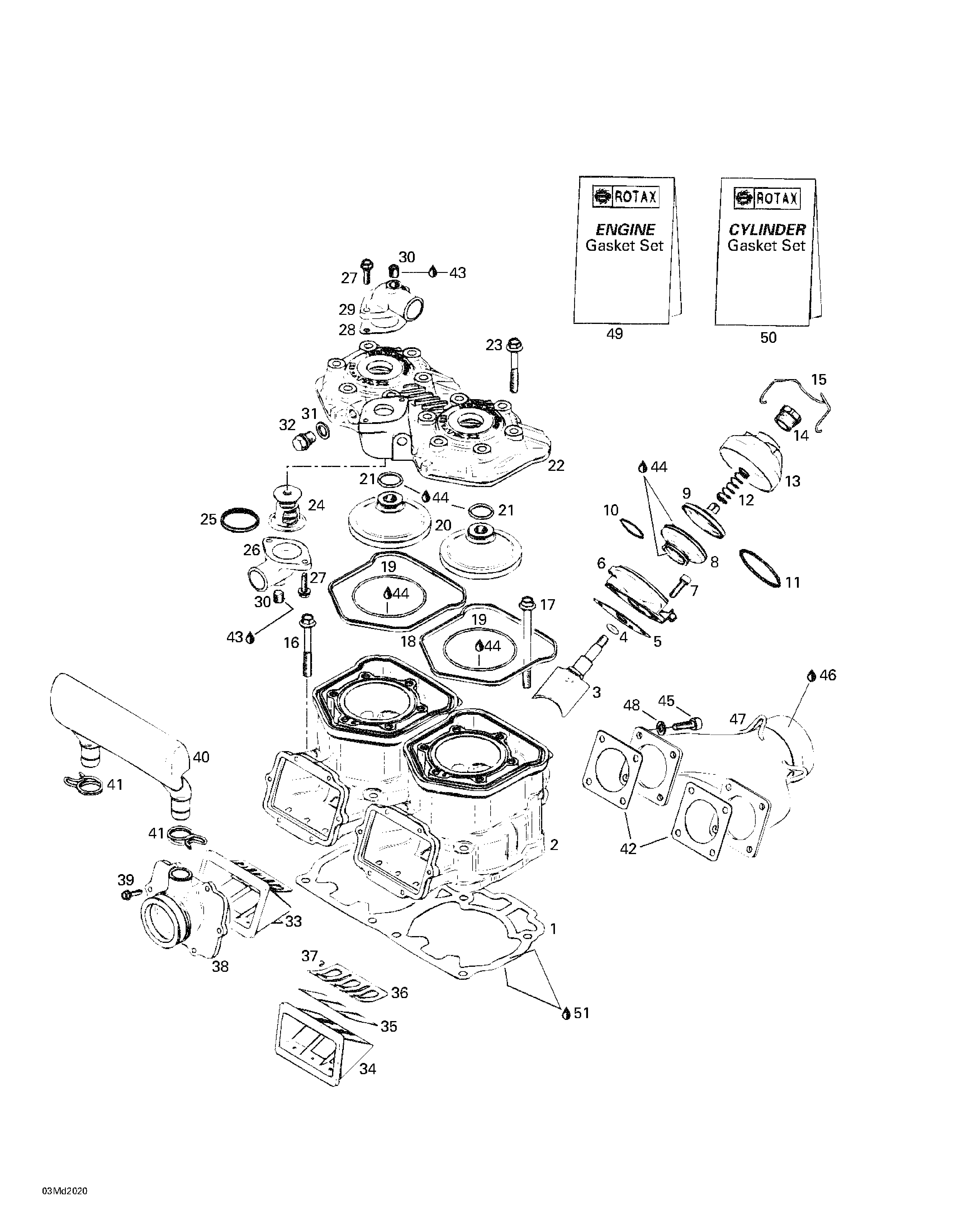

01- Cylinder, Exhaust Manifold для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1420931584 Double Gasket 0,8 mmDouble Gasket 0,8 mm
-
420931962 Double Gasket 0,7 mmDouble Gasket 0,7 mm
-
420931583 Double Gasket 0,5 mmDouble Gasket 0,5 mm
-
420931582 Double Gasket 0,6 mmDouble Gasket 0,6 mm
-
420931581 Double Gasket 0,4 mmDouble Gasket 0,4 mm
-
420931580 Double Gasket 0,3 mmDouble Gasket 0,3 mm
-
2420923720 Nicasil CylinderNicasil Cylinder
-
3420854480 Exhaust ValveExhaust Valve
-
4420850460 O-RingO-Ring
-
5420250239 GasketGasket
-
6420854265 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8420260723 BellowsBellows
-
9420854447 Exhaust Valve PistonExhaust Valve Piston
-
10420838253 Spring ClampSpring Clamp
-
11290239048 Hose SpringHose Spring
-
12420239948 SpringSpring
-
13420911551 Valve CoverValve Cover
-
14420241220 Adjuster ScrewAdjuster Screw
-
15420838082 Spring ClipSpring Clip
-
16420841999 ScrewScrew
-
17420940129 Hex. Flanged Screw M8 x 100Hex. Flanged Screw M8 x 100
-
18420931595 Square RingSquare Ring
-
19420950490 O-RingO-Ring
-
20420923877 Combustion Chamber InsertCombustion Chamber Insert
-
21420430370 O-RingO-Ring
-
22420923731 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
23420240326 Hex. Flanged Screw M8 x 53,5Hex. Flanged Screw M8 x 53,5
-
24414834100 Thermostat (42 Deg.)Thermostat (42 Deg.)
-
25420931270 Bague -tancheBague -tanche
-
26420922061 Bent Outlet SocketBent Outlet Socket
-
27420941250 Tapping Screw M6 x 20Tapping Screw M6 x 20
-
28420850338 GasketGasket
-
29420922062 Bent Outlet SocketBent Outlet Socket
-
30420240480 Screw Plug 1/8-27 NPTScrew Plug 1/8-27 NPT
-
31420250015 Ring GasketRing Gasket
-
32420841921 Screw Plug M12 x 1,5Screw Plug M12 x 1,5
-
33420924640 Reed Valve Ass'y. Includes 33 - 37.Reed Valve Ass'y. Includes 33 - 37.
-
35420924630 Reed PedalReed Pedal
-
36420924635 Reed Pedal StopReed Pedal Stop
-
37420941215 Screw M3 x 5Screw M3 x 5
-
38420867865 Carburetor SocketCarburetor Socket
-
39420941925 Tapping Screw M5 x 16Tapping Screw M5 x 16
-
40420867815 Intake ResonatorIntake Resonator
-
41420851440 ClampClamp
-
42420850552 GasketGasket
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
44413707000 Molykote 111Molykote 111
-
45205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
46413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
47420973550 Exhaust ManifoldExhaust Manifold
-
48234161471 Lock Washer 6 mmLock Washer 6 mm
-
49420888631 Engine Gasket SetEngine Gasket Set
-
50420888635 Cylinder Gasket SetCylinder Gasket Set
-
51293800038 Loctite 518, 50 mlLoctite 518, 50 ml
