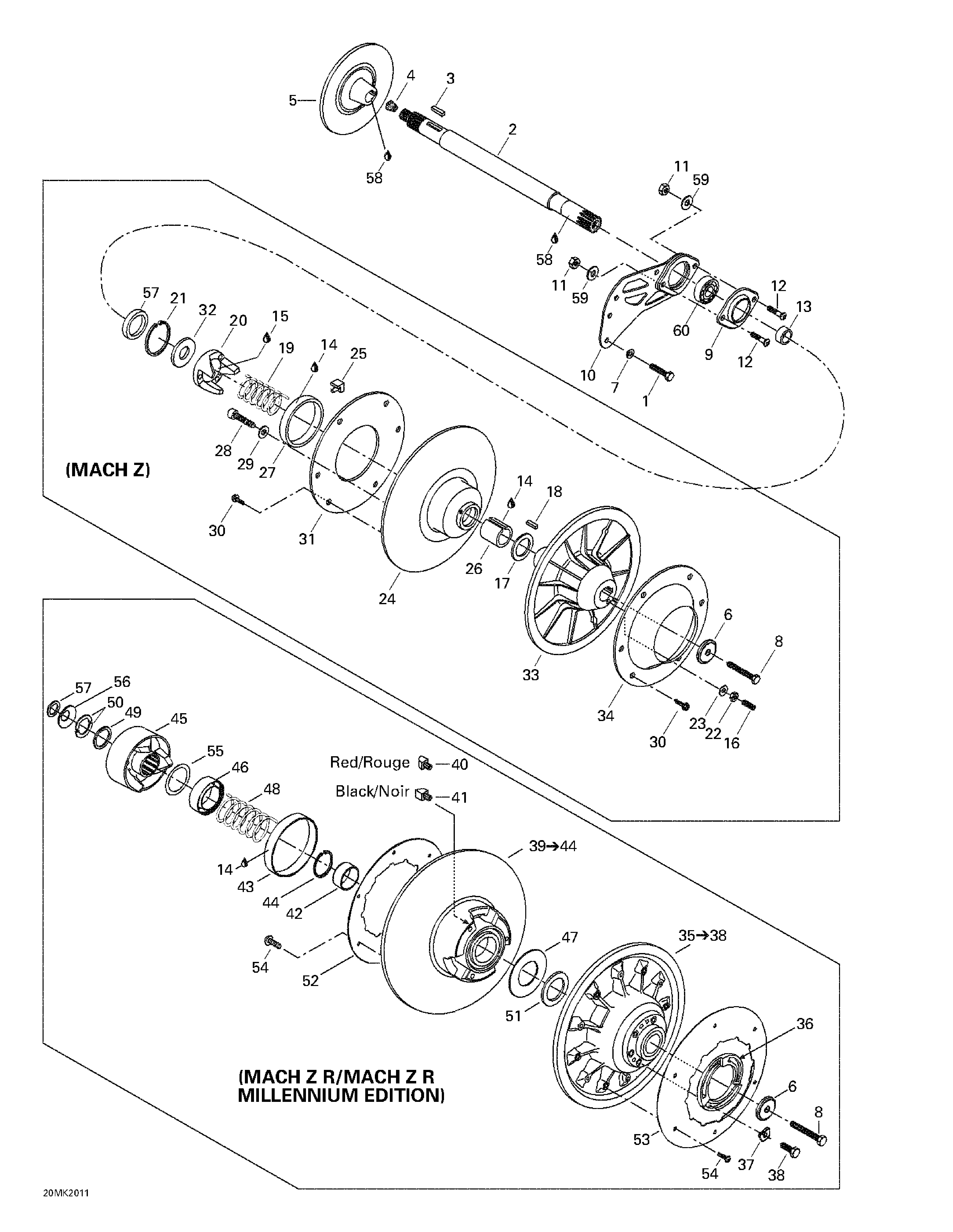

05- Driven Pulley для BRP Ski-Doo Mach Z R Millennium Edition - 2000

  • №
    Артикул
    Название
  • 1
    207161844 Hex. Screw M6 x 18
    Hex. Screw M6 x 18
  • 2
    501026300 Countershaft
    Countershaft
  • 3
    507021300 Key
    Key
  • 4
    414784800 Cork
    Cork
  • 5
    507031300 Brake Disk
    Brake Disk
  • 6
    517302322 Washer
    Washer
  • 7
    234161471 Lock Washer 6 mm
    Lock Washer 6 mm
  • 8
    207087544 Hex. Screw M8 x 75
    Hex. Screw M8 x 75
  • 9
    501026900 Flange
    Flange
  • 10
    080039300 Spacer (Casting)
    Spacer (Casting)
  • 11
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 12
    205483046 Socket Head Screw M8 x 30
    Socket Head Screw M8 x 30
  • 13
    504149100 Spacer
    Spacer
  • 14
    413703100 Loctite 609, 10 ml
    Loctite 609, 10 ml
  • 15
    413701000 Loctite 767, Antiseize Lubricant, 12 oz. Mach Z.
    Loctite 767, Antiseize Lubricant, 12 oz. Mach Z.
  • 16
    206263044 Socket Set Screw M6 x 30. Mach Z.
    Socket Set Screw M6 x 30. Mach Z.
  • 17
    504141900 Thrust Washer. Mach Z.
    Thrust Washer. Mach Z.
  • 18
    414820800 Key. Mach Z.
    Key. Mach Z.
  • 19
    414558900 Release Spring (Beige). Mach Z.
    Release Spring (Beige). Mach Z.
  • 20
    417126387 Cam. Mach Z.
    Cam. Mach Z.
  • 21
    371903100 Circlip. Mach Z.
    Circlip. Mach Z.
  • 22
    232061414 Hex. Nut M6. Mach Z.
    Hex. Nut M6. Mach Z.
  • 23
    420245370 Washer. Mach Z.
    Washer. Mach Z.
  • 24
    504143200 Sliding Flange Ass'y. Mach Z.
    Sliding Flange Ass'y. Mach Z.
  • 25
    414918000 Cam Slider Shoe. Mach Z.
    Cam Slider Shoe. Mach Z.
  • 26
    415011200 Bushing. Mach Z.
    Bushing. Mach Z.
  • 27
    860423000 Garlock Bushing Kit. Includes 27 - 28. Mach Z.
    Garlock Bushing Kit. Includes 27 - 28. Mach Z.
  • 28
    205451286 Socket Head Screw M5 x 12. Mach Z.
    Socket Head Screw M5 x 12. Mach Z.
  • 29
    399910000 Flat Washer. Mach Z.
    Flat Washer. Mach Z.
  • 30
    210251180 Hex. Forming Screw M5 x 11. Mach Z.
    Hex. Forming Screw M5 x 11. Mach Z.
  • 31
    504142100 Ring. Mach Z.
    Ring. Mach Z.
  • 32
    504141800 Washer. Mach Z.
    Washer. Mach Z.
  • 33
    417010200 Fixed Flange. Mach Z.
    Fixed Flange. Mach Z.
  • 34
    504142000 Cup. Mach Z.
    Cup. Mach Z.
  • 35
    417126414 Fixed Flange Ass'y. Includes 35 - 38. Mach Z R. Mach Z R Millennium Edition.
    Fixed Flange Ass'y. Includes 35 - 38. Mach Z R. Mach Z R Millennium Edition.
  • 36
    415005800 Adjustment Ring. Mach Z R. Mach Z R Millennium Edition.
    Adjustment Ring. Mach Z R. Mach Z R Millennium Edition.
  • 37
    415005900 Adjustment Shim. Mach Z R. Mach Z R Millennium Edition.
    Adjustment Shim. Mach Z R. Mach Z R Millennium Edition.
  • 38
    207162544 Hex. Screw M6 x 25 (3). Mach Z R. Mach Z R Millennium Edition.
    Hex. Screw M6 x 25 (3). Mach Z R. Mach Z R Millennium Edition.
  • 207162244 Hex. Screw M6 x 22 (3). Mach Z R. Mach Z R Millennium Edition.
    Hex. Screw M6 x 22 (3). Mach Z R. Mach Z R Millennium Edition.
  • 39
    417126318 Sliding Flange Ass'y. Includes 39 - 44. Mach Z R. Mach Z R Millennium Edition.
    Sliding Flange Ass'y. Includes 39 - 44. Mach Z R. Mach Z R Millennium Edition.
  • 40
    417126373 Rear Cam Shoe Slider (Red). Mach Z R. Mach Z R Millennium Edition.
    Rear Cam Shoe Slider (Red). Mach Z R. Mach Z R Millennium Edition.
  • 41
    417126374 Front Cam Shoe Slider (Black). Mach Z R. Mach Z R Millennium Edition.
    Front Cam Shoe Slider (Black). Mach Z R. Mach Z R Millennium Edition.
  • 43
    414978100 Bushing. Mach Z R. Mach Z R Millennium Edition.
    Bushing. Mach Z R. Mach Z R Millennium Edition.
  • 44
    371911200 Circlip. Mach Z R. Mach Z R Millennium Edition.
    Circlip. Mach Z R. Mach Z R Millennium Edition.
  • 45
    417126385 Cam Ass'y. Mach Z R. Mach Z R Millennium Edition.
    Cam Ass'y. Mach Z R. Mach Z R Millennium Edition.
  • 46
    417126381 Guard. Mach Z R. Mach Z R Millennium Edition.
    Guard. Mach Z R. Mach Z R Millennium Edition.
  • 47
    504099600 Thrust Washer. Mach Z R. Mach Z R Millennium Edition.
    Thrust Washer. Mach Z R. Mach Z R Millennium Edition.
  • 48
    414978300 Release Spring. Mach Z R. Mach Z R Millennium Edition.
    Release Spring. Mach Z R. Mach Z R Millennium Edition.
  • 49
    417126375 Spacer. Mach Z R. Mach Z R Millennium Edition.
    Spacer. Mach Z R. Mach Z R Millennium Edition.
  • 50
    371911000 Half Key. Mach Z R. Mach Z R Millennium Edition.
    Half Key. Mach Z R. Mach Z R Millennium Edition.
  • 51
    504112300 Shim. Mach Z R. Mach Z R Millennium Edition.
    Shim. Mach Z R. Mach Z R Millennium Edition.
  • 52
    504149700 Aerodynamic Cover. Mach Z R. Mach Z R Millennium Edition.
    Aerodynamic Cover. Mach Z R. Mach Z R Millennium Edition.
  • 53
    504151831 Aerodynamic Cover. Mach Z R. Mach Z R Millennium Edition.
    Aerodynamic Cover. Mach Z R. Mach Z R Millennium Edition.
  • 54
    732600032 Screw M5 x 11. Mach Z R. Mach Z R Millennium Edition.
    Screw M5 x 11. Mach Z R. Mach Z R Millennium Edition.
  • 55
    417126322 Swivel Abutment. Mach Z R. Mach Z R Millennium Edition.
    Swivel Abutment. Mach Z R. Mach Z R Millennium Edition.
  • 56
    417300055 Protector. Mach Z R. Mach Z R Millennium Edition.
    Protector. Mach Z R. Mach Z R Millennium Edition.
  • 57
    417300054 Spacer. Mach Z R. Mach Z R Millennium Edition.
    Spacer. Mach Z R. Mach Z R Millennium Edition.
  • 417126302 Spacer. Mach Z.
    Spacer. Mach Z.
  • 58
    293800023 Loctite 767, Antiseize Lubricant, 454 g
    Loctite 767, Antiseize Lubricant, 454 g
  • 59
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 60
    405408200 Ball Bearing
    Ball Bearing
