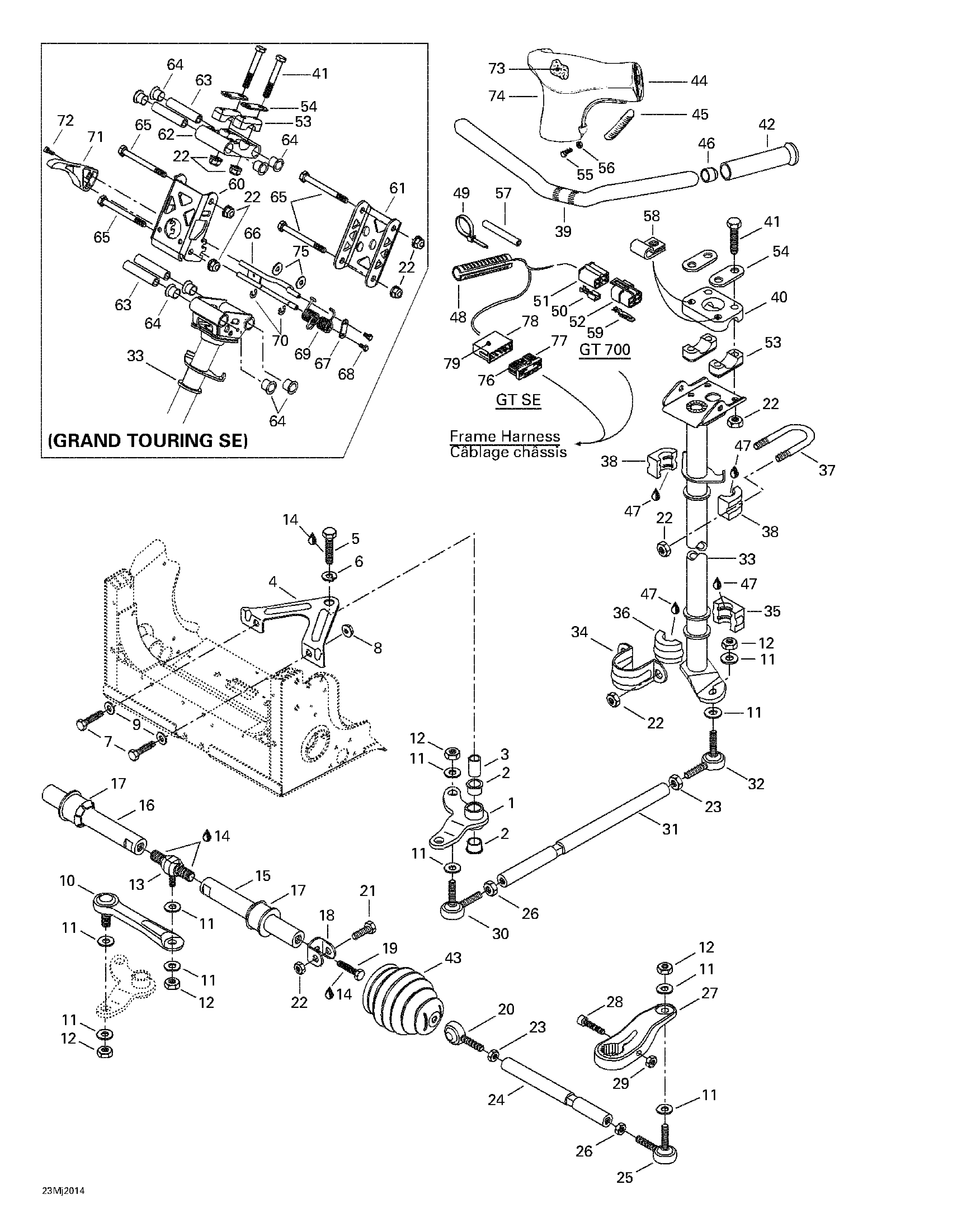

07- Steering System для BRP Ski-Doo Grand Touring SE Millennium Edition - 2000

  • №
    Артикул
    Название
  • 1
    506129500 Pivot Arm
    Pivot Arm
  • 2
    415041100 Cushion
    Cushion
  • 3
    506131500 Pivot
    Pivot
  • 4
    506138400 Pivot Support
    Pivot Support
  • 5
    207006044 Hex. Screw M10 x 60
    Hex. Screw M10 x 60
  • 6
    234101411 Lock Washer 10 mm
    Lock Washer 10 mm
  • 7
    207066044 Hex. Screw M6 x 60
    Hex. Screw M6 x 60
  • 8
    233261414 Elastic Flanged Stop Nut M6
    Elastic Flanged Stop Nut M6
  • 9
    224061121 Flat Washer
    Flat Washer
  • 10
    415059800 Ball Stud Lever
    Ball Stud Lever
  • 11
    503175800 Washer
    Washer
  • 12
    232501416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 13
    415053300 Ball Joint-Double
    Ball Joint-Double
  • 14
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 15
    506129400 Sliding Bar-Short
    Sliding Bar-Short
  • 16
    506129402 Sliding Bar-Long
    Sliding Bar-Long
  • 17
    572108500 Cushion
    Cushion
  • 18
    506138300 Bracket
    Bracket
  • 19
    207102544 Hex. Screw M10 x 25
    Hex. Screw M10 x 25
  • 20
    415048600 L.H. Ball Joint
    L.H. Ball Joint
  • 21
    207084044 Hex. Screw M8 x 40
    Hex. Screw M8 x 40
  • 22
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 23
    732610011 Jam Nut M10
    Jam Nut M10
  • 24
    506129600 Tie-Rod
    Tie-Rod
  • 25
    415012400 Ball Joint
    Ball Joint
  • 26
    732610010 Jam Nut M10
    Jam Nut M10
  • 27
    506151320 R.H. Steering Arm. GT 700. GT SE.
    R.H. Steering Arm. GT 700. GT SE.
  • 506151300 R.H. Steering Arm. GT SE Millennium Edition.
    R.H. Steering Arm. GT SE Millennium Edition.
  • 506151321 L.H. Steering Arm. GT 700. GT SE.
    L.H. Steering Arm. GT 700. GT SE.
  • 506151301 L.H. Steering Arm. GT SE Millennium Edition.
    L.H. Steering Arm. GT SE Millennium Edition.
  • 28
    205083544 Socket Head Screw M8 x 35
    Socket Head Screw M8 x 35
  • 29
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 30
    414768000 R.H. Ball Joint
    R.H. Ball Joint
  • 31
    506131200 Tie-Rod
    Tie-Rod
  • 32
    414768100 L.H. Ball Joint
    L.H. Ball Joint
  • 33
    506151169 Main Tube. GT 700.
    Main Tube. GT 700.
  • 506151165 Main Tube. GT SE. GT SE Millennium Edition.
    Main Tube. GT SE. GT SE Millennium Edition.
  • 34
    517126200 Retaining Support
    Retaining Support
  • 35
    572064400 Bushing (Lower Half)
    Bushing (Lower Half)
  • 36
    572064500 Bushing (Upper Half)
    Bushing (Upper Half)
  • 37
    506060600 > Clamp
    > Clamp
  • 38
    572067100 Half Bushing
    Half Bushing
  • 39
    506142000 Handle Bar
    Handle Bar
  • 40
    277000142 Steering Clamp. GT 700.
    Steering Clamp. GT 700.
  • 41
    207085544 Hex. Screw M8 x 55
    Hex. Screw M8 x 55
  • 42
    572100500 Handle Grip
    Handle Grip
  • 43
    570054100 Tie-Rod Cap
    Tie-Rod Cap
  • 44
    506151182 Steering Padding. GT 700.
    Steering Padding. GT 700.
  • 45
    572106200 Keyway. GT 700.
    Keyway. GT 700.
  • 46
    572081900 Handle Bar End
    Handle Bar End
  • 47
    219700417 Synthetic Grease, 400g
    Synthetic Grease, 400g
  • 48
    515175418 Heating Grip. GT 700.
    Heating Grip. GT 700.
  • 515175501 Heating Grip. GT SE. GT SE Millennium Edition.
    Heating Grip. GT SE. GT SE Millennium Edition.
  • 49
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 50
    515175253 Female Terminal. GT 700.
    Female Terminal. GT 700.
  • 51
    409204900 Female Connector Housing (4 Circuits). GT 700.
    Female Connector Housing (4 Circuits). GT 700.
  • 52
    409209300 Male Terminal Housing (4 Circuits)
    Male Terminal Housing (4 Circuits)
  • 53
    414491600 Steering Support
    Steering Support
  • 54
    506151196 Reinforcement
    Reinforcement
  • 55
    208652044 Screw M5 x 20. GT 700.
    Screw M5 x 20. GT 700.
  • 56
    233251414 Elastic Flanged Stop Nut M5. GT 700.
    Elastic Flanged Stop Nut M5. GT 700.
  • 57
    515175332 Vinyl
    Vinyl
  • 58
    515175507 Clip. GT SE. GT SE Millennium Edition.
    Clip. GT SE. GT SE Millennium Edition.
  • 59
    561503400 Male Terminal
    Male Terminal
  • 60
    506151156 Front Arm. GT SE. GT SE Millennium Edition.
    Front Arm. GT SE. GT SE Millennium Edition.
  • 61
    506151152 Rear Arm. GT SE. GT SE Millennium Edition.
    Rear Arm. GT SE. GT SE Millennium Edition.
  • 62
    506151147 Clamp. GT SE. GT SE Millennium Edition.
    Clamp. GT SE. GT SE Millennium Edition.
  • 63
    506151146 Spacer. GT SE. GT SE Millennium Edition.
    Spacer. GT SE. GT SE Millennium Edition.
  • 64
    506151153 Cushion. GT SE. GT SE Millennium Edition.
    Cushion. GT SE. GT SE Millennium Edition.
  • 65
    207688044 Hex. Flanged Screw M8 x 80. GT SE. GT SE Millennium Edition.
    Hex. Flanged Screw M8 x 80. GT SE. GT SE Millennium Edition.
  • 66
    506151162 Lock. GT SE. GT SE Millennium Edition.
    Lock. GT SE. GT SE Millennium Edition.
  • 67
    506151240 Plate. GT SE. GT SE Millennium Edition.
    Plate. GT SE. GT SE Millennium Edition.
  • 68
    207141044 Hex. Screw M4 x 10. GT SE. GT SE Millennium Edition.
    Hex. Screw M4 x 10. GT SE. GT SE Millennium Edition.
  • 69
    506151219 Spring. GT SE. GT SE Millennium Edition.
    Spring. GT SE. GT SE Millennium Edition.
  • 70
    414274500 Circlip. GT SE. GT SE Millennium Edition.
    Circlip. GT SE. GT SE Millennium Edition.
  • 71
    506151188 Handle. GT SE. GT SE Millennium Edition.
    Handle. GT SE. GT SE Millennium Edition.
  • 72
    205041284 Socket Head Screw M4 x 12. GT SE. GT SE Millennium Edition.
    Socket Head Screw M4 x 12. GT SE. GT SE Millennium Edition.
  • 73
    506151285 Foam. GT SE. GT SE Millennium Edition.
    Foam. GT SE. GT SE Millennium Edition.
  • 74
    506151286 Cover. GT SE. GT SE Millennium Edition.
    Cover. GT SE. GT SE Millennium Edition.
  • 506151302 Cover-Padding. GT SE. GT SE Millennium Edition.
    Cover-Padding. GT SE. GT SE Millennium Edition.
  • 75
    517302265 Washer. GT SE. GT SE Millennium Edition.
    Washer. GT SE. GT SE Millennium Edition.
  • 77
    515175505 Female Terminal Housing (18 Circuits). GT SE. GT SE Millennium Edition.
    Female Terminal Housing (18 Circuits). GT SE. GT SE Millennium Edition.
  • 78
    515175502 Male Terminal Housing (18 Circuits). GT SE. GT SE Millennium Edition.
    Male Terminal Housing (18 Circuits). GT SE. GT SE Millennium Edition.
  • 79
    515175232 Male Terminal. GT SE. GT SE Millennium Edition.
    Male Terminal. GT SE. GT SE Millennium Edition.
