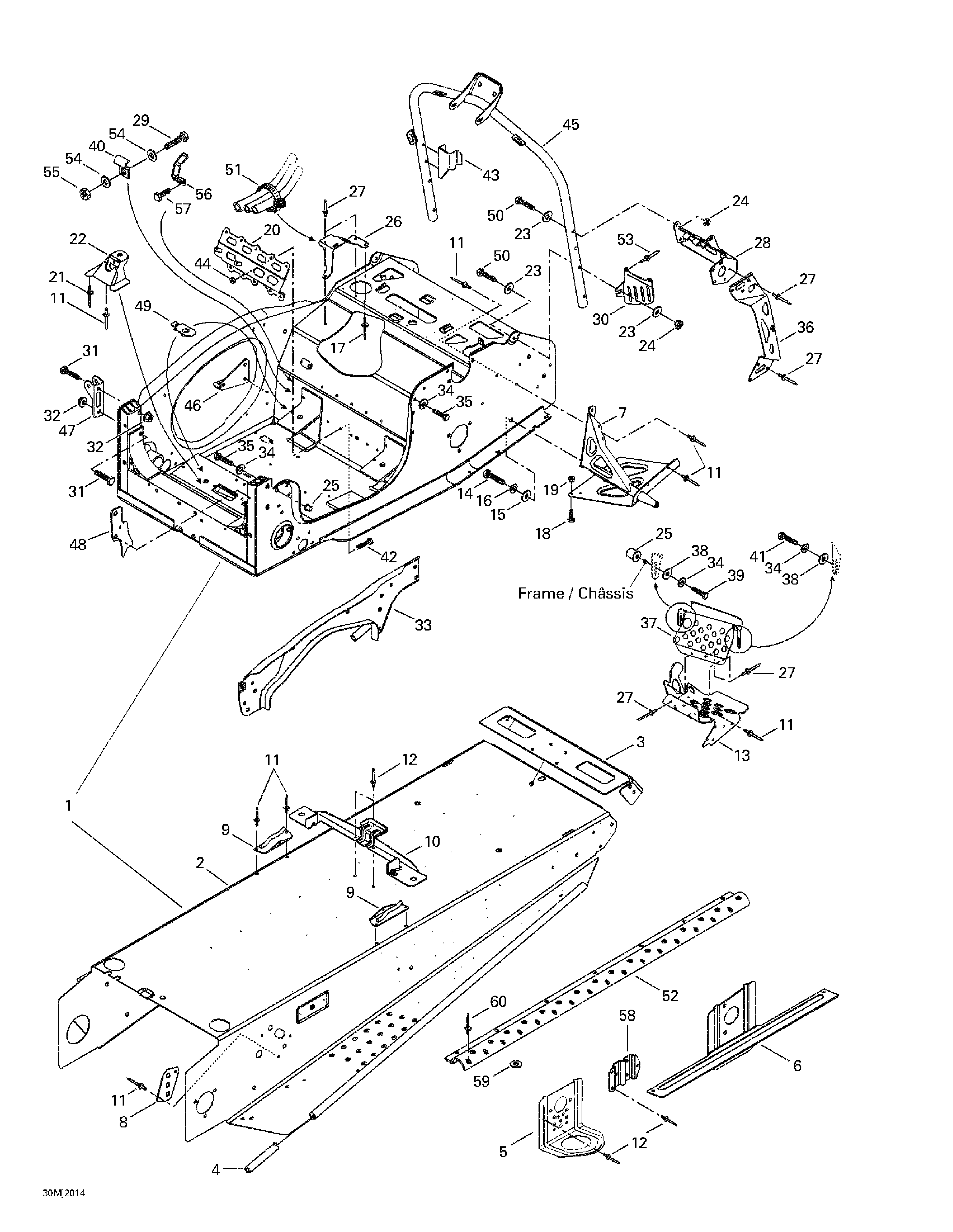

09- Frame And Accessories для BRP Ski-Doo Grand Touring 700 - 2000
-
№АртикулНазвание
-
1518322105 Frame Ass'y (Black). Includes 1 - 22. (Radiator and Radiator Protector Included) GT 700. GT SE Millennium Edition.Frame Ass'y (Black). Includes 1 - 22. (Radiator and Radiator Protector Included) GT 700. GT SE Millennium Edition.
-
518322104 Frame Ass'y (Red). (Radiator and Radiator Protector Included) GT SE.Frame Ass'y (Red). (Radiator and Radiator Protector Included) GT SE.
-
2518322110 Forming Frame. Includes 2 - 4. GT 700. GT SE Millennium Edition.Forming Frame. Includes 2 - 4. GT 700. GT SE Millennium Edition.
-
518322109 Forming Frame. GT SE.Forming Frame. GT SE.
-
3518321302 Cap-EndCap-End
-
4518304746 Footrest ReinforcementFootrest Reinforcement
-
5518321495 Front BracketFront Bracket
-
6518321515 R.H. Rear BracketR.H. Rear Bracket
-
518321516 L.H. Rear BracketL.H. Rear Bracket
-
7518317522 R.H. SupportR.H. Support
-
518317523 L.H. SupportL.H. Support
-
8518201321 Reinforcement PlateReinforcement Plate
-
9517266900 R.H. Tank BracketR.H. Tank Bracket
-
517267000 L.H. Tank BracketL.H. Tank Bracket
-
10518317506 Seat BracketSeat Bracket
-
11390402200 Pop RivetPop Rivet
-
12390402400 RivetRivet
-
13518321433 R.H. Front FootrestR.H. Front Footrest
-
518321434 L.H. Front FootrestL.H. Front Footrest
-
14207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
15234001410 Flat Washer 10 mmFlat Washer 10 mm
-
16234101402 Lock Washer 10 mmLock Washer 10 mm
-
17390911200 Rivet ChobertRivet Chobert
-
18207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
19233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
20518317510 Steering SupportSteering Support
-
21390910300 Rivet HenrobRivet Henrob
-
22518317509 Pivot Arm SupportPivot Arm Support
-
23224061121 Flat WasherFlat Washer
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25415107300 InsertInsert
-
26518317556 GuideGuide
-
27390402200 Pop RivetPop Rivet
-
28518321572 R.H. Upper BracketR.H. Upper Bracket
-
518317543 L.H. Upper BracketL.H. Upper Bracket
-
29207151444 Screw M5 x 14Screw M5 x 14
-
30518317572 Belt ProtectorBelt Protector
-
31207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
32233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
33518317515 StrapStrap
-
34234161471 Lock Washer M6Lock Washer M6
-
35207161844 Hex. Screw M6 x 18Hex. Screw M6 x 18
-
36518317520 R.H. Vertical BracketR.H. Vertical Bracket
-
518317521 L.H. Vertical BracketL.H. Vertical Bracket
-
37518317531 R.H. Holding ToeR.H. Holding Toe
-
518317532 L.H. Holding ToeL.H. Holding Toe
-
38224061201 Flat WasherFlat Washer
-
39207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
40415018200 ClipClip
-
41207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
42207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
43515175149 Cable SupportCable Support
-
44232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
45518321511 Handle Steering SupportHandle Steering Support
-
46518317553 Muffler SupportMuffler Support
-
47518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
48518321421 Heat ShieldHeat Shield
-
49518317507 PlatePlate
-
50207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
51408801900 Tridon Gear ClampTridon Gear Clamp
-
52518321978 Strip. GT SE Millennium Edition.Strip. GT SE Millennium Edition.
-
53390403600 Pop RivetPop Rivet
-
54391301600 WasherWasher
-
55232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
56515175422 ClipClip
-
57210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
58518317562 Protector Guide. GT SE. GT SE Millennium Edition.Protector Guide. GT SE. GT SE Millennium Edition.
-
59517124300 Washer. GT SE Millennium Edition.Washer. GT SE Millennium Edition.
-
60390402300 Rivet 3/16. GT SE Millennium Edition.Rivet 3/16. GT SE Millennium Edition.
