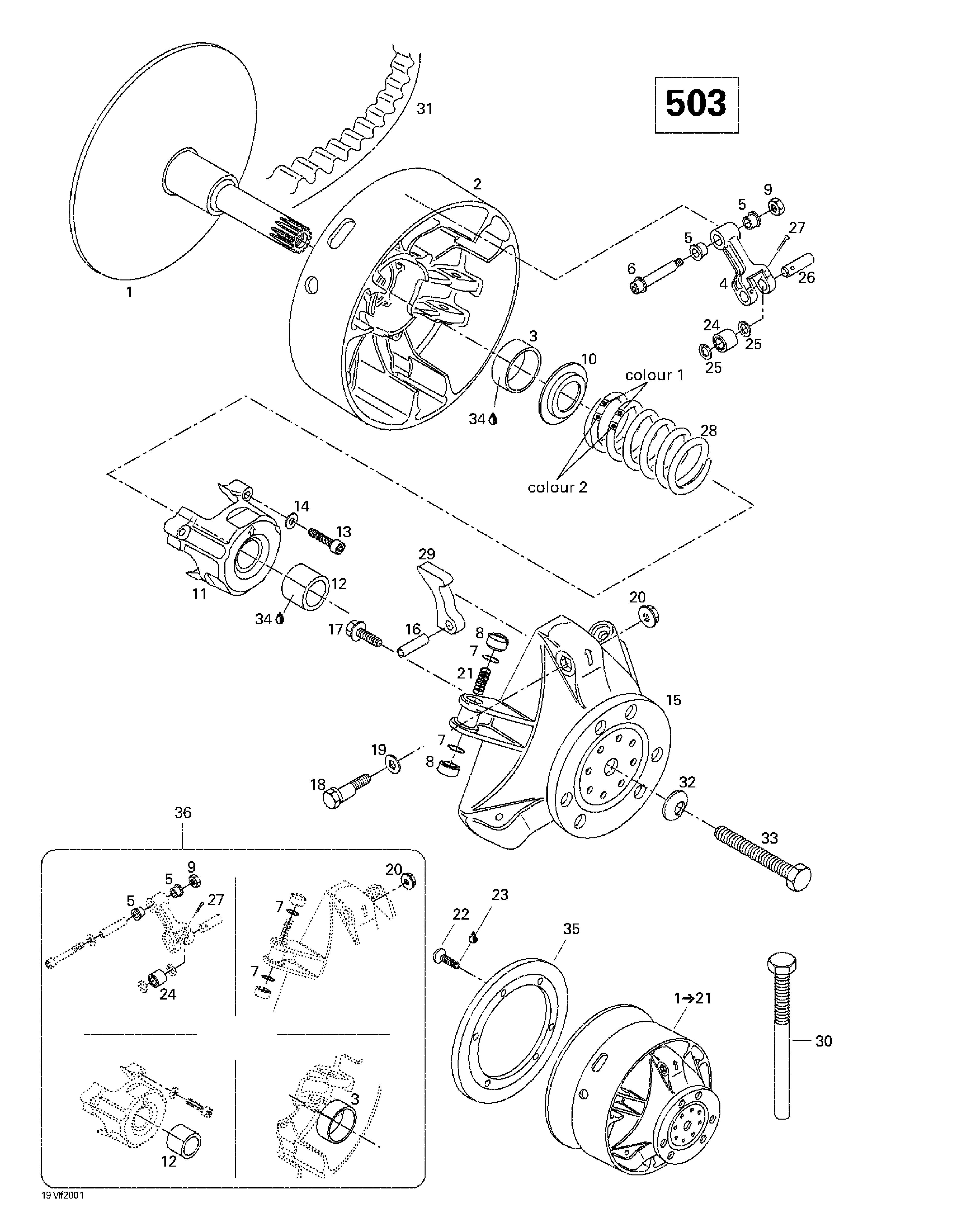

05- Drive Pulley (503) для BRP Ski-Doo Formula S - 2000

  • №
    Артикул
    Название
  • 1
    417222284 Drive Pulley Ass'y. Includes 1 - 21. Formula DLX 500.
    Drive Pulley Ass'y. Includes 1 - 21. Formula DLX 500.
  • 1
    417222071 Fixe Flange. Formula DLX 500.
    Fixe Flange. Formula DLX 500.
  • 2
    417222049 Sliding Flange Ass'y. Includes 2 - 3. Formula DLX 500.
    Sliding Flange Ass'y. Includes 2 - 3. Formula DLX 500.
  • 3
    417004201 Bushing Outer Half. Formula DLX 500.
    Bushing Outer Half. Formula DLX 500.
  • 4
    417003801 Lever Ass'y. Includes 4 - 5. Formula DLX 500.
    Lever Ass'y. Includes 4 - 5. Formula DLX 500.
  • 5
    417004305 Flange Bushing. Formula DLX 500.
    Flange Bushing. Formula DLX 500.
  • 6
    417004800 Fitting Screw. Formula DLX 500.
    Fitting Screw. Formula DLX 500.
  • 7
    732401030 O-Ring. Formula DLX 500.
    O-Ring. Formula DLX 500.
  • 8
    417005800 Slider Shoe. Formula DLX 500.
    Slider Shoe. Formula DLX 500.
  • 9
    232561414 Elastic Stop Nut M6. Formula DLX 500.
    Elastic Stop Nut M6. Formula DLX 500.
  • 10
    417222044 Spring Seat. Formula DLX 500.
    Spring Seat. Formula DLX 500.
  • 11
    417222157 Spring Cover Ass'y. Includes 11 - 12. Formula DLX 500.
    Spring Cover Ass'y. Includes 11 - 12. Formula DLX 500.
  • 12
    417004501 Bushing Spring Cover. Formula DLX 500.
    Bushing Spring Cover. Formula DLX 500.
  • 13
    205064086 Socket Head Screw M6 x 40. Formula DLX 500.
    Socket Head Screw M6 x 40. Formula DLX 500.
  • 14
    420245370 Friction-Washer 6 mm. Formula DLX 500.
    Friction-Washer 6 mm. Formula DLX 500.
  • 15
    417222081 Governor Cup. Formula DLX 500.
    Governor Cup. Formula DLX 500.
  • 16
    732804009 Dowel Tube M8 x 24. Formula DLX 500.
    Dowel Tube M8 x 24. Formula DLX 500.
  • 17
    210361890 Hex. Locking Screw M6 x 18. Formula DLX 500.
    Hex. Locking Screw M6 x 18. Formula DLX 500.
  • 18
    417005500 Calibration Screw. Formula DLX 500.
    Calibration Screw. Formula DLX 500.
  • 19
    417005600 Washer. Formula DLX 500.
    Washer. Formula DLX 500.
  • 20
    233061414 Elastic Flanged Stop Nut M6. Formula DLX 500.
    Elastic Flanged Stop Nut M6. Formula DLX 500.
  • 21
    417005700 Spring. Formula DLX 500.
    Spring. Formula DLX 500.
  • 22
    236281684 Screw M8 x 16. Formula DLX 500.
    Screw M8 x 16. Formula DLX 500.
  • 23
    293800005 Loctite 271, 10ml. Formula DLX 500.
    Loctite 271, 10ml. Formula DLX 500.
  • 24
    417003900 Roller. Formula DLX 500.
    Roller. Formula DLX 500.
  • 25
    417004302 Thrust Washer. Formula DLX 500.
    Thrust Washer. Formula DLX 500.
  • 26
    417004309 Pin. Formula DLX 500.
    Pin. Formula DLX 500.
  • 27
    732958001 Cotter Pin. Formula DLX 500.
    Cotter Pin. Formula DLX 500.
  • 28
    414993000 Spring (yellow/Red). Formula DLX 500.
    Spring (yellow/Red). Formula DLX 500.
  • 29
    417005291X Ramp 291 X. Formula DLX 500.
    Ramp 291 X. Formula DLX 500.
  • 30
    529007900 Puller Inner Half. Formula DLX 500.
    Puller Inner Half. Formula DLX 500.
  • 31
    415060600 Drive Belt. Formula DLX 500.
    Drive Belt. Formula DLX 500.
  • 32
    234221414 Conical Spring Washer. Formula DLX 500.
    Conical Spring Washer. Formula DLX 500.
  • 33
    417113800 Screw. Formula DLX 500.
    Screw. Formula DLX 500.
  • 34
    413703100 Loctite 609, 10 c.c. Formula DLX 500.
    Loctite 609, 10 c.c. Formula DLX 500.
  • 35
    417009400 Ring Gear (86 Tooth). Formula DLX 500.
    Ring Gear (86 Tooth). Formula DLX 500.
  • 36
    417006100 Clutch Repair Kit. Formula DLX 500.
    Clutch Repair Kit. Formula DLX 500.
