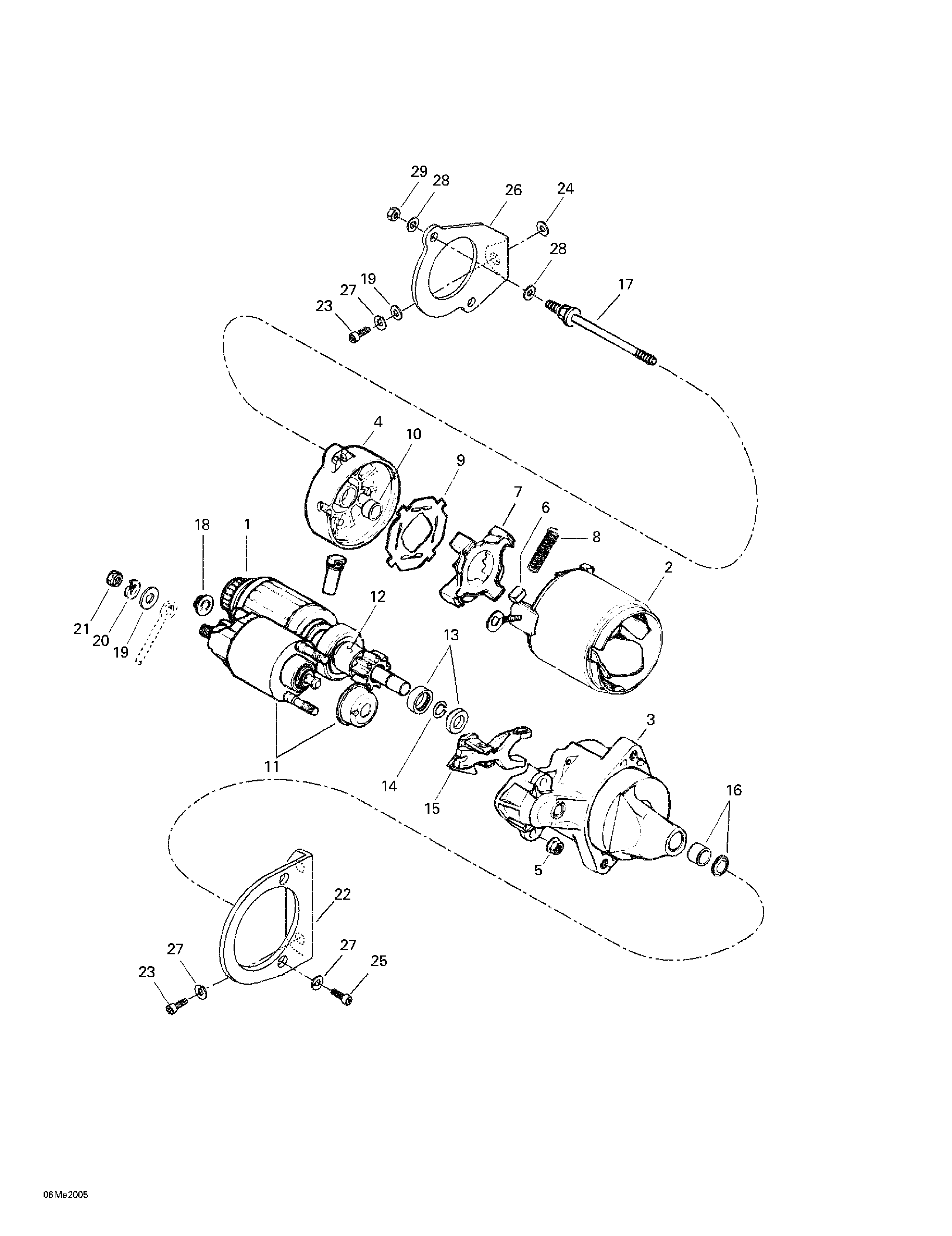

04- Electric Starter для BRP Ski-Doo Formula 500 LC - 2000

-
№АртикулНазвание
-
1410212400 Electric Starter. Includes 1 - 18. Formula DLX 500 LC.Electric Starter. Includes 1 - 18. Formula DLX 500 LC.
-
1410210200 Armature Ass'y. Formula DLX 500 LC.Armature Ass'y. Formula DLX 500 LC.
-
2410209500 Housing Starter. Formula DLX 500 LC.Housing Starter. Formula DLX 500 LC.
-
3410210800 Housing. Formula DLX 500 LC.Housing. Formula DLX 500 LC.
-
5410211200 Nut. Formula DLX 500 LC.Nut. Formula DLX 500 LC.
-
6410209600 Brush. Formula DLX 500 LC.Brush. Formula DLX 500 LC.
-
7410209700 Brush Holder. Formula DLX 500 LC.Brush Holder. Formula DLX 500 LC.
-
8410209800 Spring. Formula DLX 500 LC.Spring. Formula DLX 500 LC.
-
9410209900 Insulator. Formula DLX 500 LC.Insulator. Formula DLX 500 LC.
-
10410210100 Bushing Brass. Formula DLX 500 LC.Bushing Brass. Formula DLX 500 LC.
-
11410210300 Switch Ass'y. Formula DLX 500 LC.Switch Ass'y. Formula DLX 500 LC.
-
12410210400 Clutch. Formula DLX 500 LC.Clutch. Formula DLX 500 LC.
-
13410212500 Nut. Formula DLX 500 LC.Nut. Formula DLX 500 LC.
-
14410212600 Circlip. Formula DLX 500 LC.Circlip. Formula DLX 500 LC.
-
15410210700 Lever. Formula DLX 500 LC.Lever. Formula DLX 500 LC.
-
16410210900 Bushing Brass. Formula DLX 500 LC.Bushing Brass. Formula DLX 500 LC.
-
17410212000 Bolt. Formula DLX 500 LC.Bolt. Formula DLX 500 LC.
-
18410211100 Nut. Formula DLX 500 LC.Nut. Formula DLX 500 LC.
-
19234081410 Flat Washer 8 mm. Formula DLX 500 LC.Flat Washer 8 mm. Formula DLX 500 LC.
-
20420945752 Lock Washer. Formula DLX 500 LC.Lock Washer. Formula DLX 500 LC.
-
21232081414 Nut M8. Formula DLX 500 LC.Nut M8. Formula DLX 500 LC.
-
22420853730 Starter Bracket (PTO). Formula DLX 500 LC.Starter Bracket (PTO). Formula DLX 500 LC.
-
23205082044 Socket Head Screw M8 x 20. Formula DLX 500 LC.Socket Head Screw M8 x 20. Formula DLX 500 LC.
-
24503007900 Hard Washer. Formula DLX 500 LC.Hard Washer. Formula DLX 500 LC.
-
25205082544 Socket Head Screw M8 x 25. Formula DLX 500 LC.Socket Head Screw M8 x 25. Formula DLX 500 LC.
-
26420953011 Starter Support (MAG). Formula DLX 500 LC.Starter Support (MAG). Formula DLX 500 LC.
-
27234181401 Lock Washer 8 mm. Formula DLX 500 LC.Lock Washer 8 mm. Formula DLX 500 LC.
-
28391301700 Washer. Formula DLX 500 LC.Washer. Formula DLX 500 LC.
-
29232551414 Elastic Stop Nut M5. Formula DLX 500 LC.Elastic Stop Nut M5. Formula DLX 500 LC.
