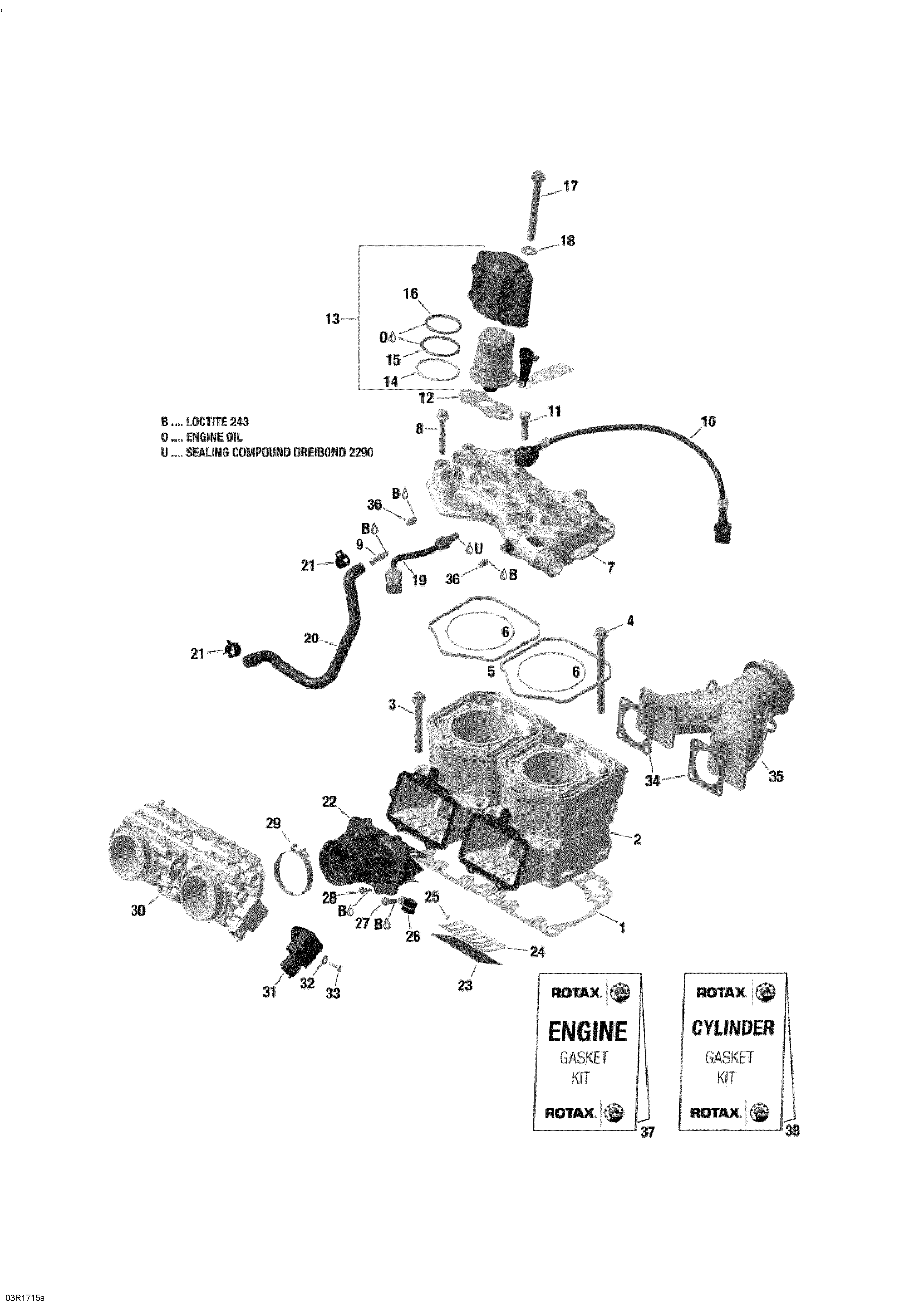

01- Cylinder And Cylinder Head - 600 E-TEC для BRP Lynx 001 - 69 YETI 600 E-TEC - 2019

  • №
    Артикул
    Название
  • 1
    420431160 Double Gasket 0.5 mm. Included In Gasket Kit
    Double Gasket 0.5 mm. Included In Gasket Kit
  • 1
    420431161 Double Gasket 0.6 mm. Included In Gasket Kit
    Double Gasket 0.6 mm. Included In Gasket Kit
  • 1
    420431162 Double Gasket 0.7 mm. Included In Gasket Kit
    Double Gasket 0.7 mm. Included In Gasket Kit
  • 1
    420431163 Double Gasket 0.8 mm. Included In Gasket Kit
    Double Gasket 0.8 mm. Included In Gasket Kit
  • 2
    420623263 Cylinder
    Cylinder
  • 3
    420640524 Hex. Collar Screw. Tightening Torque 38-42 Nm
    Hex. Collar Screw. Tightening Torque 38-42 Nm
  • 4
    420640534 Hex. Collar Screw. Tightening Torque 38-42 Nm
    Hex. Collar Screw. Tightening Torque 38-42 Nm
  • 5
    420931590 Rubber Ring. Included In Gasket Kit
    Rubber Ring. Included In Gasket Kit
  • 6
    293300026 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 7
    420623299 Head Cylinder Cover
    Head Cylinder Cover
  • 8
    420941627 Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm
    Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm
  • 9
    420924724 Hose Nipple. Tightening Torque 4-5 Nm
    Hose Nipple. Tightening Torque 4-5 Nm
  • 10
    270000484 Knock Sensor
    Knock Sensor
  • 11
    207083544 Hex. Screw M8 x 35. Tightening Torque 22-24 Nm
    Hex. Screw M8 x 35. Tightening Torque 22-24 Nm
  • 12
    420430930 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 13
    512061053 Fuel Injector Ass'y. Includes 13 To 16
    Fuel Injector Ass'y. Includes 13 To 16
  • 14
    415129497 Crush Ring
    Crush Ring
  • 15
    415129498 O-Ring
    O-Ring
  • 16
    415129499 O-Ring
    O-Ring
  • 17
    420441187 Flange Torx Screw M10 x 90
    Flange Torx Screw M10 x 90
  • 18
    420927410 Washer
    Washer
  • 19
    515177813 Temperature Sensor
    Temperature Sensor
  • 19
    515175670 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 19
    278000632 Female Terminal
    Female Terminal
  • 20
    420460867 Molded Hose
    Molded Hose
  • 21
    420853511 Clamp
    Clamp
  • 22
    420667532 Socket Carburetor Ass'y. Includes 22 To 25
    Socket Carburetor Ass'y. Includes 22 To 25
  • 23
    420924680 Reed Pedal
    Reed Pedal
  • 24
    420924695 Reed Pedal Stop
    Reed Pedal Stop
  • 25
    420941215 Phillips Screw M3 x 5
    Phillips Screw M3 x 5
  • 26
    420851250 Clamp
    Clamp
  • 27
    420841550 Tapping Screw M5 x 22. Tightening Torque 5-6 Nm
    Tapping Screw M5 x 22. Tightening Torque 5-6 Nm
  • 28
    420941925 Tapping Screw M5 x 16. Tightening Torque 5-6 Nm
    Tapping Screw M5 x 16. Tightening Torque 5-6 Nm
  • 29
    420851065 Clamp
    Clamp
  • 30
    420889201 Throttle Body
    Throttle Body
  • 31
    420866120 Position Sensor
    Position Sensor
  • 32
    234041600 Flat Washer
    Flat Washer
  • 33
    208641660 Pan HD Screw M4 x 16
    Pan HD Screw M4 x 16
  • 34
    420850552 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 35
    420673420 Exhaust Manifold
    Exhaust Manifold
  • 36
    420924724 Hose Nipple. Tightening Torque 4-5 Nm
    Hose Nipple. Tightening Torque 4-5 Nm
  • 37
    420889924 Engine Gasket Set
    Engine Gasket Set
  • 38
    420889928 Cylinder Gasket Set
    Cylinder Gasket Set
