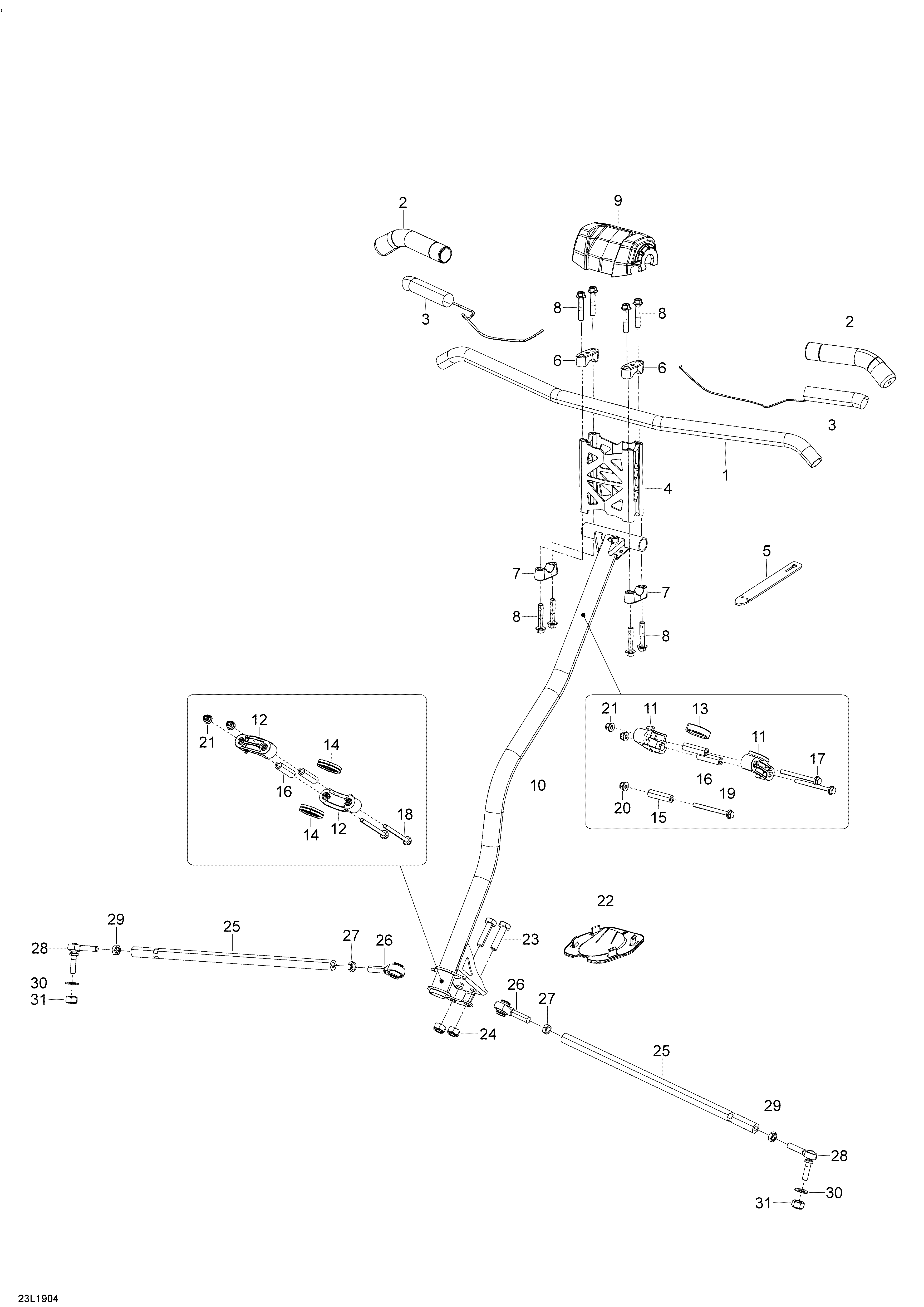

07- Steering XTRIM - 600 ACE для BRP Lynx 002 - XTRIM 600 ACE - 2019
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film, 25WHeated Film, 25W
-
4506152617 Black Handlebar ExtensionBlack Handlebar Extension
-
6506152751 Steering SupportSteering Support
-
7506152751 Steering SupportSteering Support
-
8250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
9506152553 Steering PadSteering Pad
-
10506152964 Steering ColumnSteering Column
-
11506152508 Upper Half-HousingUpper Half-Housing
-
12506152217 Lower Half-HousingLower Half-Housing
-
13506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
14506152518 Lower Vibration RingLower Vibration Ring
-
15506152297 Housing BushingHousing Bushing
-
16506152297 Housing BushingHousing Bushing
-
17207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
18207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
19207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
20233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
21233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
22506152163 PlatePlate
-
23207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
24232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25506152498 Tie-RodTie-Rod
-
26506152081 LH Thread Ball JointLH Thread Ball Joint
-
27250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
28506152684 RH Thread Ball JointRH Thread Ball Joint
-
29732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
30506152582 WasherWasher
-
31233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
