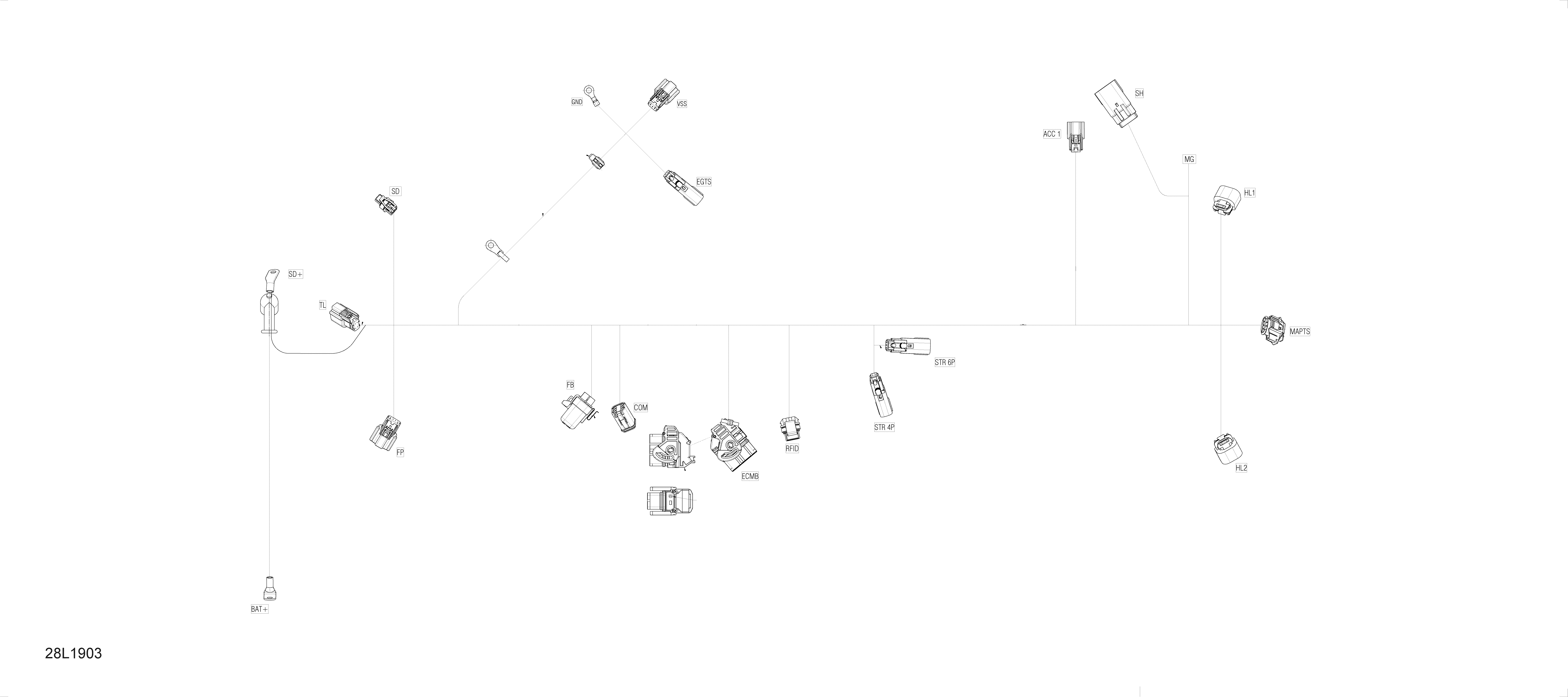

10- Electrical Harness 515178547 - Electric Start для BRP Lynx 001 - RAVE 600R E-TEC - 2019
-
№АртикулНазвание
-
3000515178547 Chassis Wiring HarnessChassis Wiring Harness
-
ACC1278002853 2 Circuits Female Housing2 Circuits Female Housing
-
COM710002706 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
COM710002705 LockLock
-
COM710005438 Female TerminalFemale Terminal
-
COM710005439 Female TerminalFemale Terminal
-
ECMB710001591 Cover, 48 positionsCover, 48 positions
-
ECMB515178168 48 Circuits Female Housing48 Circuits Female Housing
-
ECMB710001592 PlugPlug
-
ECMB710001727 Female TerminalFemale Terminal
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001590 Female TerminalFemale Terminal
-
EGTS515178020 2 Circuits Male Housing2 Circuits Male Housing
-
EGTS515178013 Male TerminalMale Terminal
-
F1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
F2278002389 Little FuseLittle Fuse
-
F3710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
F4710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
FB710000992 ClipClip
-
FB515178132 Fuse Box CoverFuse Box Cover
-
FB515178195 DecalDecal
-
FB515178194 FoamFoam
-
FB515178001 Fuse BoxFuse Box
-
FB278000218 Wire SealWire Seal
-
FB710000048 Wire SealWire Seal
-
FB515178139 Female TerminalFemale Terminal
-
FP515178474 Female HousingFemale Housing
-
GND278001392 Open BarrelOpen Barrel
-
HL1515178006 Female HousingFemale Housing
-
HL1710001332 Seal WireSeal Wire
-
HL1710001228 TerminalTerminal
-
HL2515178006 Female HousingFemale Housing
-
HL2710001332 Seal WireSeal Wire
-
HL2710001228 TerminalTerminal
-
MAPTS515176410 Male ConnectorMale Connector
-
MAPTS415128501 SealSeal
-
MAPTS710001137 Female TerminalFemale Terminal
-
MG515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
MG515175802 Retainer BlockRetainer Block
-
MG515175812 PlugPlug
-
MG710000399 Female HousingFemale Housing
-
MG515175803 Wire SealWire Seal
-
MG515175806 Female TerminalFemale Terminal
-
MG710001131 Female TerminalFemale Terminal
-
RFID710001161 HousingHousing
-
RFID710001163 Wire SealWire Seal
-
RFID710001164 Female TerminalFemale Terminal
-
SD515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SD710001332 Seal WireSeal Wire
-
SD710000925 TerminalTerminal
-
SD+515177214 TerminalTerminal
-
SH515178015 12 Circuits Male Housing12 Circuits Male Housing
-
SH515178013 Male TerminalMale Terminal
-
STR4P515178347 HousingHousing
-
STR4P515178013 Male TerminalMale Terminal
-
STR6P278002906 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
STR6P515178013 Male TerminalMale Terminal
-
TL515178346 HousingHousing
-
VSS515178024 HousingHousing
