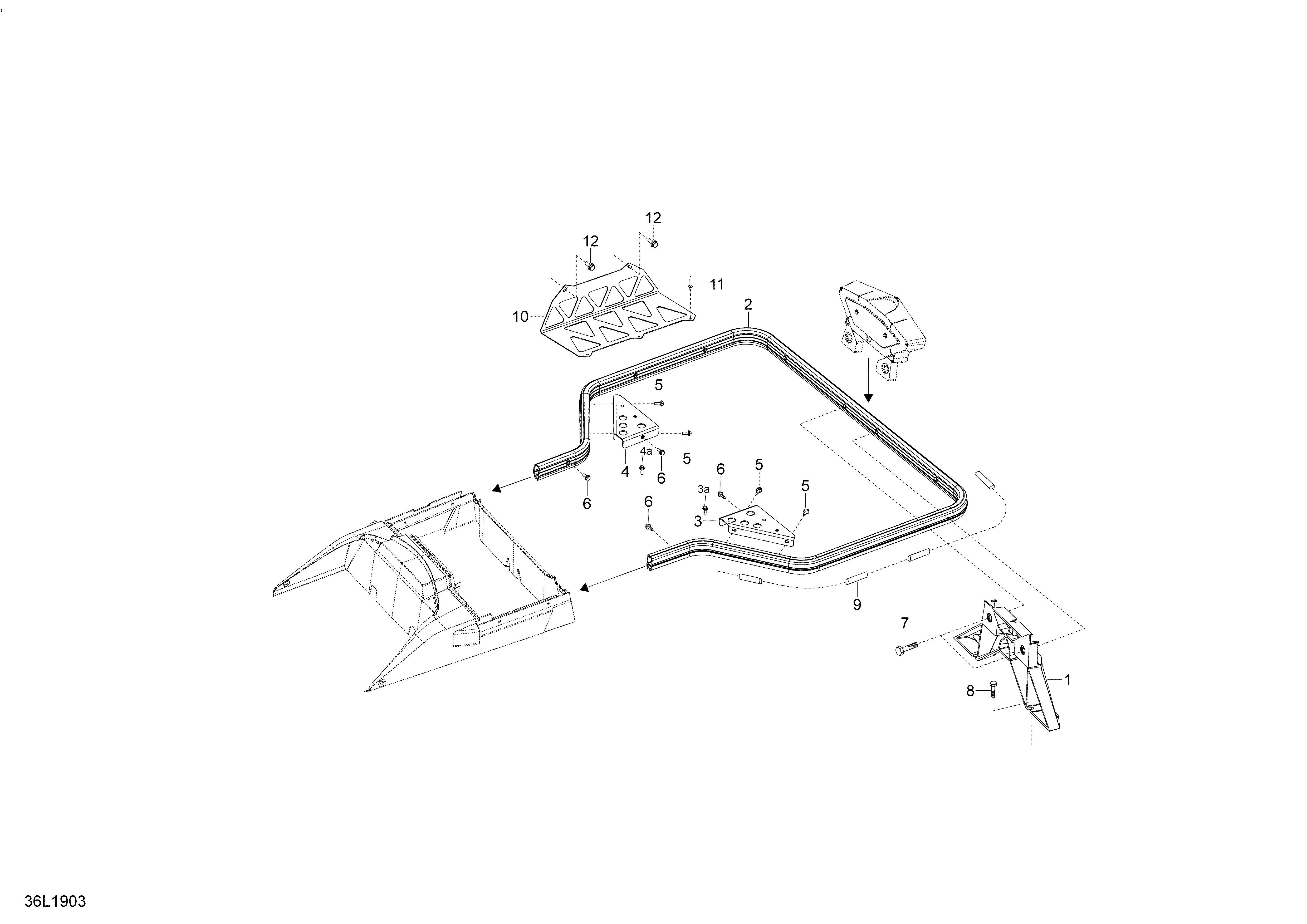

09- Luggage Rack - 69 Ranger - 1200 4-TEC для BRP Lynx 003 - 69 Ranger 1200 4-TEC - 2019
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000800 Rack BarRack Bar
-
3511000803 Rack Bar Fastening Plate Lh. Includes 3 to 3aRack Bar Fastening Plate Lh. Includes 3 to 3a
-
3a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
4511000804 Rack Bar Fastening Plate Rh. Includes 4 to 4aRack Bar Fastening Plate Rh. Includes 4 to 4a
-
4a605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
5207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
6207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
7207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
8207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
9511000657 Support HoseSupport Hose
-
10511000857 Alpine Storage PlateAlpine Storage Plate
-
11390909200 Avex RivetAvex Rivet
-
12207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
