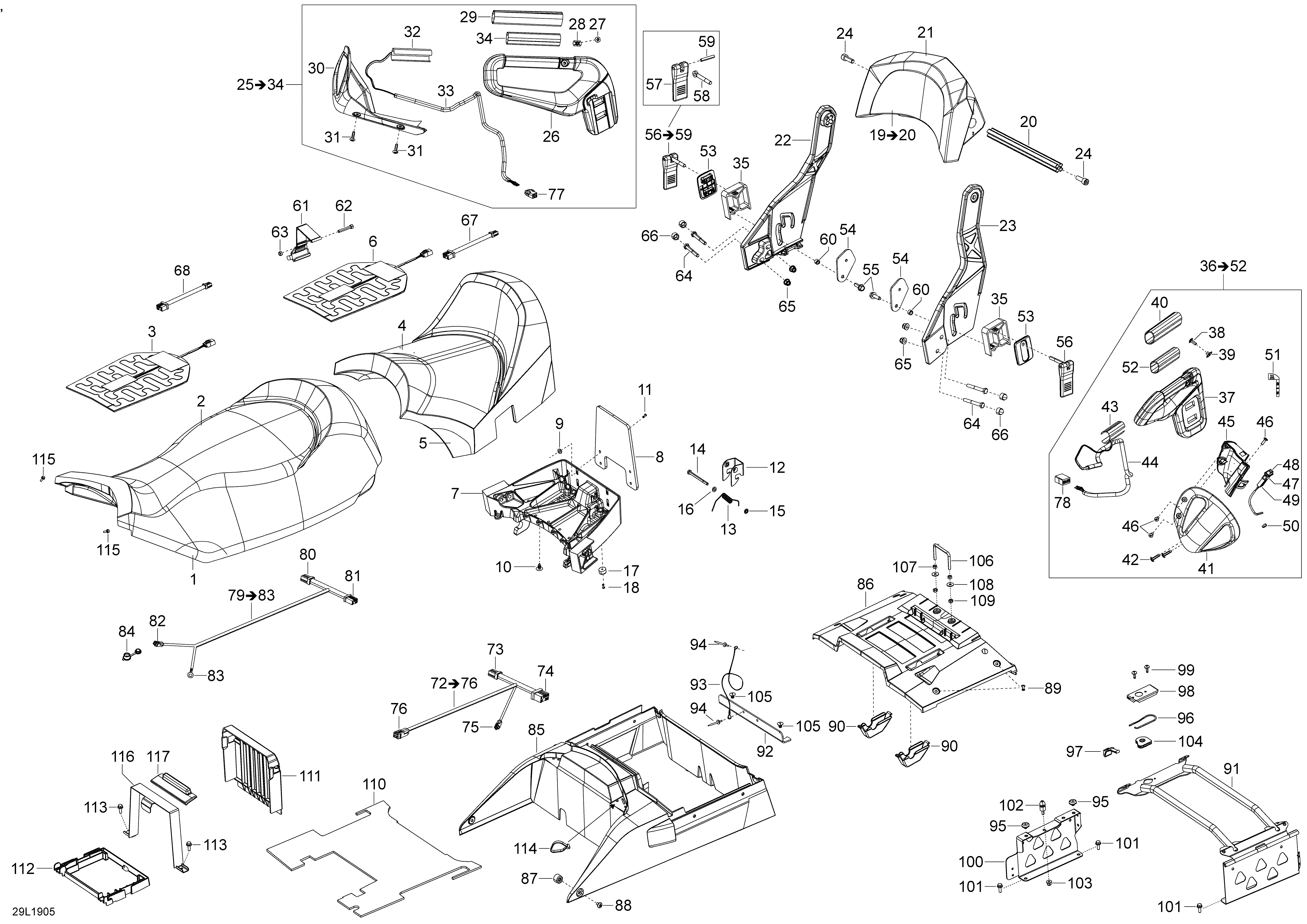

09- Seat 69 Ranger - 900 ACE для BRP Lynx 002 - 69 Ranger 900 ACE - 2019

№

Артикул

Название
1

510006315 Front Seat Foam

Front Seat Foam
2

510006037 Front Cover. Package Standard

Front Cover. Package Standard
2

510006771 Front Seat Cover. Package SC

Front Seat Cover. Package SC
3

515178222 Heated Film

Heated Film
5

510006094 Rear Seat Foam. Package SC

Rear Seat Foam. Package SC
6

515178222 Heated Film. Package SC

Heated Film. Package SC
7

510004816 Seat Base. Package SC

Seat Base. Package SC
8

510005330 Backrest Plate. Package SC

Backrest Plate. Package SC
9

234062410 Flat Washer 6 mm. Package SC

Flat Washer 6 mm. Package SC
10

414644300 Dart. Package SC

Dart. Package SC
11

293150067 Rivet. Package SC

Rivet. Package SC
12

708000144 Latch, Black. Package SC

Latch, Black. Package SC
13

708000369 Spring. Package SC

Spring. Package SC
14

207068044 Screw Hex. M6 X 80. Package SC

Screw Hex. M6 X 80. Package SC
15

732610072 Push Nut. Package SC

Push Nut. Package SC
16

234061410 Flat Washer 6 mm. Package SC

Flat Washer 6 mm. Package SC
17

510006005 Stopper Rubber. Package SC

Stopper Rubber. Package SC
18

293150015 Pop Rivet 1/8”. Package SC

Pop Rivet 1/8”. Package SC
19

510006205 Backrest Foam. Package SC

Backrest Foam. Package SC
21

510006047 Cover Backrest BL/GR XU ECS 16. Package SC

Cover Backrest BL/GR XU ECS 16. Package SC
22

510005420 RH Arm. Package SC

RH Arm. Package SC
23

510005419 LH Arm. Package SC

LH Arm. Package SC
24

250000553 Forming Screw M10 x 25. Package SC

Forming Screw M10 x 25. Package SC
25

510006738 RH Handle Ass'y. Package SC. Includes 25 to 34

RH Handle Ass'y. Package SC. Includes 25 to 34
27

250000721 Torx Screw. Package SC

Torx Screw. Package SC
28

293100003 Nut Welded, M6. Package SC

Nut Welded, M6. Package SC
29

510004449 Handle Grip. Package SC

Handle Grip. Package SC
30

510004415 RH Deflector. Package SC

RH Deflector. Package SC
31

250000961 Screw 25MM. Package SC

Screw 25MM. Package SC
32

515176393 Heater. Package SC

Heater. Package SC
33

515175506 Tubing. Package SC

Tubing. Package SC
34

510005863 Handle Reinforcement. Package SC

Handle Reinforcement. Package SC
35

510004939 Adapter. Package SC

Adapter. Package SC
37

510006737 LH Handle Ass'y. Package SC. Includes 37 to 52

LH Handle Ass'y. Package SC. Includes 37 to 52
38

250000721 Torx Screw. Package SC

Torx Screw. Package SC
39

293100003 Nut Welded, M6. Package SC

Nut Welded, M6. Package SC
40

510004449 Handle Grip. Package SC

Handle Grip. Package SC
41

510004416 LH Deflector. Package SC

LH Deflector. Package SC
42

250000961 Screw 25MM. Package SC

Screw 25MM. Package SC
43

515176393 Heater. Package SC

Heater. Package SC
44

515175506 Tubing. Package SC

Tubing. Package SC
45

510004566 Switch Housing. Package SC

Switch Housing. Package SC
46

250000720 Torx Screw K50 X 16. Package SC

Torx Screw K50 X 16. Package SC
47

510004413 Rocker Switch. Package SC

Rocker Switch. Package SC
48

510004414 Switch Protector. Package SC

Switch Protector. Package SC
49

515176241 LH Handle Harness. Package SC

LH Handle Harness. Package SC
50

414115200 Tie-Rap 180 mm. Package SC

Tie-Rap 180 mm. Package SC
51

516002835 Handle Heater Decal. Package SC

Handle Heater Decal. Package SC
52

510005863 Handle Reinforcement. Package SC

Handle Reinforcement. Package SC
53

510006602 Passenger Handle Trim. Package SC

Passenger Handle Trim. Package SC
54

510004990 Counter Plate. Package SC

Counter Plate. Package SC
55

250000376 Hex Forming Screw DIN.7500D. Package SC

Hex Forming Screw DIN.7500D. Package SC
56

510004992 Lock Ass'y. Package SC. Includes 56 to 59

Lock Ass'y. Package SC. Includes 56 to 59
57

5243419 Lock. Package SC

Lock. Package SC
58

510004993 Screw. Package SC

Screw. Package SC
59

414821400 Pin. Package SC

Pin. Package SC
60

510005507 Sleeve. Package SC

Sleeve. Package SC
61

510005139 Security Lock. Package SC

Security Lock. Package SC
62

205065044 Socket Head Screw M6 X 50. Package SC

Socket Head Screw M6 X 50. Package SC
63

232561414 Elastic Stop Nut M6. Package SC

Elastic Stop Nut M6. Package SC
64

207686044 Hex. Flanged Screw M8 x 60. Package SC

Hex. Flanged Screw M8 x 60. Package SC
65

233281414 Hex. Flanged Elastic Nut M8. Package SC

Hex. Flanged Elastic Nut M8. Package SC
66

28056 Cover. Package SC

Cover. Package SC
76

515177084 Seat Harness. Package SC

Seat Harness. Package SC
77

515175494 Male Housing, 3 Circuits. Package SC

Male Housing, 3 Circuits. Package SC
78

515175817 Male Terminal Housing, 8 Circuits. Package SC

Male Terminal Housing, 8 Circuits. Package SC
79

515177210 Seat Harness. Package SC

Seat Harness. Package SC
84

572103300 Cap. Package SC

Cap. Package SC
85

510006243 Storage Box

Storage Box
86

510006244 Storage Box Cover

Storage Box Cover
87

510005147 Bushing

Bushing
88

250000675 Torx Truss Screw M6 x 12

Torx Truss Screw M6 x 12
89

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
90

510004999 Cover

Cover
91

510005714 Lock tube

Lock tube
92

510005156 Cable Support Plate

Cable Support Plate
93

293750070 Seat Retainer Cable

Seat Retainer Cable
94

293150163 Rivet Hucklok

Rivet Hucklok
95

605452114 Plug

Plug
96

269700017 Latch Spring

Latch Spring
97

510005072 Puller

Puller
98

510005698 Lock Pin Cover

Lock Pin Cover
99

250000676 Forming Screw M5 x 16

Forming Screw M5 x 16
100

510005845 Locking Plate

Locking Plate
101

207561644 Hex.Fla. Screw M6 X 16, Scotch Grip

Hex.Fla. Screw M6 X 16, Scotch Grip
102

605452035 Lock Pin

Lock Pin
103

233261416 Elastic Flanged Nut M6 X 1.0

Elastic Flanged Nut M6 X 1.0
104

510005044 Lock Pin Guide

Lock Pin Guide
105

250000675 Torx Truss Screw M6 x 12

Torx Truss Screw M6 x 12
106

510004876 Fastener Pin

Fastener Pin
107

250000135 Hex. Nut M6

Hex. Nut M6
108

20117 Washer

Washer
109

232561414 Elastic Stop Nut M6

Elastic Stop Nut M6
110

510005043 Foam

Foam
111

510005079 Battery Cover

Battery Cover
112

515176804 Battery Support

Battery Support
113

207561644 Hex.Fla. Screw M6 X 16, Scotch Grip

Hex.Fla. Screw M6 X 16, Scotch Grip
114

605627000 Tie-Rap

Tie-Rap
115

250000676 Forming Screw M5 x 16

Forming Screw M5 x 16
116

510005143 Battery Strap

Battery Strap
117

510005146 Strap Cover

Strap Cover
120

572051500 Cap

Cap
