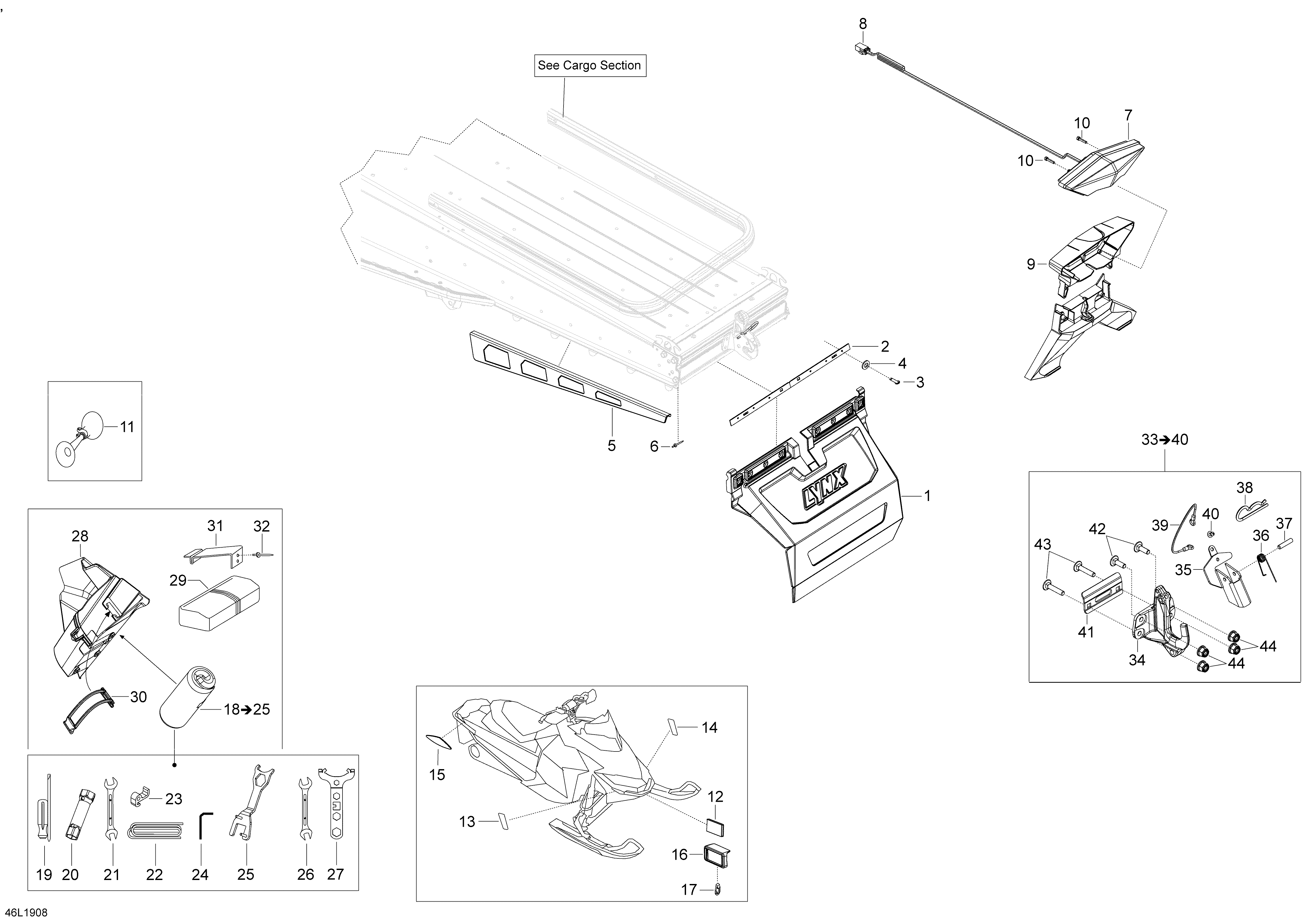

09- Utilities 69 Ranger - 800R E-TEC для BRP Lynx 001 - 69 Ranger 800R E-TEC - 2019
-
№АртикулНазвание
-
1520001408 Black, Snow Guard LongBlack, Snow Guard Long
-
2520001022 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet HucklokRivet Hucklok
-
7520000692 Rear LightRear Light
-
9511000763 Rear Light CoverRear Light Cover
-
1040611 ScrewScrew
-
11549011291 HornHorn
-
1221118 Reflector (Bright)Reflector (Bright)
-
13520001600 Yellow RH ReflectorYellow RH Reflector
-
14520001601 Yellow LH ReflectorYellow LH Reflector
-
15705002423 Lateral Reflector, AmberLateral Reflector, Amber
-
16520000871 Deep Black, Reflector SupportDeep Black, Reflector Support
-
1727120 Tie RapTie Rap
-
18529000077 Tool KitTool Kit
-
2634017 WrenchWrench
-
27520001442 WrenchWrench
-
28520000894 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
33520001774 Hitch Ass'y. Includes 33 to 40,2Hitch Ass'y. Includes 33 to 40,2
-
35520001775 Locking PlateLocking Plate
-
37520001810 Clevis PinClevis Pin
-
3841029 Hair pinHair pin
-
40390909100 Avex RivetAvex Rivet
-
40.1520001811 Washer. Not ShownWasher. Not Shown
-
40.2520001812 Cotter Pin. Not ShownCotter Pin. Not Shown
-
41520000727 PlatePlate
-
42207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
43207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
45520001766 Support Tape. Not ShownSupport Tape. Not Shown
