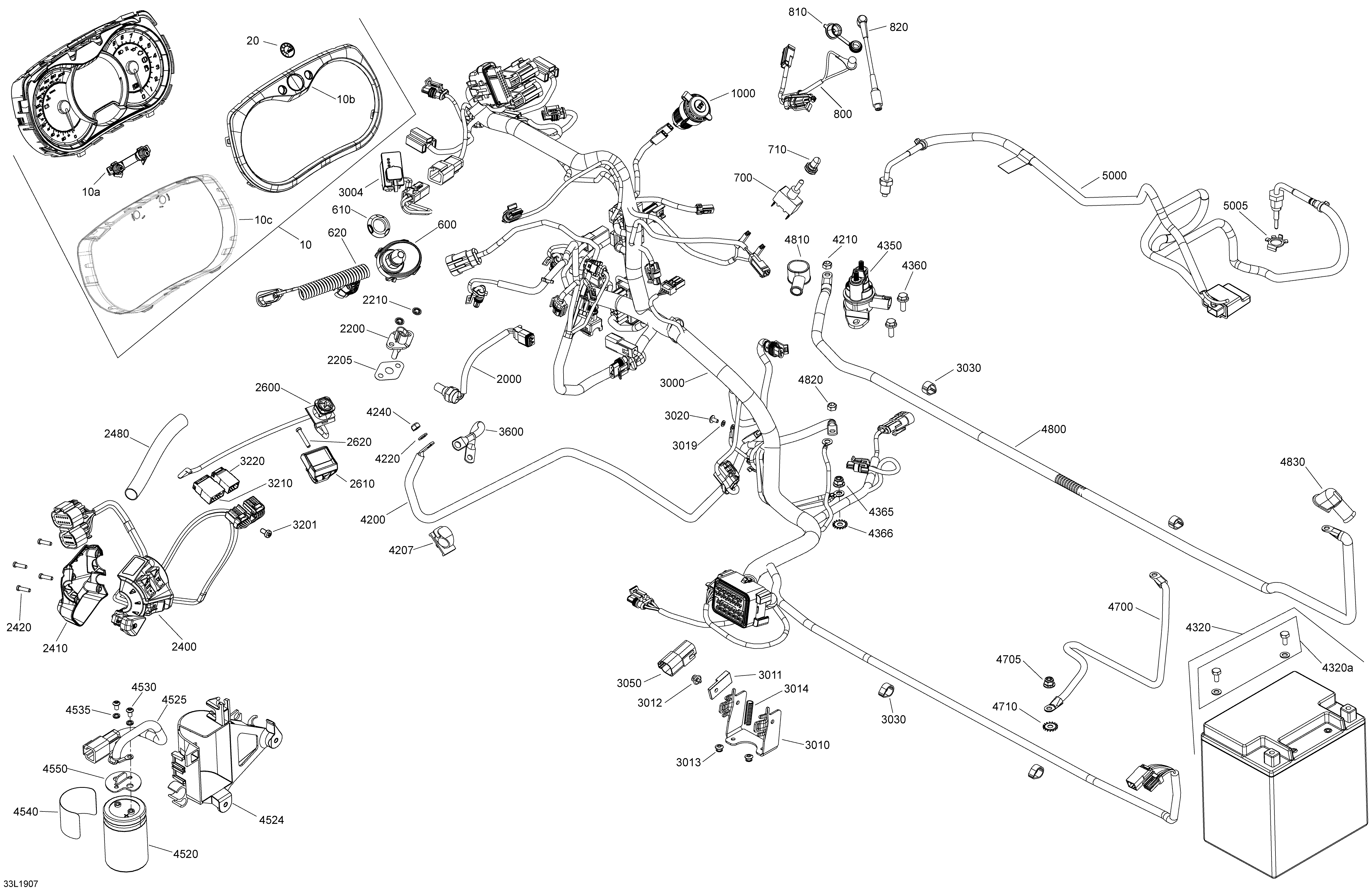

10- Electrical Commander - 800R E-TEC для BRP Lynx 002 - Commander 800R E-TEC - 2019

  • №
    Артикул
    Название
  • 10
    515177910 Speedometer. Includes 10 to 10c
    Speedometer. Includes 10 to 10c
  • 10a
    415129355 Speedometer Button
    Speedometer Button
  • 10b
    415129348 Gauge Ring
    Gauge Ring
  • 10c
    415129349 Lens
    Lens
  • 20
    516006224 BRP Logo, 20 mm
    BRP Logo, 20 mm
  • 600
    515178225 DESS Switch, RFID
    DESS Switch, RFID
  • 610
    278002963 Safety Nut (DESS Switch)
    Safety Nut (DESS Switch)
  • 620
    515178288 Key
    Key
  • 700
    410110700 Heat Grip Switch
    Heat Grip Switch
  • 710
    515175281 Switch Cover
    Switch Cover
  • 800
    515177837 Visor Harness
    Visor Harness
  • 810
    572103300 Cap
    Cap
  • 820
    515175851 Extension
    Extension
  • 1000
    710001248 Outlet DC
    Outlet DC
  • 2000
    515177813 Temperature Sensor
    Temperature Sensor
  • 2200
    515176366 Air Temperature Sensor
    Air Temperature Sensor
  • 2205
    508000769 Seal
    Seal
  • 2210
    389804300 Push Nut
    Push Nut
  • 2400
    515178197 LH Switch Housing
    LH Switch Housing
  • 2410
    515177147 Housing Plate
    Housing Plate
  • 2420
    250000671 Torx Screw
    Torx Screw
  • 2480
    415129879 Protector Tube
    Protector Tube
  • 2600
    515177362 Emergency Stop Switch
    Emergency Stop Switch
  • 2610
    515177310 Emergency Stop Switch Support
    Emergency Stop Switch Support
  • 2620
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 3000
    515178130 Main Harness
    Main Harness
  • 3004
    515177377 Comfort Indicator Panel. Package LTD
    Comfort Indicator Panel. Package LTD
  • 3010
    515177925 Fusebox Support
    Fusebox Support
  • 3011
    270000141 Clip
    Clip
  • 3012
    293150037 Avdel Rivet 3/16''
    Avdel Rivet 3/16''
  • 3013
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3014
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 3015
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 3019
    234141601 Lock Washer 4 mm
    Lock Washer 4 mm
  • 3020
    250000741 Screw-Torx Button Head M4 X 8
    Screw-Torx Button Head M4 X 8
  • 3030
    293740059 Velcro
    Velcro
  • 3050
    710004904 Connector Plug
    Connector Plug
  • 3201
    250000690 Pan Screw Forming, 7500C
    Pan Screw Forming, 7500C
  • 3210
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 3220
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 3250
    415129879 Protector Tube
    Protector Tube
  • 3600
    515176861 Ground Wire
    Ground Wire
  • 4200
    515176806 Start Cable
    Start Cable
  • 4207
    515176795 Tie Rap Mount (screwable)
    Tie Rap Mount (screwable)
  • 4210
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 4220
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 4240
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 4320
    415129898 Lead Battery 18 Amperes. Includes 4320 to 4320a
    Lead Battery 18 Amperes. Includes 4320 to 4320a
  • 4320a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 4350
    278003012 Starter Relay
    Starter Relay
  • 4360
    207561644 Hex.Fla. Screw M6 X 16, Scotch Grip
    Hex.Fla. Screw M6 X 16, Scotch Grip
  • 4365
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 4366
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 4520
    515177272 Capacitor
    Capacitor
  • 4524
    515176607 Capacitor Support
    Capacitor Support
  • 4525
    515176605 Capacitor Harness
    Capacitor Harness
  • 4530
    250000462 Socket Head Screw M10 X 32
    Socket Head Screw M10 X 32
  • 4535
    250200026 Lock washer
    Lock washer
  • 4540
    516006206 Capacitor Decal
    Capacitor Decal
  • 4550
    515177193 Cap
    Cap
  • 4700
    515176780 Ground Wire
    Ground Wire
  • 4705
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 4710
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 4800
    515176805 Battery Cable
    Battery Cable
  • 4810
    570151000 Protection Cap
    Protection Cap
  • 4820
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 4830
    710000495 Protector Cap
    Protector Cap
  • 5000
    515177758 Module
    Module
  • 5005
    514055100 Tab Lock
    Tab Lock
