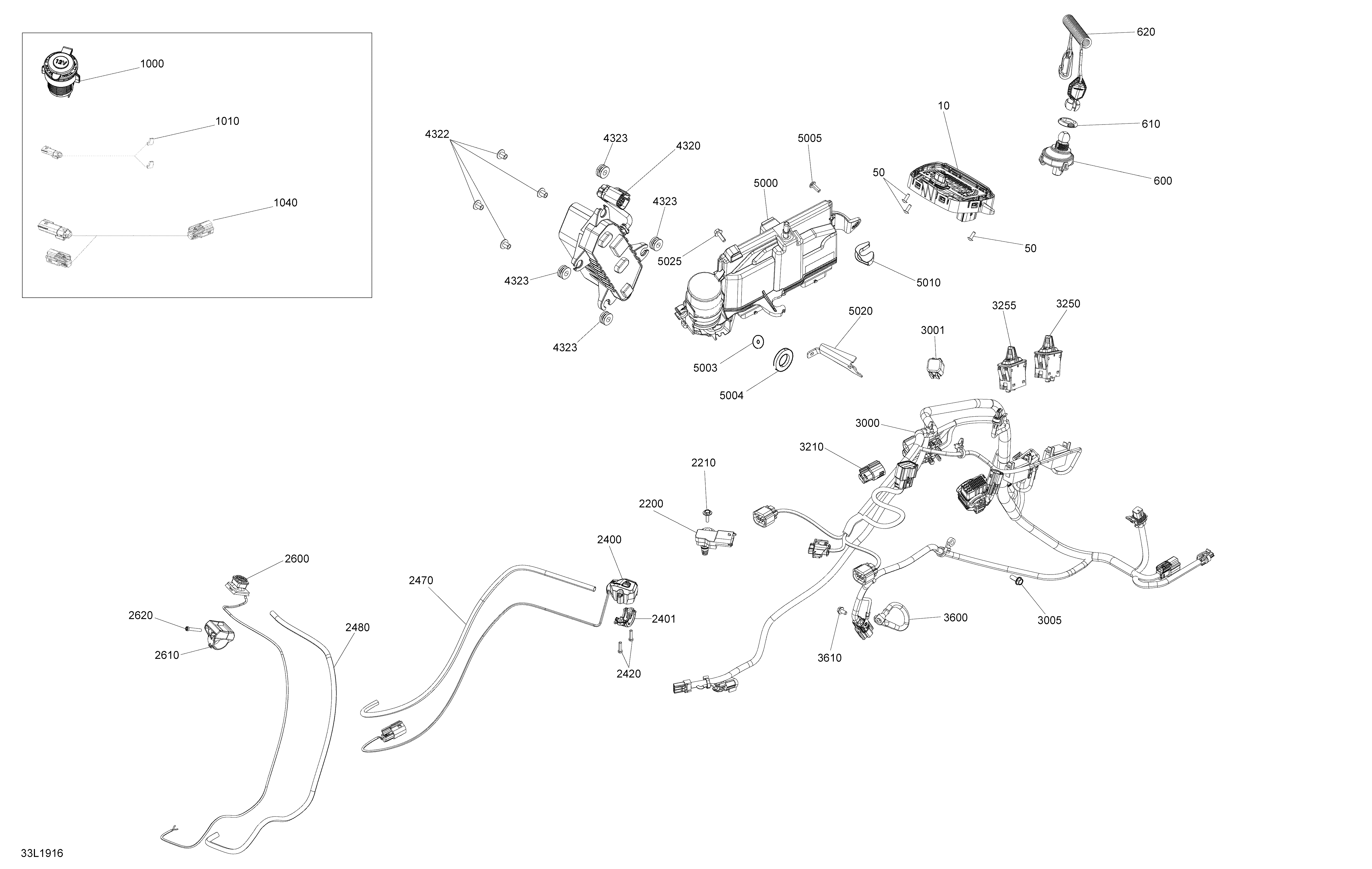

10- Electrical BoonDocker - 850 E-TEC для BRP Lynx 001 - BoonDocker DS 850 E-TEC - 2019
-
№АртикулНазвание
-
10515178456 IndicatorIndicator
-
50250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
600515178225 DESS Switch, RFIDDESS Switch, RFID
-
610278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
620515178288 KeyKey
-
1000710001248 Outlet DCOutlet DC
-
1010515178190 HarnessHarness
-
1040515178153 Extension HarnessExtension Harness
-
2200707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
2210250000725 Screw M4 X 16Screw M4 X 16
-
2400515178381 Start ButtonStart Button
-
2401515177952 ClampClamp
-
2420250000671 Torx ScrewTorx Screw
-
2470415130141 SleeveSleeve
-
2480415130141 SleeveSleeve
-
2600515177931 Kill SwitchKill Switch
-
2610515177310 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515178550 Chassis Wiring HarnessChassis Wiring Harness
-
3001515178435 Diagnostic CapDiagnostic Cap
-
3005250000936 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210515178177 4 Circuits Female Housing4 Circuits Female Housing
-
3250515178462 Switch RockerSwitch Rocker
-
3255515178463 Switch RockerSwitch Rocker
-
3600515178248 Ground WireGround Wire
-
3610250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
4320515178479 Ultracapacitor Module. E-TEC SHOT engine starterUltracapacitor Module. E-TEC SHOT engine starter
-
4322234052670 Inox. Flat Washer M5. E-TEC SHOT engine starterInox. Flat Washer M5. E-TEC SHOT engine starter
-
4323707000746 Rubber Mount. E-TEC SHOT engine starterRubber Mount. E-TEC SHOT engine starter
-
5000512061093 Igniton Module. Manuel StartIgniton Module. Manuel Start
-
5000512061190 Igniton Module. E-TEC SHOT engine starterIgniton Module. E-TEC SHOT engine starter
-
5003250200140 WasherWasher
-
5004250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
5005250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
5010515178430 Rubber StopperRubber Stopper
-
5020515178159 Module SupportModule Support
-
5025207651646 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
