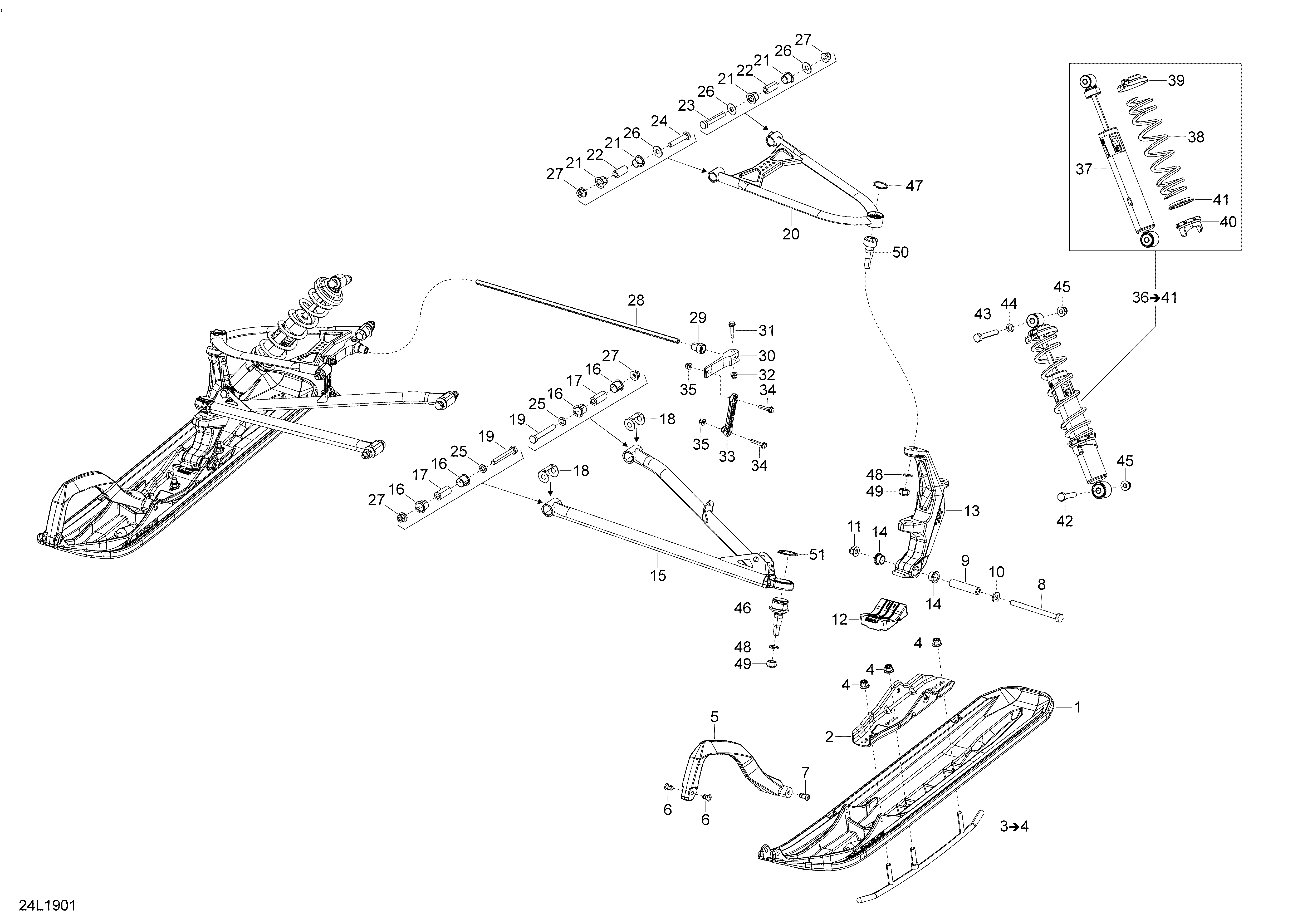

07- Front Suspension And Ski - Adventure - 600 ACE для BRP Lynx 001 - Adventure LX 600 ACE - 2019
-
№АртикулНазвание
-
1505074262 Black, Ski Blade XcBlack, Ski Blade Xc
-
2505073240 Ski Bridge WeldSki Bridge Weld
-
3860200959 Ski Runner Blade 3 Carb.Ski Runner Blade 3 Carb.
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5505073109 HandleHandle
-
6505071812 Retainer 17mm longRetainer 17mm long
-
7505072133 Retainer 23mm LongRetainer 23mm Long
-
8250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10503192496 WasherWasher
-
11233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
12505072594 Ski StopperSki Stopper
-
13505073428 Ski-leg MachinedSki-leg Machined
-
13505073430 Ski-leg MachinedSki-leg Machined
-
14505072690 Leg BushingLeg Bushing
-
15505073426 RH Lower Arm 42'', Black EpoxyRH Lower Arm 42'', Black Epoxy
-
15505073420 LH Lower Arm 42'', Black EpoxyLH Lower Arm 42'', Black Epoxy
-
16505073330 CushionCushion
-
17505072209 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505073412 LH Upper Arm 42'', Black EpoxyLH Upper Arm 42'', Black Epoxy
-
20505073416 RH Upper Arm 42'', Black EpoxyRH Upper Arm 42'', Black Epoxy
-
21505073329 Swivel BushingSwivel Bushing
-
22505072143 BushingBushing
-
23250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
24250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
28505072602 StabilisatorStabilisator
-
29505072064 BushingBushing
-
30505072394 Stabilisator LeverStabilisator Lever
-
31207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
32233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
33505072204 Sway Bar Double Joint LinkSway Bar Double Joint Link
-
34207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
35233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
37505073345 Shock (ski)Shock (ski)
-
38505072882 Full Moon Spring 300mm-16N/MMFull Moon Spring 300mm-16N/MM
-
40505073625 Adjustment CamAdjustment Cam
-
41503191872 Spring GuideSpring Guide
-
41a706200881 Spring StopperSpring Stopper
-
42207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
43207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
44503189564 WasherWasher
-
45233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
46505073636 Ball JointBall Joint
-
47293370070 CirclipCirclip
-
48234021410 Flat Washer 12 mmFlat Washer 12 mm
-
49250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
50505072913 Upper Ball JointUpper Ball Joint
-
51293370035 CirclipCirclip
-
60505072448 O-Ring. Not ShownO-Ring. Not Shown
