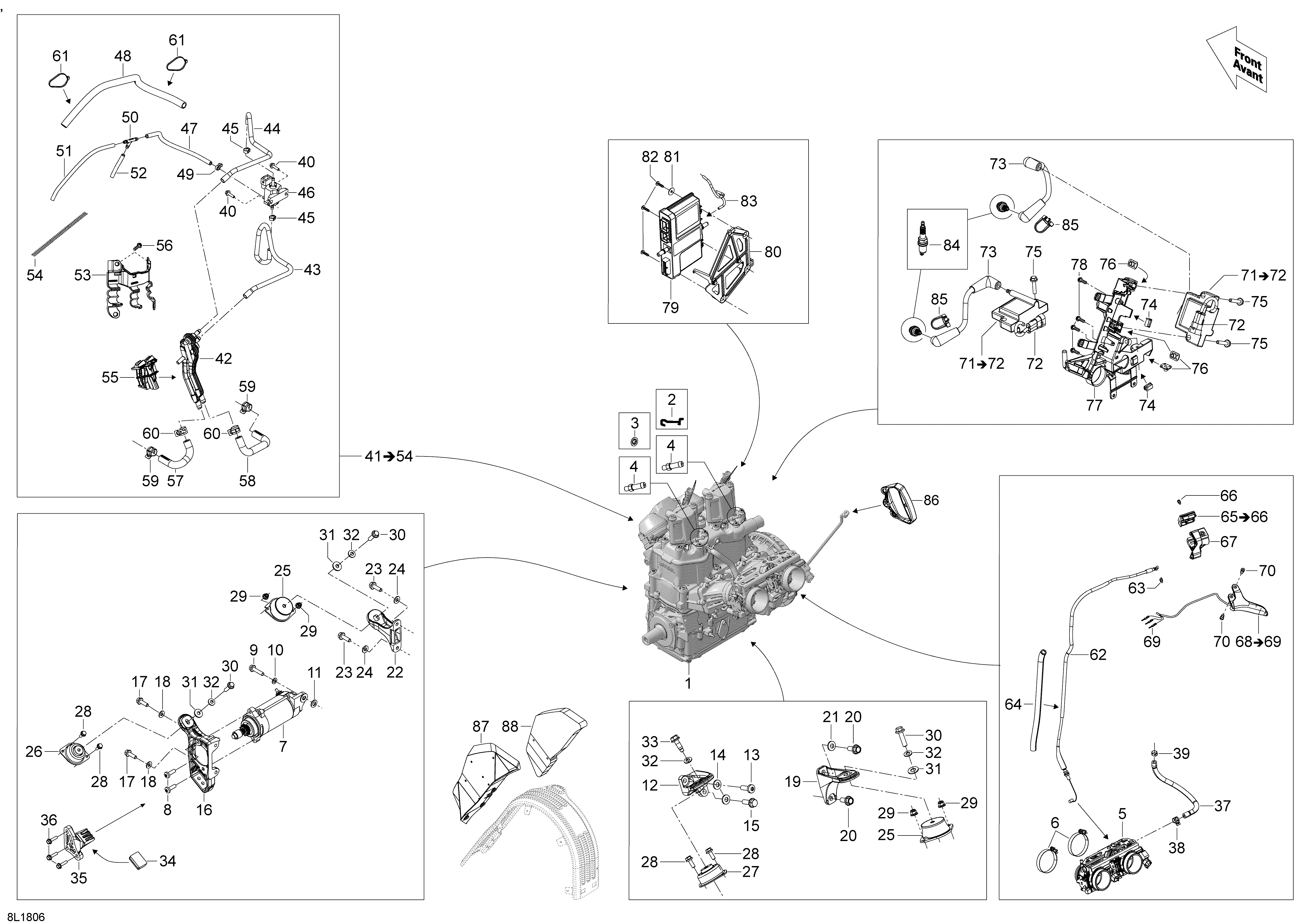

01- Engine Yeti - 600HO E-TEC для BRP Lynx YETI 600 HO E-TEC - 2018
-
№АртикулНазвание
-
2515177770 LockerLocker
-
3732610072 Push NutPush Nut
-
4420924724 Hose NippleHose Nipple
-
5420889201 Throttle BodyThrottle Body
-
6293650158 Gemi ClampGemi Clamp
-
7515177389 StarterStarter
-
8250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
9207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
10250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
12512060478 Rear Support, PTORear Support, PTO
-
13250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
16512060699 Front Support, PTOFront Support, PTO
-
17207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19512060559 Rear Support, MAGRear Support, MAG
-
20207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060469 Front Support, MAGFront Support, MAG
-
23207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060729 Rubber MountRubber Mount
-
26512060387 Rubber MountRubber Mount
-
27512060448 Rubber MountRubber Mount
-
28207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
29233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
31503183200 Washer, YellowWasher, Yellow
-
32234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33250000796 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
34512060627 StopperStopper
-
35512060576 Stopper SupportStopper Support
-
36207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
37512060944 Bleeder's Collector Outlet HoseBleeder's Collector Outlet Hose
-
38293650172 Tridon Gear ClampTridon Gear Clamp
-
39293650046 Oetiker ClampOetiker Clamp
-
40207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
42512060692 ManifoldManifold
-
43415080200 Hose, PolyurethaneHose, Polyurethane
-
44415080200 Hose, PolyurethaneHose, Polyurethane
-
45293650234 Crimp ClampCrimp Clamp
-
46512061078 Solenoid ValveSolenoid Valve
-
47270000374 Hose 4.3 mmHose 4.3 mm
-
48409901700 Tubing 9 mmTubing 9 mm
-
49293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
50293710068 T-FittingT-Fitting
-
51270000374 Hose 4.3 mmHose 4.3 mm
-
52270000374 Hose 4.3 mmHose 4.3 mm
-
53512060827 Hose SupportHose Support
-
54512060934 SpringSpring
-
55512060769 Manifold SupportManifold Support
-
56250000937 Screw-Forming HEX.HD.FL.BZNScrew-Forming HEX.HD.FL.BZN
-
57512060695 LH Formed HoseLH Formed Hose
-
58512060694 RH Formed HoseRH Formed Hose
-
59293650214 Norma Spring ClampNorma Spring Clamp
-
60293650047 Crimp ClampCrimp Clamp
-
61293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
62512060633 Throttle CableThrottle Cable
-
64409901700 Tubing 9 mmTubing 9 mm
-
65512060859 Upper HousingUpper Housing
-
67512060860 Lower HousingLower Housing
-
68512061250 Handle Ass'yHandle Ass'y
-
70732601143 Flanged ScrewFlanged Screw
-
71512060953 Ignition CoilIgnition Coil
-
73512061126 Ignition CableIgnition Cable
-
74710000992 ClipClip
-
75250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
76293100003 Nut M6Nut M6
-
77512060888 SupportSupport
-
78241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
79512060780 Calibrated ModuleCalibrated Module
-
80512060858 Calibrated Module SupportCalibrated Module Support
-
81250200040 Flat WasherFlat Washer
-
82250000760 Torx Screw Truss Head K50 X 20Torx Screw Truss Head K50 X 20
-
83415080100 LineLine
-
84415129375 Spark PlugSpark Plug
-
85512060993 ClampClamp
-
86512060136 Starter GripStarter Grip
-
89293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
90293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
91293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
92293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
93414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
95293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
98518325560 Adhesive PatchAdhesive Patch
-
99414814100 Male ConnectorMale Connector
-
100512060298 Solenoid SupportSolenoid Support
-
101250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
102293850117 Rubber StrapRubber Strap
-
103414274500 CirclipCirclip
