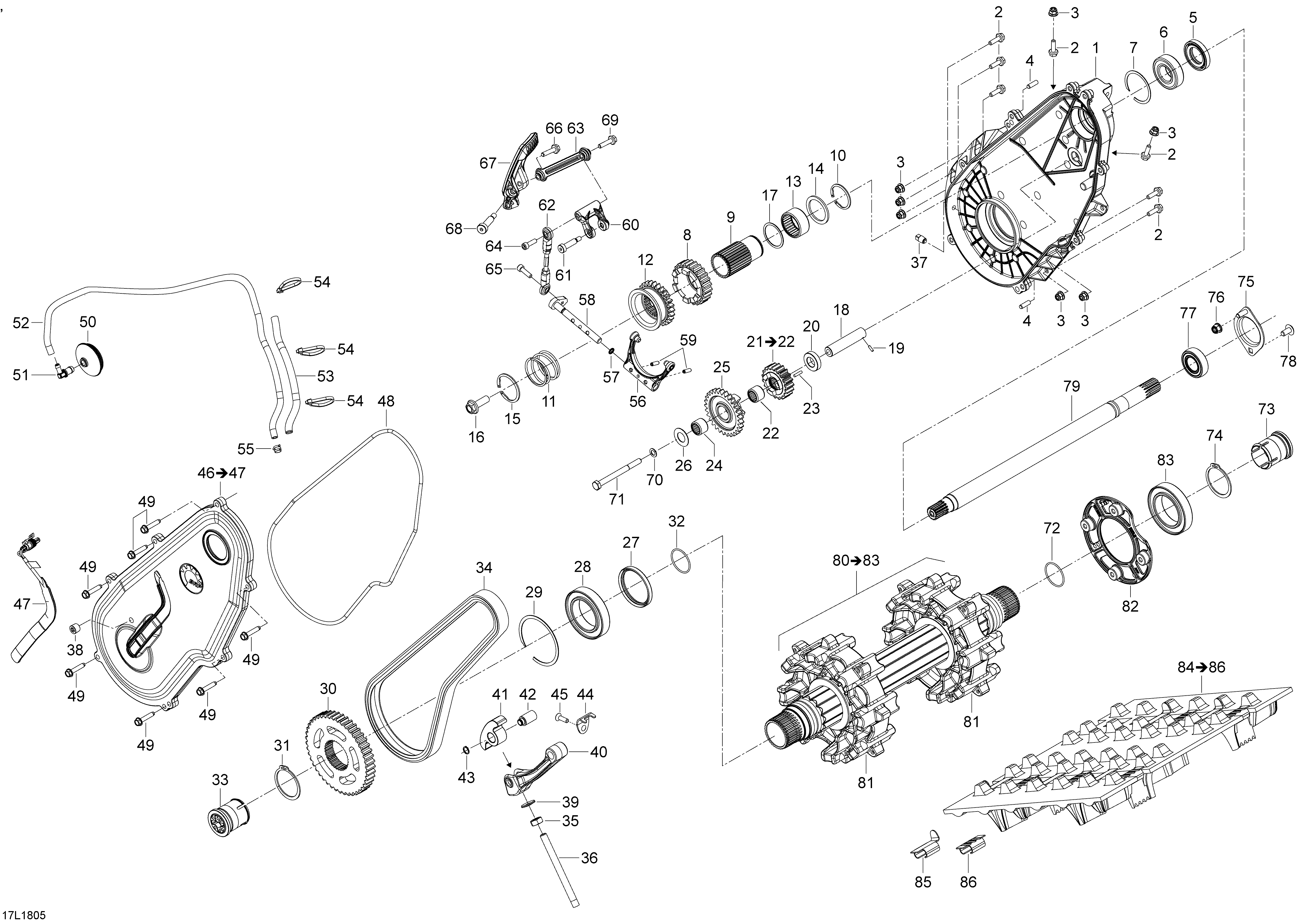

05- Drive Train Xtrim - 900 ACE для BRP Lynx XTRIM 900 ACE - 2018
-
№АртикулНазвание
-
1504153407 Chaincase. Includes 1 to 1aChaincase. Includes 1 to 1a
-
1a518325816 PlatePlate
-
4250400048 Dowel PinDowel Pin
-
5293250175 Oil SealOil Seal
-
6293350115 Ball BearingBall Bearing
-
7504152576 CirclipCirclip
-
8504152961 Sprocket, 24 TeethSprocket, 24 Teeth
-
9504152979 CouplingCoupling
-
10293370054 CirclipCirclip
-
11504153179 Spring ReleaseSpring Release
-
12504152960 Slinding Gear, 27 TeethSlinding Gear, 27 Teeth
-
13293350063 Needle BearingNeedle Bearing
-
14504152689 WasherWasher
-
15293370055 CirclipCirclip
-
16207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
17504152862 WasherWasher
-
18504083100 Reverse ShaftReverse Shaft
-
19250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
20504078700 RingRing
-
21581096900 Sprock Ass'y, 19 TeethSprock Ass'y, 19 Teeth
-
23570048600 Alignement RodAlignement Rod
-
24293350064 Needle BearingNeedle Bearing
-
25504152724 Sprocket, 29 TeethSprocket, 29 Teeth
-
26504077300 SpacerSpacer
-
27504152571 SealSeal
-
28293350059 Ball BearingBall Bearing
-
29504152582 CirclipCirclip
-
30504152581 Sprocket, 49 TeethSprocket, 49 Teeth
-
31504152572 CirclipCirclip
-
32293300122 O-RingO-Ring
-
33504152619 Magnetic CapMagnetic Cap
-
34504152630 Drive Chain, 106 LinksDrive Chain, 106 Links
-
35232006414 Hex. Nut M10Hex. Nut M10
-
36504152602 Adjustment ScrewAdjustment Screw
-
37504152854 Magnetic PlugMagnetic Plug
-
38250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
39293200128 Seal RingSeal Ring
-
40504153431 Chaine TensionnerChaine Tensionner
-
41504152739 Slider ChainSlider Chain
-
42504152841 Tensioner AxleTensioner Axle
-
43504152282 CirclipCirclip
-
44504153122 Chain SliderChain Slider
-
45205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
46504153412 Black Chaincase Cover Ass'yBlack Chaincase Cover Ass'y
-
48293300188 O-ringO-ring
-
49210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
87504152929 Cap Ass'yCap Ass'y
-
88504152900 Protector TubeProtector Tube
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
55414554800 Spring ClampSpring Clamp
-
56504153432 Fork Ass'yFork Ass'y
-
57414484400 O-RingO-Ring
-
58504152956 Welded Axel ForkWelded Axel Fork
-
59250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
60504153427 LeverLever
-
61250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
62504152951 Ball JointBall Joint
-
63504152710 Double Ball JointDouble Ball Joint
-
64205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
65205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
66207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
67504153174 GripGrip
-
68250000340 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
69207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
70504082900 WasherWasher
-
71207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
72293300122 O-RingO-Ring
-
73504152619 Magnetic CapMagnetic Cap
-
74504152572 CirclipCirclip
-
75504153187 Bearing HousingBearing Housing
-
76233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
77293350074 Ball BearingBall Bearing
-
78235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
79504153000 CountershaftCountershaft
-
80504153578 Driveaxle Assy, Machined. Includes 80 to 83Driveaxle Assy, Machined. Includes 80 to 83
-
80a504153085 Drive Axle Ass'yDrive Axle Ass'y
-
82504153426 Retaining RingRetaining Ring
-
83293350059 Ball BearingBall Bearing
-
84504152987 Track-assy.. Includes 84 to 86Track-assy.. Includes 84 to 86
-
85415129528 Track GuideTrack Guide
-
86415129529 CleatCleat
