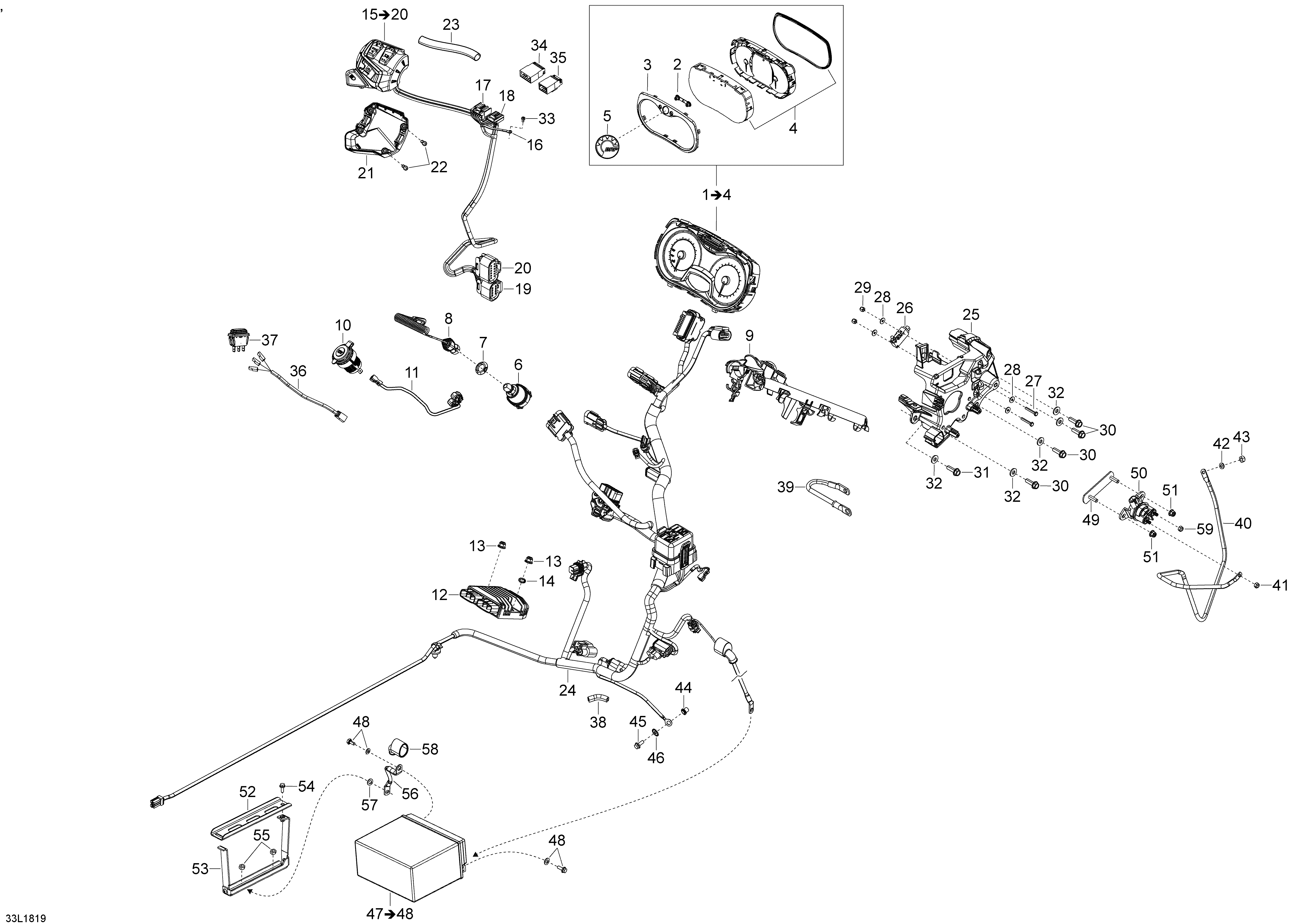

10- Electrical System для BRP Lynx XTRIM 600 ACE - 2018

  • №
    Артикул
    Название
  • 1
    515177911 Indicator. Includes 1 To 4
    Indicator. Includes 1 To 4
  • 2
    415129355 Speedometer Button
    Speedometer Button
  • 3
    415129370 Gauge Ring
    Gauge Ring
  • 4
    415129349 Lens
    Lens
  • 5
    516006224 BRP Logo, 20 mm
    BRP Logo, 20 mm
  • 6
    515178225 DESS Switch
    DESS Switch
  • 7
    278002963 Safety Nut
    Safety Nut
  • 8
    515178044 DESS Cap
    DESS Cap
  • 8
    515178046 DESS Cap (Learning Key)
    DESS Cap (Learning Key)
  • 9
    515177134 Connector Plate
    Connector Plate
  • 10
    710001248 Outlet DC
    Outlet DC
  • 11
    515177400 12 Volts Outlet Harness
    12 Volts Outlet Harness
  • 12
    710001103 Voltage Regulator
    Voltage Regulator
  • 13
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 14
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 15
    515178198 LH Housing. Includes 15 To 20
    LH Housing. Includes 15 To 20
  • 16
    515175504 Ring Terminal
    Ring Terminal
  • 17
    515175543 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 17
    515175231 Female Terminal
    Female Terminal
  • 18
    515175845 Female Terminal Housing, 4 Circuits
    Female Terminal Housing, 4 Circuits
  • 18
    515175231 Female Terminal
    Female Terminal
  • 19
    710001928 Housing
    Housing
  • 20
    710001930 Female Housing, 12 Circuits
    Female Housing, 12 Circuits
  • 21
    515177147 Housing Plate
    Housing Plate
  • 22
    250000671 Torx Screw
    Torx Screw
  • 23
    415129879 Protector Tube
    Protector Tube
  • 24
    515178117 Wiring Harness
    Wiring Harness
  • 25
    515177347 Plate
    Plate
  • 26
    515177460 Switch Ass'y
    Switch Ass'y
  • 27
    207132044 Hex Screw M3 X 20
    Hex Screw M3 X 20
  • 28
    234032600 Flat Washer M3, Stainless
    Flat Washer M3, Stainless
  • 29
    232531423 Elastic Stop Nut M3
    Elastic Stop Nut M3
  • 30
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 31
    210262550 Hex. Flanged Forming Screw M6 X 25
    Hex. Flanged Forming Screw M6 X 25
  • 32
    250200039 Flat Washer
    Flat Washer
  • 33
    250000690 Pan Screw Forming, 7500C
    Pan Screw Forming, 7500C
  • 34
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 35
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 36
    515177568 ECO Harness
    ECO Harness
  • 37
    515177569 ECO Rocker Switch
    ECO Rocker Switch
  • 38
    520001525 Trim
    Trim
  • 39
    515177014 Ground Wire
    Ground Wire
  • 40
    515177427 Battery Wire
    Battery Wire
  • 41
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 42
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 43
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 44
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 45
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 46
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 47
    415129898 Lead Battery 18 Amperes. Includes 47 To 48
    Lead Battery 18 Amperes. Includes 47 To 48
  • 48
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 49
    515177740 Relay Support
    Relay Support
  • 50
    278003012 Starter Relay
    Starter Relay
  • 51
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 52
    518327281 Battery Strap
    Battery Strap
  • 53
    518327282 Battery Strap
    Battery Strap
  • 54
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 55
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 56
    515176780 Ground Wire
    Ground Wire
  • 57
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 58
    570151000 Protection Cap
    Protection Cap
  • 59
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
