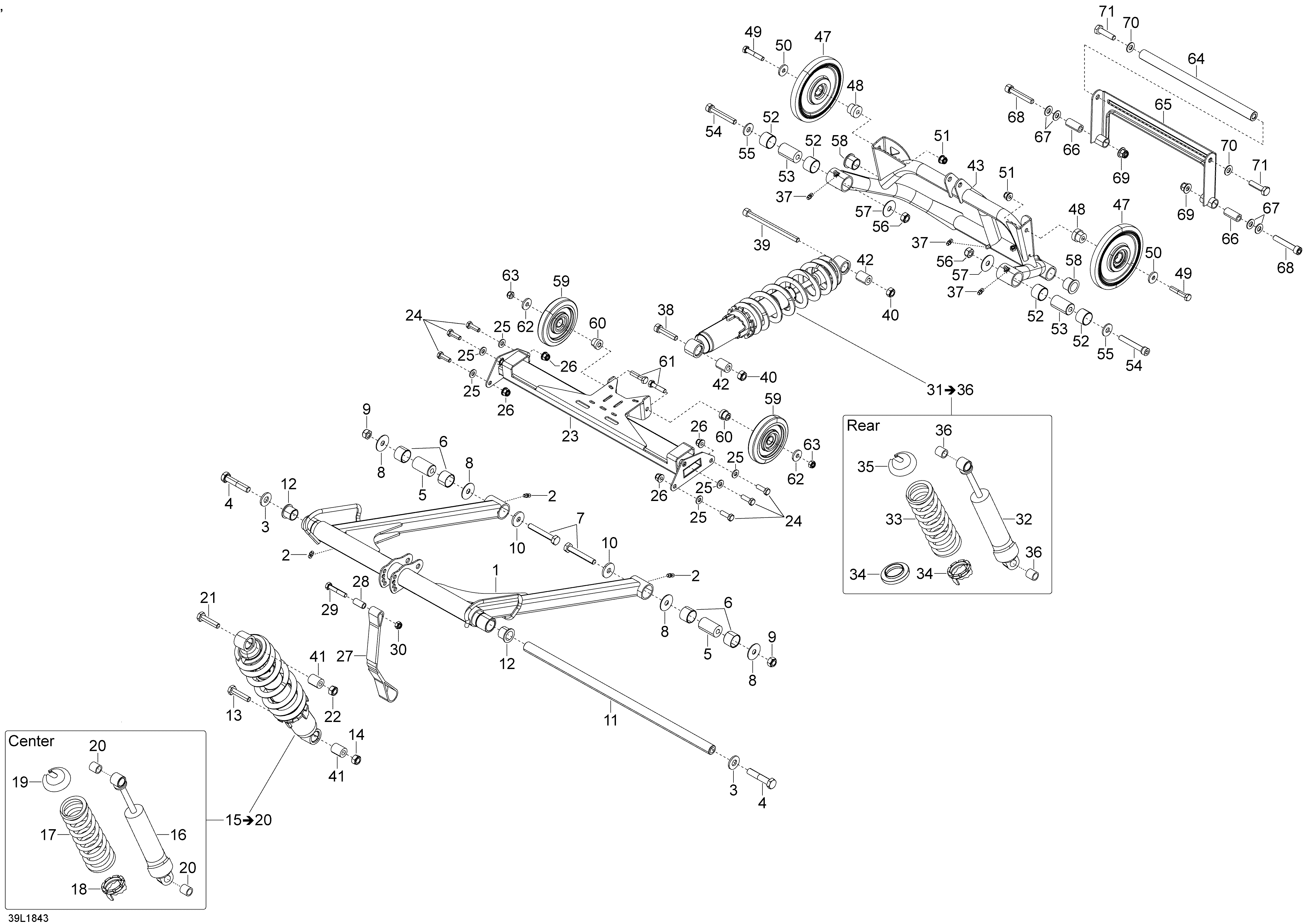

08- Rear Suspension Commander - Touratech для BRP Lynx Commander 800R E-TEC - 2018
-
№АртикулНазвание
-
1503193092 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200131 Washer-spring ConicalWasher-spring Conical
-
4250000555 Hexagonal ScrewHexagonal Screw
-
5605354157 ShaftShaft
-
6503193700 BushingBushing
-
7207007044 Hex. Screw M10 X 70Hex. Screw M10 X 70
-
8605355801 WasherWasher
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10503183300 WasherWasher
-
115347719 Upper Shaft Front ArmUpper Shaft Front Arm
-
1231024 CushionCushion
-
13250000549 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
16503194362 Shock. Model-STDShock. Model-STD
-
17605625010 White Spring. Model-STDWhite Spring. Model-STD
-
18230078 Adjusting CamAdjusting Cam
-
19230076 Spring SeatSpring Seat
-
2031094 CushionCushion
-
21207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
22232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23503192344 Middle BeamMiddle Beam
-
24250000556 Hexagonal ScrewHexagonal Screw
-
25503192494 WasherWasher
-
26233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27503193780 Limiter StrapLimiter Strap
-
28605455335 SleeveSleeve
-
29207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
30232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
32503194364 Shock. Model-STDShock. Model-STD
-
33503192356 Spring. Model-STDSpring. Model-STD
-
34503194204 Sleeve. Model-STDSleeve. Model-STD
-
35605354631 Spring Lock. Model-STDSpring Lock. Model-STD
-
3631094 CushionCushion
-
37408200700 Grease FittingGrease Fitting
-
38205004544 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
3940225 Allen Screw M10x140 8.8zn(1=10pcs)Allen Screw M10x140 8.8zn(1=10pcs)
-
40232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
415446652 BushingBushing
-
425446652 BushingBushing
-
43503193868 Rear ArmRear Arm
-
44503194181 Track SupportTrack Support
-
45503194203 SleeveSleeve
-
46503191926 WasherWasher
-
47503193852 Idler WheelIdler Wheel
-
48605454461 SleeveSleeve
-
49207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
5020077 M8 WasherM8 Washer
-
51233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
52503193700 BushingBushing
-
53605354157 ShaftShaft
-
54250000560 Screw-socket Hd.din 912Screw-socket Hd.din 912
-
55503191926 WasherWasher
-
56232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
57605355801 WasherWasher
-
5831024 CushionCushion
-
59572043500 Idler WheelIdler Wheel
-
60503193330 SleeveSleeve
-
61207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
6220077 M8 WasherM8 Washer
-
63232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
64503192397 ShaftShaft
-
65503192346 Rear SwingRear Swing
-
66503192341 Shaft, Rear SwingShaft, Rear Swing
-
67234001410 Flat Washer 10 mmFlat Washer 10 mm
-
68205006044 Socket Screw M10 X 60Socket Screw M10 X 60
-
69233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
70234001410 Flat Washer 10 mmFlat Washer 10 mm
-
71207204044 Hexagonal ScrewHexagonal Screw
