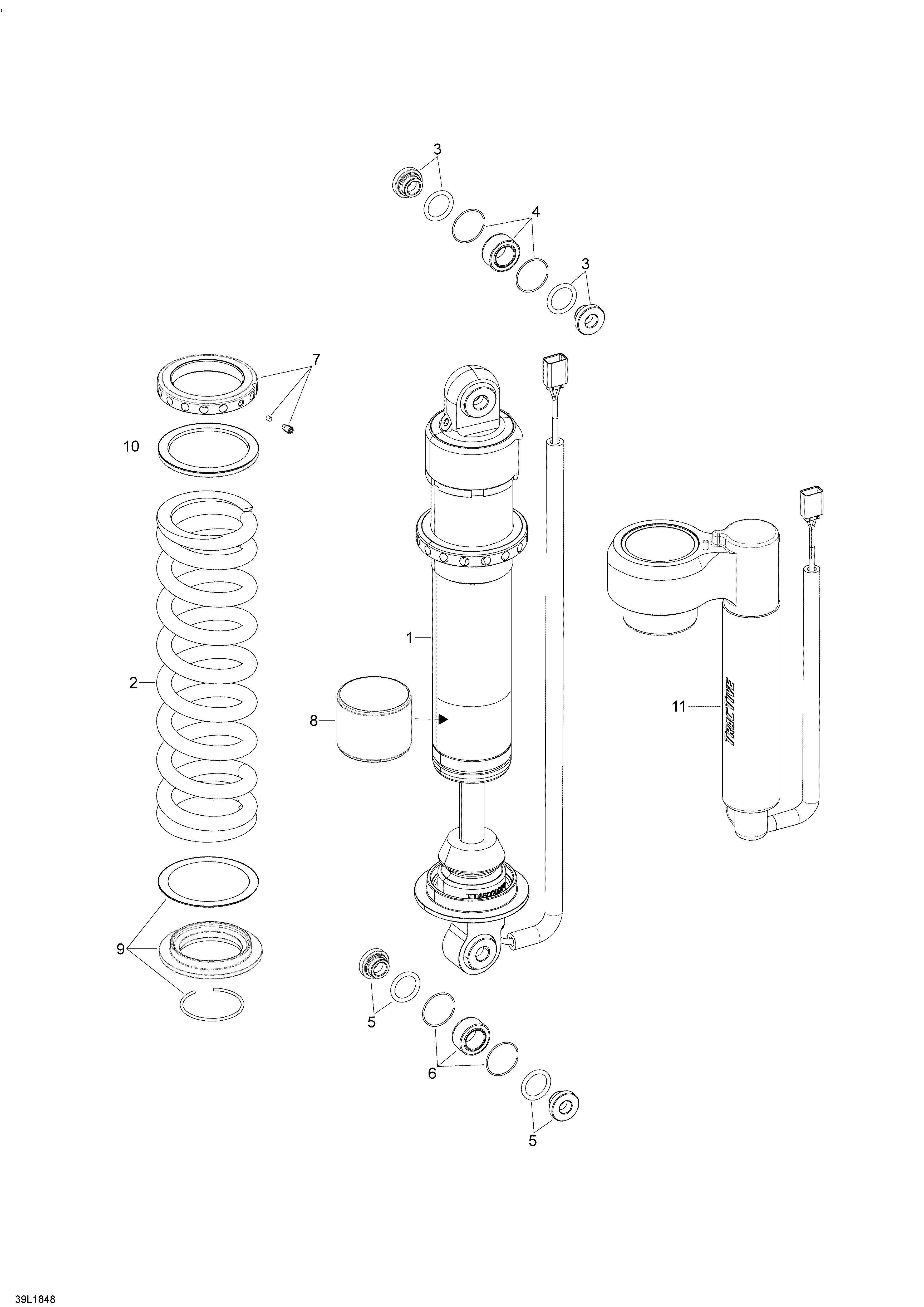

08- Rear Shocks Commander GT для BRP Lynx Commander 1200 4-TEC - 2018
-
№АртикулНазвание
-
-503194194 Shock Ass'y, Rear. Includes 1 To 11Shock Ass'y, Rear. Includes 1 To 11
-
2619300178 SpringSpring
-
3619300183 Bearing Bushing, UpperBearing Bushing, Upper
-
4619300186 Bearing Upper Ass'yBearing Upper Ass'y
-
5619300183 Bearing Bushing, UpperBearing Bushing, Upper
-
6619300187 Bearing Set, LowerBearing Set, Lower
-
7619300188 Spring Retainer Screw SetSpring Retainer Screw Set
-
8619300189 Rubber Protection SleeveRubber Protection Sleeve
-
9619300190 Spring Retainer Set, LowerSpring Retainer Set, Lower
-
10619300191 Retainer Spacer, SpringRetainer Spacer, Spring
-
11619300182 EpaEpa
