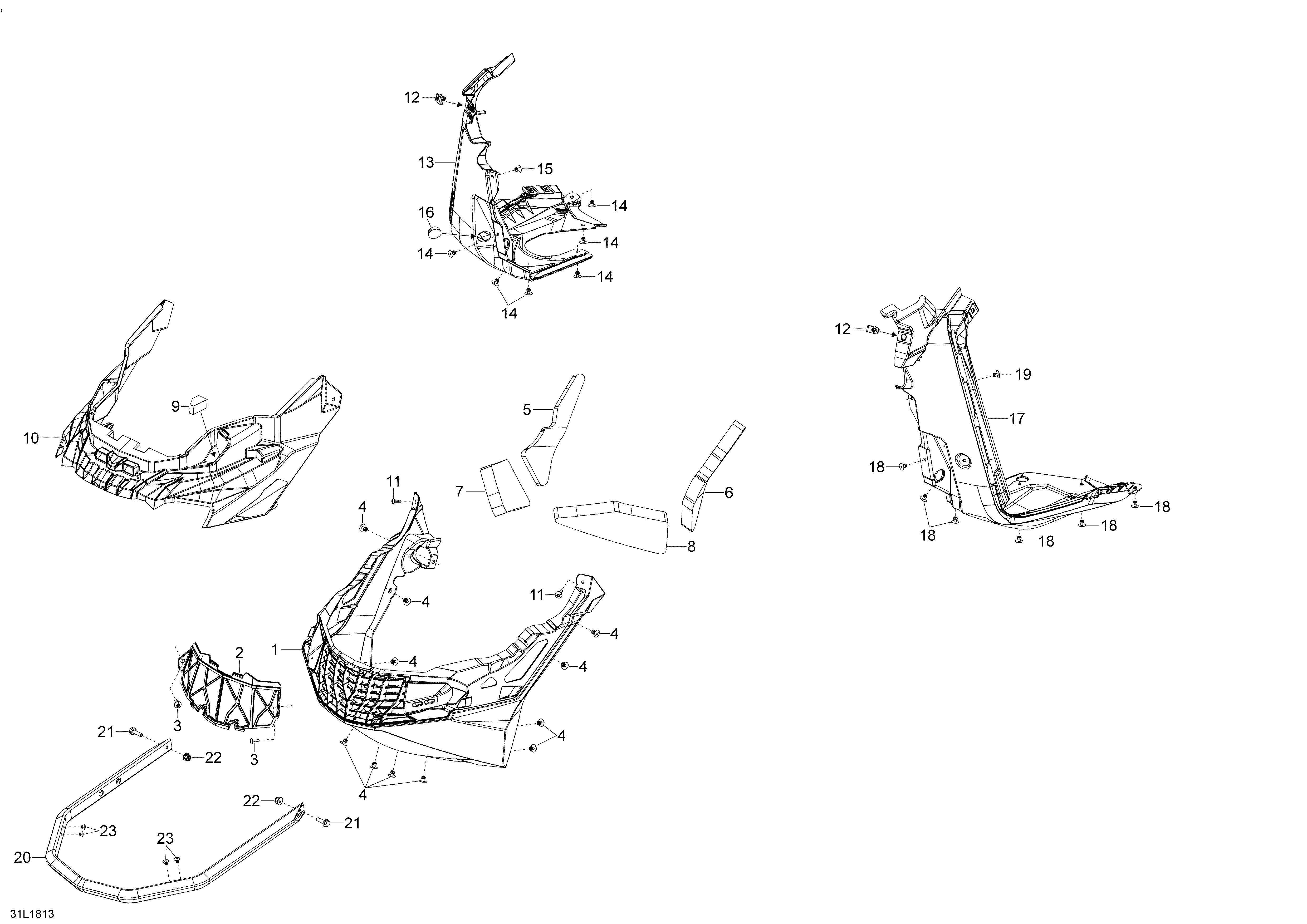

09- Bottom Pan 49 Ranger для BRP Lynx 49 Ranger 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1502007172 Black Front Bottom PanBlack Front Bottom Pan
-
2517305029 Pre-FilterPre-Filter
-
3250000810 Flanged Screw 4.8 X 13Flanged Screw 4.8 X 13
-
4293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
5502007243 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
6502007244 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
7502007245 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
8502007246 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
9517305812 FoamFoam
-
10502007284 Front CapFront Cap
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13502007259 RH Bottom PanRH Bottom Pan
-
14293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
16414916600 Nylon CapNylon Cap
-
17502007260 LH Bottom PanLH Bottom Pan
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
20502007281 Black Front BumperBlack Front Bumper
-
21207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
