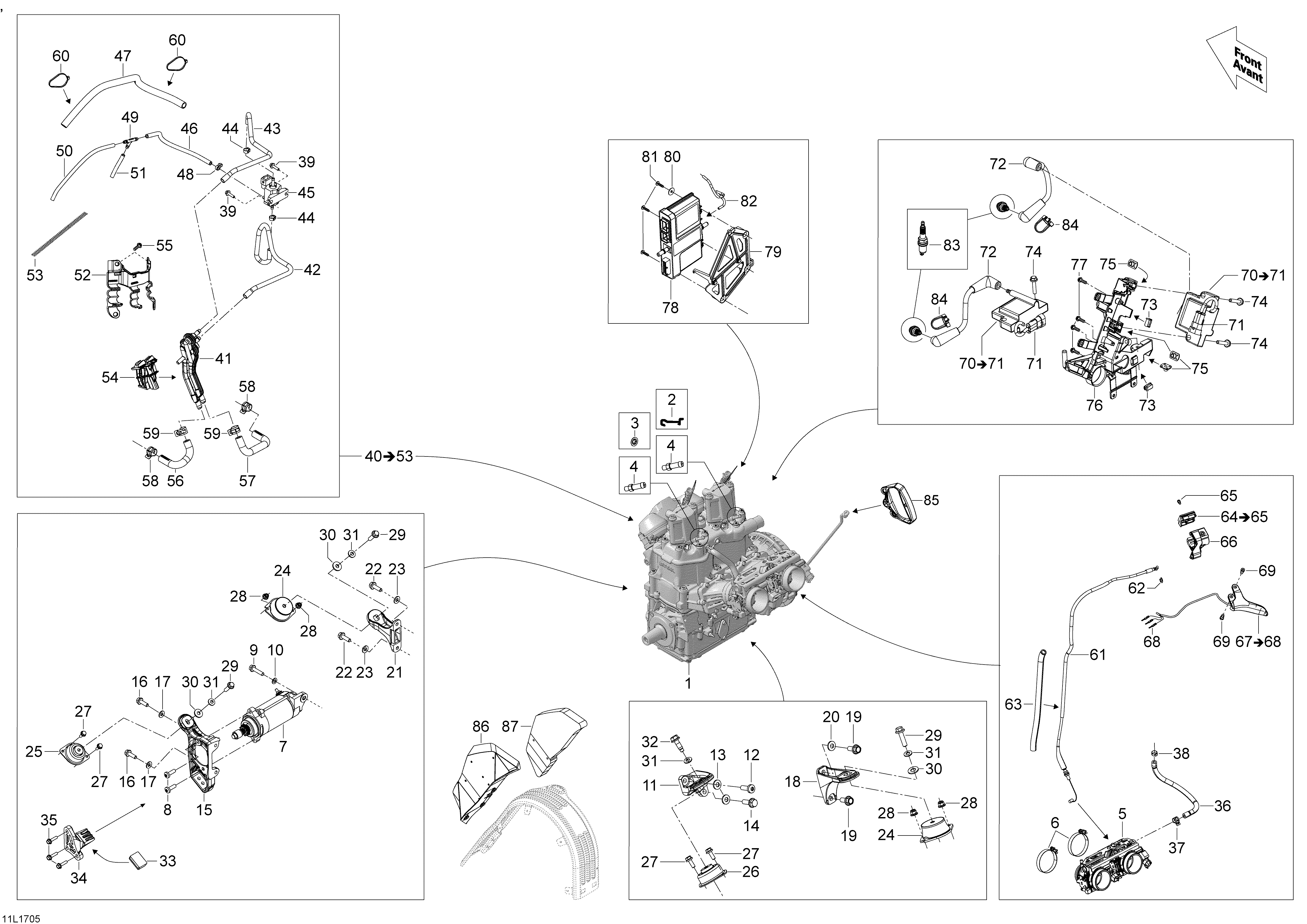

01- Engine And Engine Support для BRP Lynx XTRIM RE - 2017
-
№АртикулНазвание
-
2515177770 LockLock
-
3732610072 Push NutPush Nut
-
4420924724 Hose NippleHose Nipple
-
5420889201 Throttle Body. Model - 600 E-TECThrottle Body. Model - 600 E-TEC
-
5420889202 Throttle Body. Model - 800 E-TECThrottle Body. Model - 800 E-TEC
-
6293650158 Clamp. Model - 600 E-TECClamp. Model - 600 E-TEC
-
6512060943 Clamp. Model - 800 E-TECClamp. Model - 800 E-TEC
-
7515177389 Electric Starter. Model-Electric StartElectric Starter. Model-Electric Start
-
8250000752 Pan HD Torx Screw M8 x 25. Model-Electric StartPan HD Torx Screw M8 x 25. Model-Electric Start
-
9207583544 Hex. Flange Screw M8 x 35. Model-Electric StartHex. Flange Screw M8 x 35. Model-Electric Start
-
10250200008 Flat Washer. Model-Electric StartFlat Washer. Model-Electric Start
-
11512060478 Rear Support (PTO)Rear Support (PTO)
-
12250000752 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
15512060699 Front Support (PTO). Model - 600 E-TECFront Support (PTO). Model - 600 E-TEC
-
15512060714 Front Support (PTO). Model - 800 E-TECFront Support (PTO). Model - 800 E-TEC
-
16207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060559 Rear Support (MAG)Rear Support (MAG)
-
19207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21512060469 Front Support (MAG)Front Support (MAG)
-
22207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24512060729 Rubber MountRubber Mount
-
25512060387 Rubber MountRubber Mount
-
26512060448 Rubber MountRubber Mount
-
27207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
28233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
29207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
30503183200 WasherWasher
-
31234281474 Conical Spring Washer M8Conical Spring Washer M8
-
32250000796 Hex. Screw M8Hex. Screw M8
-
33512060627 Stopper. Model - 600 E-TECStopper. Model - 600 E-TEC
-
33512060766 Stopper. Model - 800 E-TECStopper. Model - 800 E-TEC
-
34512060576 Stopper SupportStopper Support
-
35207562544 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
36512060944 HoseHose
-
37293650172 ClampClamp
-
38293650046 ClampClamp
-
39241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
41512060692 ManifoldManifold
-
42415080200 Hose (275mm)Hose (275mm)
-
43415080200 Hose (410mm)Hose (410mm)
-
44293650234 Crimp ClampCrimp Clamp
-
45512061078 Solenoid ValveSolenoid Valve
-
46270000374 Hose (220mm)Hose (220mm)
-
47409901700 TubingTubing
-
48293750001 Tie Rap 94mmTie Rap 94mm
-
49293710068 T-FittingT-Fitting
-
50270000374 Hose (180mm)Hose (180mm)
-
51270000374 Hose (50mm)Hose (50mm)
-
52512060827 Clip Ass?yClip Ass?y
-
53512060930 SpringSpring
-
54512060769 Manifold Support. Model - 600 E-TECManifold Support. Model - 600 E-TEC
-
54512060822 Manifold Support. Model - 800 E-TECManifold Support. Model - 800 E-TEC
-
55210251150 Hex. HD Forming Screw M5 x 11Hex. HD Forming Screw M5 x 11
-
56512060695 HoseHose
-
57512060694 HoseHose
-
58293650214 Spring ClampSpring Clamp
-
59293650047 Crimp ClampCrimp Clamp
-
60293750001 Tie Rap 94mmTie Rap 94mm
-
61512060668 Throttle CableThrottle Cable
-
62414274500 CirclipCirclip
-
63409901700 Tubing 9mmTubing 9mm
-
64512060859 Upper Housing. Includes 64 To 65Upper Housing. Includes 64 To 65
-
65414440800 Set Screw M8 x 10Set Screw M8 x 10
-
66512060860 Lower HousingLower Housing
-
67512061051 Throttle Handle Ass'y. Includes 67 To 68Throttle Handle Ass'y. Includes 67 To 68
-
68515175232 Male TerminalMale Terminal
-
69732601143 Shoulder ScrewShoulder Screw
-
70512060953 Ignition Coil. Includes 70 To 71Ignition Coil. Includes 70 To 71
-
71710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
72512061126 Ignition CableIgnition Cable
-
73710000992 ClipClip
-
74250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
75293100003 NutNut
-
76512060888 SupportSupport
-
77241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
78512060780 Calibrated Module 600 E-TEC. Model - 600 E-TECCalibrated Module 600 E-TEC. Model - 600 E-TEC
-
78512060756 Calibrated Module 800 E-TEC. Model - 800 E-TECCalibrated Module 800 E-TEC. Model - 800 E-TEC
-
79512060858 Calibrated Module SupportCalibrated Module Support
-
80250200040 Flat WasherFlat Washer
-
81250000760 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
82415080100 HoseHose
-
83415129375 Spark Plug. Model - 600 E-TECSpark Plug. Model - 600 E-TEC
-
83415129484 Spark Plug (PFR7AB). Model - 800 E-TECSpark Plug (PFR7AB). Model - 800 E-TEC
-
84512060993 ClampClamp
-
85512060136 Starter GripStarter Grip
-
86512060847 Noise ShieldNoise Shield
-
87512060958 Noise FoamNoise Foam
