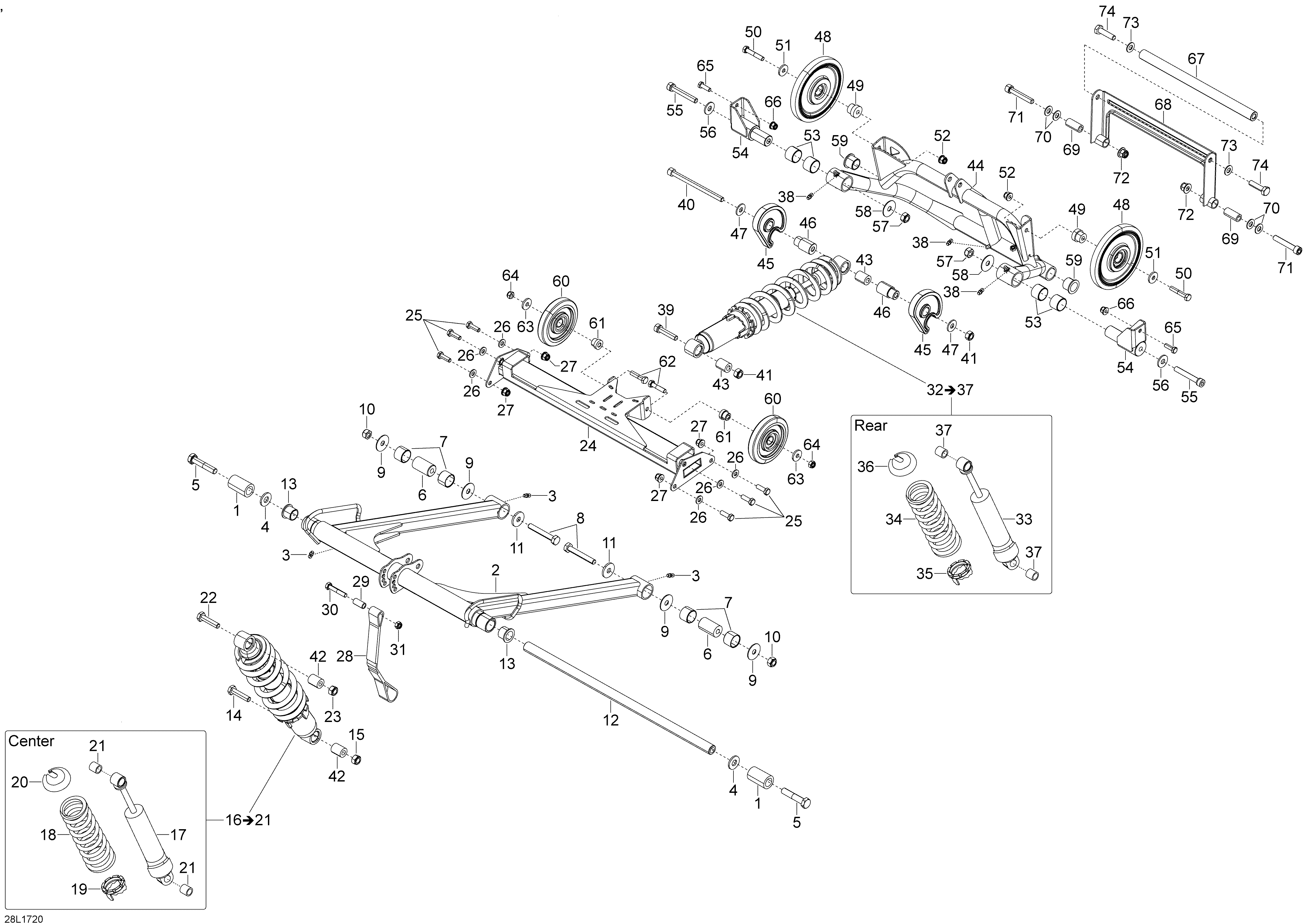

08- Rear Suspension B для BRP Lynx 69 Ranger ARMY LTD - 2017
-
№АртикулНазвание
-
1503193309 SleeveSleeve
-
2503193092 Front ArmFront Arm
-
3408200700 Grease FittingGrease Fitting
-
4250200131 Washer Spring Conical M12Washer Spring Conical M12
-
5250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
6605354157 ShaftShaft
-
7503193700 BushingBushing
-
8207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
9605355801 WasherWasher
-
10232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
11503183300 WasherWasher
-
12503193174 Upper ShaftUpper Shaft
-
1331024 CushionCushion
-
14250000549 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
15232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
17503193517 ShockShock
-
18503191848 White SpringWhite Spring
-
19230078 Spring SeatSpring Seat
-
20230076 Spring SeatSpring Seat
-
2131094 Glide BearingGlide Bearing
-
22207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
23232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
24503192687 Middle BeamMiddle Beam
-
25250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
26503192494 WasherWasher
-
27233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
28503193780 Limiter StrapLimiter Strap
-
29605455335 SleeveSleeve
-
30207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
31232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
33503193518 ShockShock
-
34503192428 Spring (280mm - 70N/mm)Spring (280mm - 70N/mm)
-
35230078 Spring SeatSpring Seat
-
36230076 Spring SeatSpring Seat
-
3731094 Glide BearingGlide Bearing
-
38408200700 Grease FittingGrease Fitting
-
39205004544 Socket ScrewSocket Screw
-
40205004544 Socket Screw. Model-600 E-TECSocket Screw. Model-600 E-TEC
-
4040225 Allen Screw M10 x 140. Model-800 E-TECAllen Screw M10 x 140. Model-800 E-TEC
-
41232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
425446652 BushingBushing
-
435446652 BushingBushing
-
44503194584 Rear ArmRear Arm
-
45503194181 Track Support. Model-800 E-TECTrack Support. Model-800 E-TEC
-
46503194203 Sleeve. Model-800 E-TECSleeve. Model-800 E-TEC
-
47503191926 Washer. Model-800 E-TECWasher. Model-800 E-TEC
-
48503193852 Idler Wheel 133mmIdler Wheel 133mm
-
49605454461 SleeveSleeve
-
50207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
5120077 WasherWasher
-
52233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
53503193700 BushingBushing
-
54503194384 Rear Arm SupportRear Arm Support
-
55250000543 Socket HD Screw M10 x 120Socket HD Screw M10 x 120
-
56503191926 WasherWasher
-
57232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
58605355801 WasherWasher
-
5931024 CushionCushion
-
60572043500 Idler WheelIdler Wheel
-
61503193330 SleeveSleeve
-
62207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
6320077 WasherWasher
-
64232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
65250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
66233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
67503192397 ShaftShaft
-
68503192346 Rear SwingRear Swing
-
69503192341 Rear Swing ShaftRear Swing Shaft
-
70234001410 Washer Flat M10Washer Flat M10
-
71205006044 Socket HD. Screw M10 x 60Socket HD. Screw M10 x 60
-
72233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
73234001410 Flat Washer M10Flat Washer M10
-
74207204044 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
