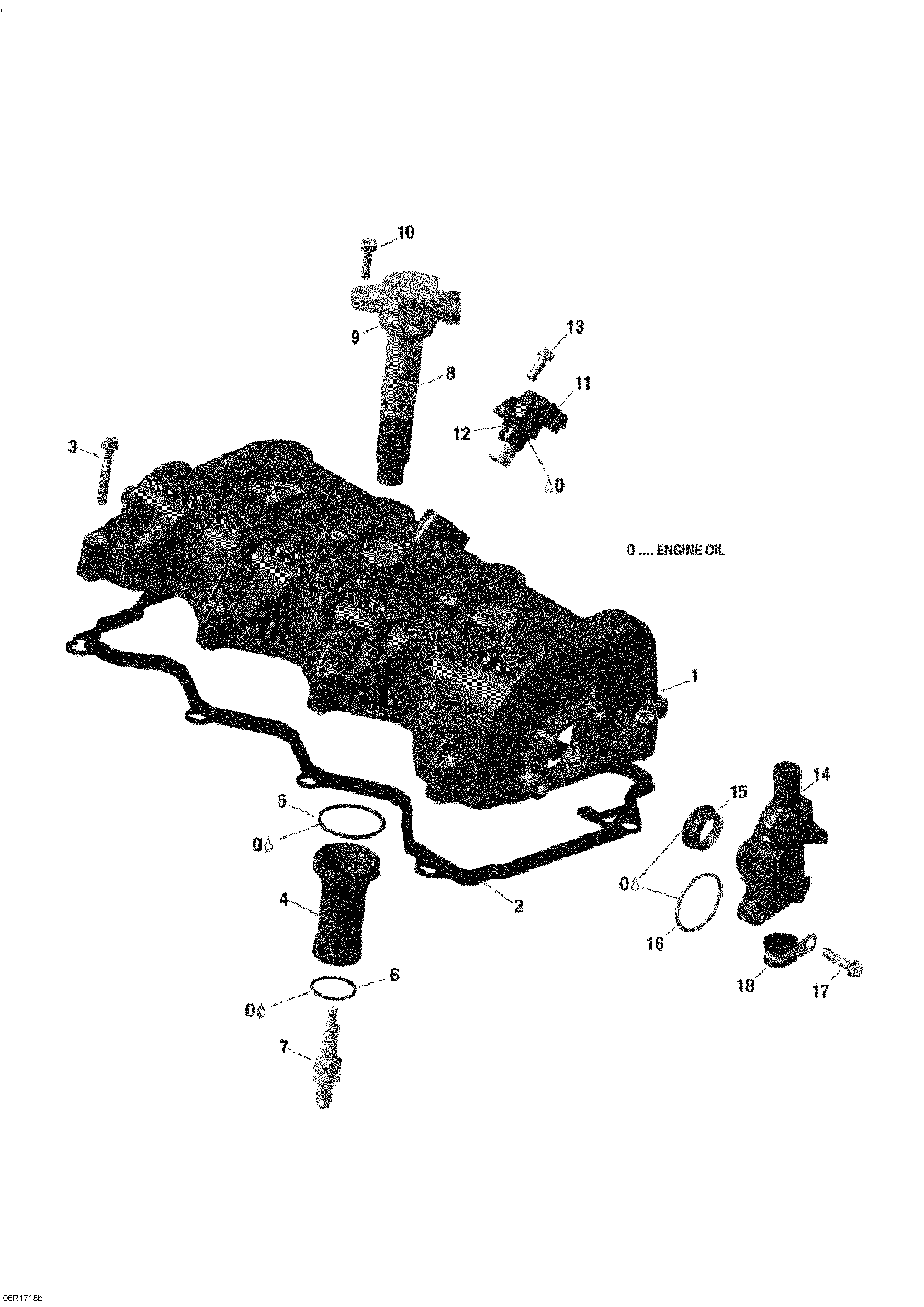

01- Valve Cover - 1200 4-TEC для BRP Lynx 69 Ranger Alpine - 2017

  • №
    Артикул
    Название
  • 1
    420611857 Valve Cover Ass'y. Includes 1 To 2
    Valve Cover Ass'y. Includes 1 To 2
  • 2
    420431041 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420440282 Flange Torx Screw M6 x 40. Tightening Torque 11 Nm
    Flange Torx Screw M6 x 40. Tightening Torque 11 Nm
  • 4
    420460585 Spark Plug Pipe Ass'y. Includes 4 To 6
    Spark Plug Pipe Ass'y. Includes 4 To 6
  • 5
    420431740 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 6
    420631611 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 7
    415129429 Spark Plug (CR8EKB). Tightening Torque 11 Nm
    Spark Plug (CR8EKB). Tightening Torque 11 Nm
  • 8
    420665810 Stick Coil. Includes 8 To 9
    Stick Coil. Includes 8 To 9
  • 9
    420201435 Protection Cap
    Protection Cap
  • 10
    205062044 Allen Screw M6 x 20. Tightening Torque 11 Nm
    Allen Screw M6 x 20. Tightening Torque 11 Nm
  • 11
    420664045 Camshaft Sensor. Includes 11 To 12
    Camshaft Sensor. Includes 11 To 12
  • 12
    420631890 O-Ring
    O-Ring
  • 13
    420440162 Hex./Torx Flange Screw M6 x 16. Tightening Torque 11 Nm
    Hex./Torx Flange Screw M6 x 16. Tightening Torque 11 Nm
  • 14
    420856506 Vent Valve Assy. Includes 14 To 16
    Vent Valve Assy. Includes 14 To 16
  • 15
    420630125 V-ring. Included In Gasket Kit
    V-ring. Included In Gasket Kit
  • 16
    420950870 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 17
    420440234 Hex./Torx Flange Screw M6 x 25. Tightening Torque 11 Nm
    Hex./Torx Flange Screw M6 x 25. Tightening Torque 11 Nm
  • 18
    420851492 Cable Clamp
    Cable Clamp
