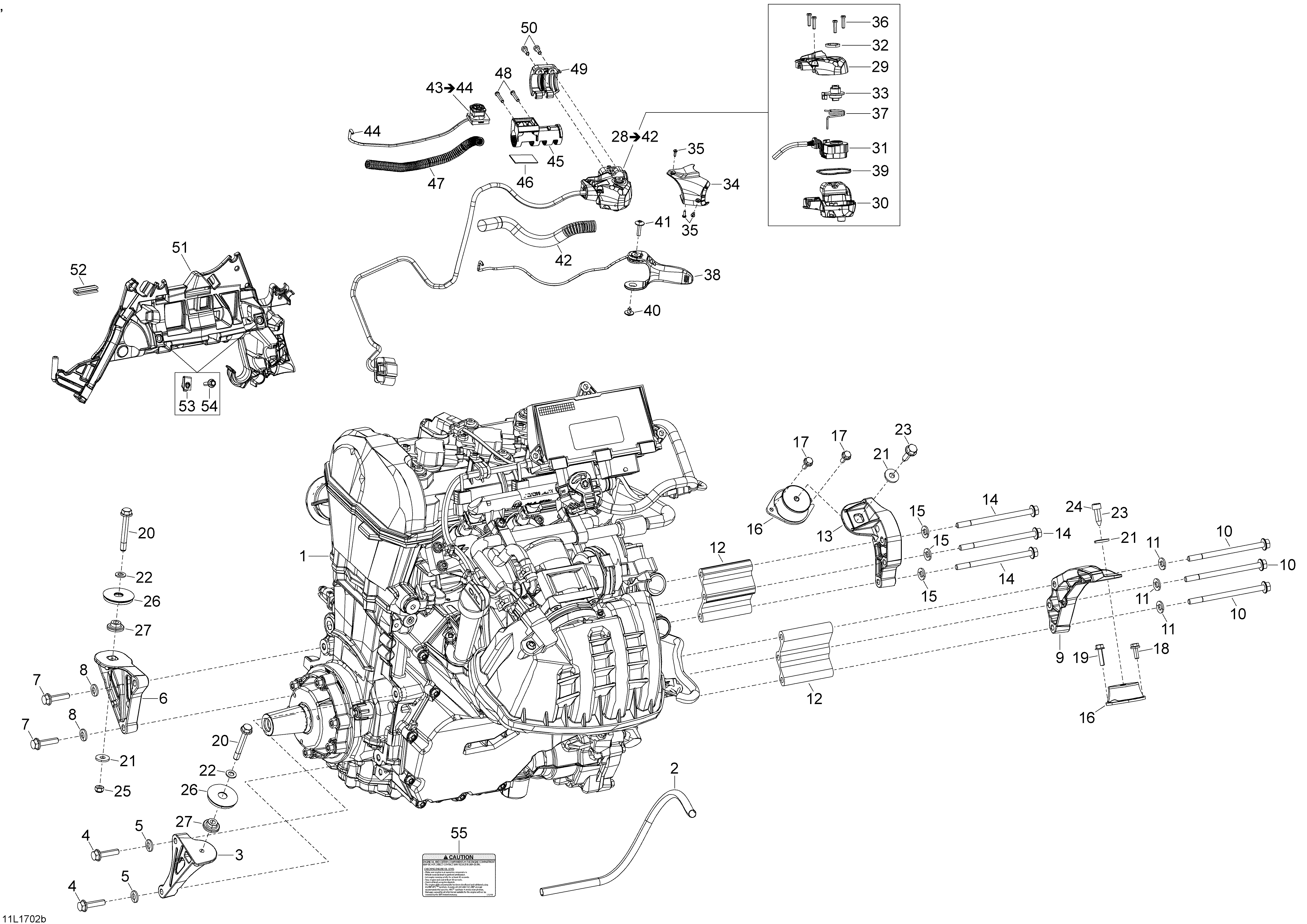

01- Engine And Engine Support 4 Strokes для BRP Lynx 49 Ranger STD - 2017

  • №
    Артикул
    Название
  • 2
    512061067 Protection Tube
    Protection Tube
  • 3
    512060660 Rear Support (PTO)
    Rear Support (PTO)
  • 4
    207583586 Hex. Flange Screw M8 x 35, Scotch Grip
    Hex. Flange Screw M8 x 35, Scotch Grip
  • 5
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 6
    512061140 Front Support (PTO)
    Front Support (PTO)
  • 7
    207583586 Hex. Flange Screw M8 x 35, Scotch Grip
    Hex. Flange Screw M8 x 35, Scotch Grip
  • 8
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 9
    512061142 Rear Support (MAG)
    Rear Support (MAG)
  • 10
    230582544 Hex. Flange Screw M8 x 125, Scotch Grip
    Hex. Flange Screw M8 x 125, Scotch Grip
  • 11
    250200157 Conical Spring Washer M8
    Conical Spring Washer M8
  • 12
    512060505 Shim
    Shim
  • 13
    512061141 Front Support (MAG)
    Front Support (MAG)
  • 14
    230582544 Hex. Flange Screw M8 x 125, Scotch Grip
    Hex. Flange Screw M8 x 125, Scotch Grip
  • 15
    250200157 Conical Spring Washer M8
    Conical Spring Washer M8
  • 16
    512060729 Rubber Mount
    Rubber Mount
  • 17
    207561644 Hex. Flange Screw M6 x 16, Scotch Grip
    Hex. Flange Screw M6 x 16, Scotch Grip
  • 18
    207561644 Hex. Flange Screw M6 x 16, Scotch Grip
    Hex. Flange Screw M6 x 16, Scotch Grip
  • 19
    207562534 Hex. Flange Screw M6 x 25, Scotch Grip
    Hex. Flange Screw M6 x 25, Scotch Grip
  • 20
    207586044 Hex. Flange Screw M8 x 60, Scotch Grip
    Hex. Flange Screw M8 x 60, Scotch Grip
  • 21
    503183200 Washer
    Washer
  • 22
    250200008 Flat Washer M8
    Flat Washer M8
  • 23
    250000257 Cone Screw M8 x 30
    Cone Screw M8 x 30
  • 25
    232581414 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 26
    512060647 Stopper
    Stopper
  • 27
    512060285 Spacer
    Spacer
  • 28
    512061113 Housing Ass'y. Includes 28 To 42
    Housing Ass'y. Includes 28 To 42
  • 32
    293250307 Shaft Seal
    Shaft Seal
  • 34
    512060862 Cap
    Cap
  • 35
    250000623 Torx Screw 2.9 x 9.5
    Torx Screw 2.9 x 9.5
  • 36
    250000671 Torx Screw
    Torx Screw
  • 41
    250000528 Torx Screw M5 x 20
    Torx Screw M5 x 20
  • 42
    515177716 Protector Tube
    Protector Tube
  • 43
    515177362 Kill Switch. Includes 43 To 44
    Kill Switch. Includes 43 To 44
  • 44
    515175232 Male Terminal
    Male Terminal
  • 45
    512060844 Support
    Support
  • 46
    294000973 Friction Tape
    Friction Tape
  • 47
    515177716 Protector Tube
    Protector Tube
  • 48
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 49
    512060987 Front Housing
    Front Housing
  • 50
    250000632 Torx Screw M5 x 14
    Torx Screw M5 x 14
  • 51
    512060994 ECU Support
    ECU Support
  • 52
    271001530 Protect Trim
    Protect Trim
  • 53
    250000079 Panel Nut M5
    Panel Nut M5
  • 54
    207552044 Hex. Flange Screw M5 x 20
    Hex. Flange Screw M5 x 20
  • 55
    516005521 Engine Oil Level Caution Decal
    Engine Oil Level Caution Decal
