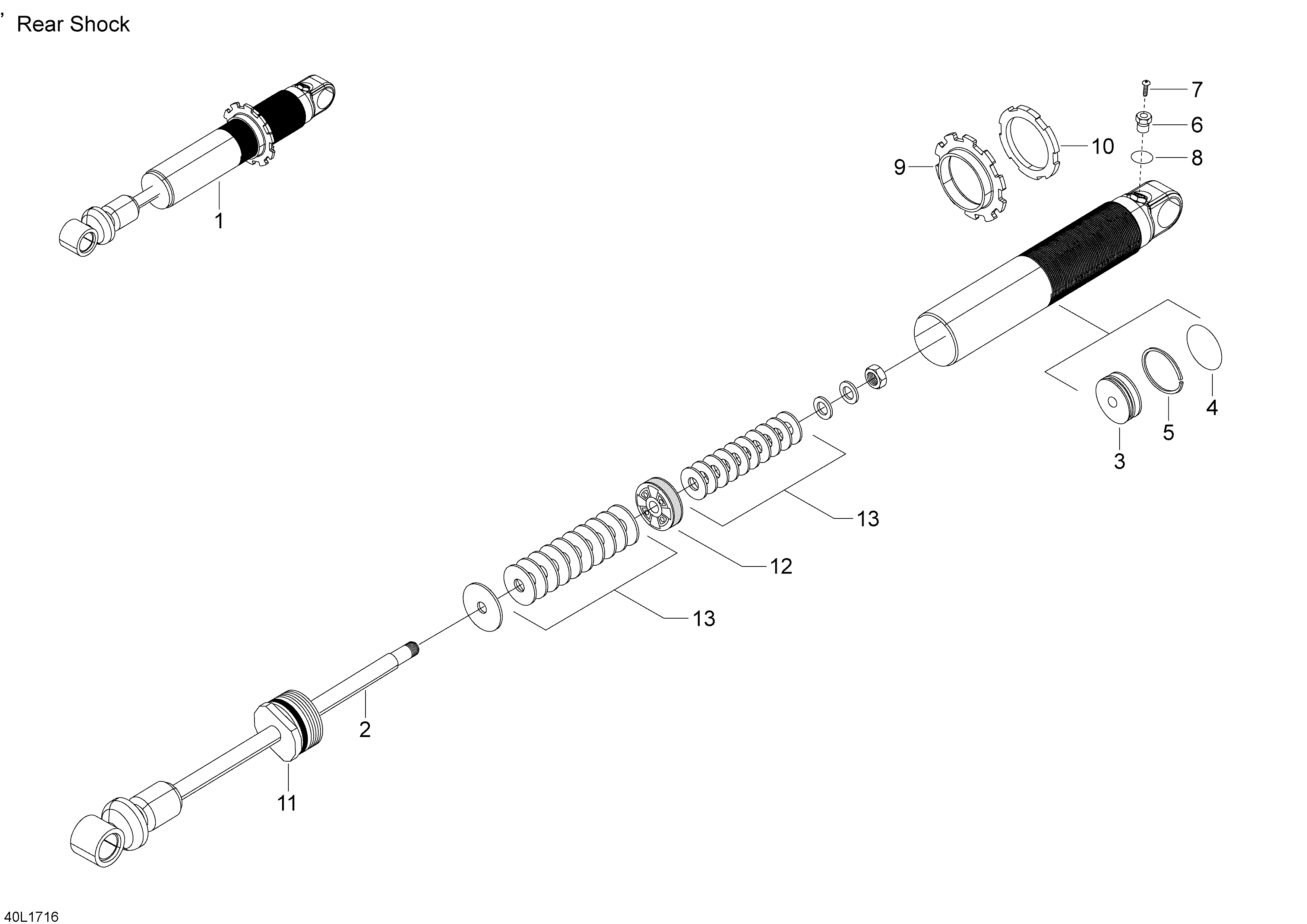

08- Take Apart Shock, Rear для BRP Lynx Commander Touratech, 2017 - 2017

  • №
    Артикул
    Название
  • 1
    503193860 Shock. Model-Commander 800
    Shock. Model-Commander 800
  • 1
    503194364 Shock. Model-Commander Touratech
    Shock. Model-Commander Touratech
  • 3
    503189008 Floating Piston
    Floating Piston
  • 4
    503189007 O Ring
    O Ring
  • 5
    503189006 Piston Ring
    Piston Ring
  • 6
    505070398 Air Valve
    Air Valve
  • 7
    505070399 Screw
    Screw
  • 8
    505070400 O Ring
    O Ring
  • 9
    706000062 Spring Guide
    Spring Guide
  • 10
    706000082 Nut
    Nut
  • 11
    230060 Seal Carrier Ass?y
    Seal Carrier Ass?y
  • 12
    230043 Piston 46 mm, 0 mm
    Piston 46 mm, 0 mm
  • 12
    619300159 Piston 46 mm, 1.2 mm
    Piston 46 mm, 1.2 mm
  • 12
    619300160 Piston 46 mm, 1.7 mm
    Piston 46 mm, 1.7 mm
  • 12
    230039 Piston 46 mm, 2.0 mm
    Piston 46 mm, 2.0 mm
  • 13
    619300060 Shim 40/46 mm, 17 x 0,114
    Shim 40/46 mm, 17 x 0,114
  • 13
    619300069 Shim 40/46 mm, 17 x 0,203
    Shim 40/46 mm, 17 x 0,203
  • 13
    619300068 Shim 40/46 mm, 18 x 0,114
    Shim 40/46 mm, 18 x 0,114
  • 13
    619300067 Shim 40/46 mm, 18 x 0,152
    Shim 40/46 mm, 18 x 0,152
  • 13
    230029 Shim 40/46 mm, 20 x 0,114
    Shim 40/46 mm, 20 x 0,114
  • 13
    230030 Shim 40/46 mm, 20 x 0,152
    Shim 40/46 mm, 20 x 0,152
  • 13
    230031 Shim 40/46 mm, 20 x 0,203
    Shim 40/46 mm, 20 x 0,203
  • 13
    230032 Shim 40/46 mm, 20 x 0,254
    Shim 40/46 mm, 20 x 0,254
  • 13
    619300097 Shim 40/46 mm, 20 x 0,305
    Shim 40/46 mm, 20 x 0,305
  • 13
    619300143 Shim 40/46 mm, 22 x 0,114
    Shim 40/46 mm, 22 x 0,114
  • 13
    619300140 Shim 40/46 mm, 22 x 0,152
    Shim 40/46 mm, 22 x 0,152
  • 13
    619300098 Shim 40/46 mm, 22 x 0,203
    Shim 40/46 mm, 22 x 0,203
  • 13
    619300134 Shim 40/46 mm, 22 x 0,254
    Shim 40/46 mm, 22 x 0,254
  • 13
    619300144 Shim 40/46 mm, 22 x 0,305
    Shim 40/46 mm, 22 x 0,305
  • 13
    619300145 Shim 40/46 mm, 24 x 0,114
    Shim 40/46 mm, 24 x 0,114
  • 13
    619300146 Shim 40/46 mm, 24 x 0,152
    Shim 40/46 mm, 24 x 0,152
  • 13
    619300147 Shim 40/46 mm, 24 x 0,203
    Shim 40/46 mm, 24 x 0,203
  • 13
    619300095 Shim 40/46 mm, 24 x 0,254
    Shim 40/46 mm, 24 x 0,254
  • 13
    619300148 Shim 40/46 mm, 24 x 0,305
    Shim 40/46 mm, 24 x 0,305
  • 13
    619300149 Shim 40/46 mm, 26 x 0,114
    Shim 40/46 mm, 26 x 0,114
  • 13
    619300141 Shim 40/46 mm, 26 x 0,152
    Shim 40/46 mm, 26 x 0,152
  • 13
    619300150 Shim 40/46 mm, 26 x 0,203
    Shim 40/46 mm, 26 x 0,203
  • 13
    619300099 Shim 40/46 mm, 26 x 0,254
    Shim 40/46 mm, 26 x 0,254
  • 13
    619300100 Shim 40/46 mm, 26 x 0,305
    Shim 40/46 mm, 26 x 0,305
  • 13
    619300101 Shim 40/46 mm, 28 x 0,114
    Shim 40/46 mm, 28 x 0,114
  • 13
    619300151 Shim 40/46 mm, 28 x 0,152
    Shim 40/46 mm, 28 x 0,152
  • 13
    619300102 Shim 40/46 mm, 28 x 0,203
    Shim 40/46 mm, 28 x 0,203
  • 13
    619300103 Shim 40/46 mm, 28 x 0,254
    Shim 40/46 mm, 28 x 0,254
  • 13
    619300152 Shim 40/46 mm, 28 x 0,305
    Shim 40/46 mm, 28 x 0,305
  • 13
    619300153 Shim 40/46 mm, 30 x 0,114
    Shim 40/46 mm, 30 x 0,114
  • 13
    619300104 Shim 40/46 mm, 30 x 0,152
    Shim 40/46 mm, 30 x 0,152
  • 13
    619300154 Shim 40/46 mm, 30 x 0,203
    Shim 40/46 mm, 30 x 0,203
  • 13
    619300113 Shim 40/46 mm, 30 x 0,254
    Shim 40/46 mm, 30 x 0,254
  • 13
    619300056 Shim 40/46 mm, 30 x 0,305
    Shim 40/46 mm, 30 x 0,305
  • 13
    230082 Shim 40/46 mm, 32 x 0,114
    Shim 40/46 mm, 32 x 0,114
  • 13
    619300137 Shim 40/46 mm, 32 x 0,152
    Shim 40/46 mm, 32 x 0,152
  • 13
    619300138 Shim 40/46 mm, 32 x 0,203
    Shim 40/46 mm, 32 x 0,203
  • 13
    619300059 Shim 40/46 mm, 32 x 0,254
    Shim 40/46 mm, 32 x 0,254
  • 13
    619300022 Shim 40/46 mm, 32 x 0,305
    Shim 40/46 mm, 32 x 0,305
  • 13
    230033 Shim 40/46 mm, 34 x 0,114
    Shim 40/46 mm, 34 x 0,114
  • 13
    230034 Shim 40/46 mm, 34 x 0,152
    Shim 40/46 mm, 34 x 0,152
  • 13
    230035 Shim 40/46 mm, 34 x 0,203
    Shim 40/46 mm, 34 x 0,203
  • 13
    230036 Shim 40/46 mm, 34 x 0,254
    Shim 40/46 mm, 34 x 0,254
  • 13
    619300070 Shim 40/46 mm, 34 x 0,305
    Shim 40/46 mm, 34 x 0,305
  • 13
    230037 Shim 40/46 mm, 36 x 0,114
    Shim 40/46 mm, 36 x 0,114
  • 13
    619300155 Shim 40/46 mm, 36 x 0,152
    Shim 40/46 mm, 36 x 0,152
  • 13
    619300142 Shim 40/46 mm, 36 x 0,203
    Shim 40/46 mm, 36 x 0,203
  • 13
    619300156 Shim 40/46 mm, 36 x 0,254
    Shim 40/46 mm, 36 x 0,254
  • 13
    619300105 Shim 40/46 mm, 36 x 0,305
    Shim 40/46 mm, 36 x 0,305
  • 13
    230040 Shim 40/46 mm, 38 x 0,152
    Shim 40/46 mm, 38 x 0,152
  • 13
    230041 Shim 40/46 mm, 38 x 0,203
    Shim 40/46 mm, 38 x 0,203
  • 13
    230042 Shim 40/46 mm, 38 x 0,254
    Shim 40/46 mm, 38 x 0,254
  • 13
    619300106 Shim 40/46 mm, 38 x 0,305
    Shim 40/46 mm, 38 x 0,305
  • 13
    619300157 Shim 40/46 mm, 40 x 0,152
    Shim 40/46 mm, 40 x 0,152
  • 13
    619300112 Shim 40/46 mm, 40 x 0,203
    Shim 40/46 mm, 40 x 0,203
  • 13
    619300158 Shim 40/46 mm, 40 x 0,254
    Shim 40/46 mm, 40 x 0,254
  • 13
    619300107 Shim 40/46 mm, 40 x 0,305
    Shim 40/46 mm, 40 x 0,305
