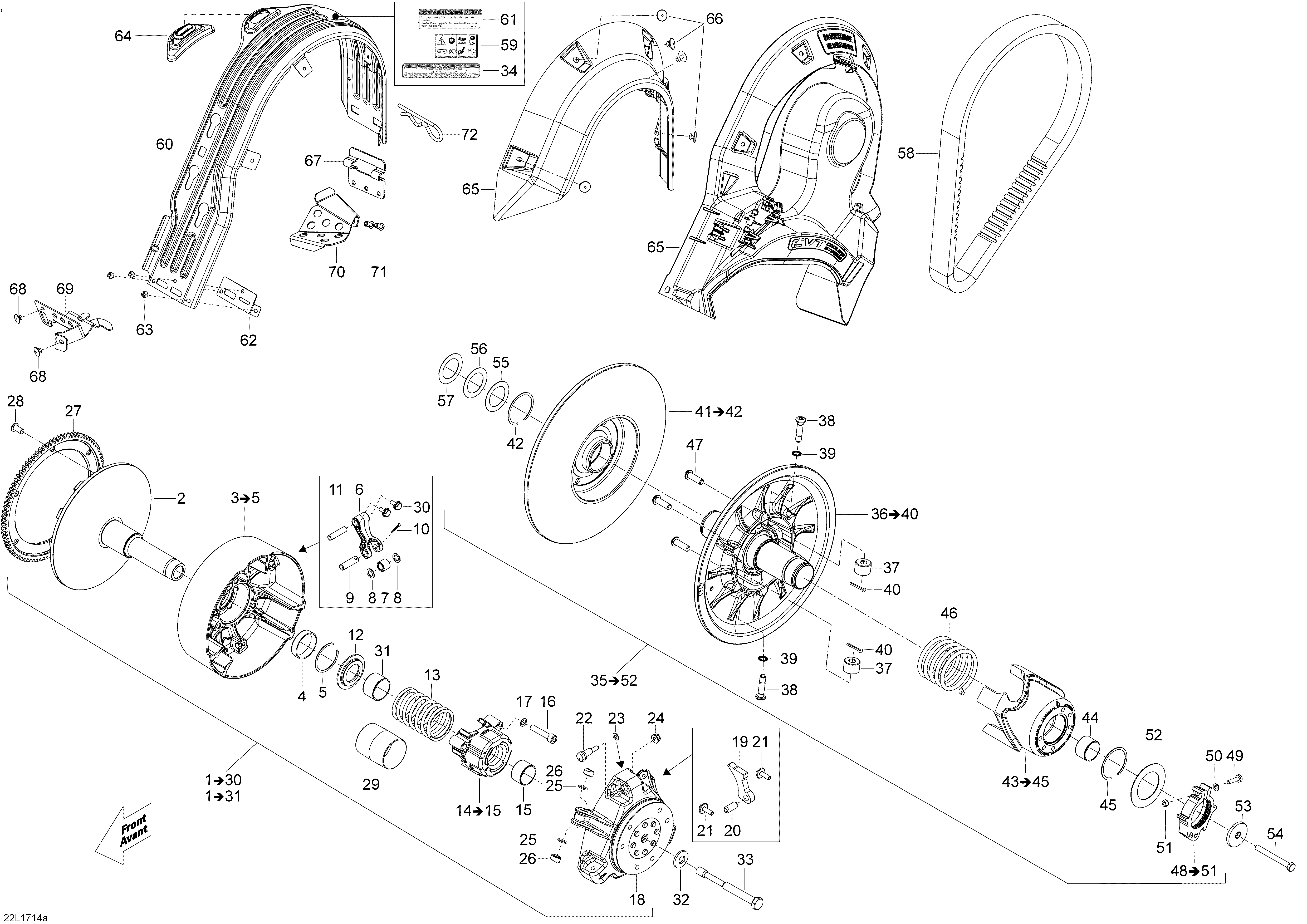

05- Pulley System 600HO E-TEC для BRP Lynx Commander STD, 2017 - 2017

№

Артикул

Название
2

417222937 Fixed Flange Ass'y

Fixed Flange Ass'y
3

417222181 Sliding Flange Ass'y. Includes 3 To 5

Sliding Flange Ass'y. Includes 3 To 5
4

417222758 Bushing

Bushing
5

293370037 Circlip

Circlip
6

417222671 Lever Ass'y

Lever Ass'y
7

417222947 Roller Ass'y

Roller Ass'y
8

417004302 Stopper Washer

Stopper Washer
9

417222594 Pin

Pin
10

250400060 Cotter Pin

Cotter Pin
11

417223164 Lever Axle

Lever Axle
12

417222312 Spring Seat

Spring Seat
13

414993000 Spring (Yellow / Red, 445-756N / 100-170lbs)

Spring (Yellow / Red, 445-756N / 100-170lbs)
14

417007500 Spring Cover Ass'y. Includes 14 To 15

Spring Cover Ass'y. Includes 14 To 15
15

417009204 Bushing

Bushing
16

205084044 Socket Head Screw M8 x 40

Socket Head Screw M8 x 40
17

250200009 Lock Washer 8mm

Lock Washer 8mm
18

417223669 Governor Cup Ass'y

Governor Cup Ass'y
19

417222444 Ramp (600)

Ramp (600)
20

250400050 Spring Pin

Spring Pin
21

250000418 Hex. Flange Screw M6 x 18

Hex. Flange Screw M6 x 18
22

417223501 Calibration Screw

Calibration Screw
23

417005600 Washer

Washer
24

233261414 Hex. Flange Nut M6

Hex. Flange Nut M6
25

732401030 O-Ring

O-Ring
26

417223271 Slider Shoe

Slider Shoe
27

417223738 Ring Gear

Ring Gear
28

250000533 Torx Screw M8 x 16

Torx Screw M8 x 16
29

417009205 Guard

Guard
30

250000412 Hex. Flange Screw M6 x 12

Hex. Flange Screw M6 x 12
30

250000416 Hex. Flange Screw M6 x 16

Hex. Flange Screw M6 x 16
32

250200144 Spring Washer

Spring Washer
33

417120000 Drive Pulley Bolt

Drive Pulley Bolt
34

516005503 Drive Pulley Bolt Decal

Drive Pulley Bolt Decal
36

417127466 Fixed Flange Ass'y. Includes 36 To 40

Fixed Flange Ass'y. Includes 36 To 40
37

417127189 Roller

Roller
38

417127294 Stud

Stud
39

250200009 Lock Washer M8

Lock Washer M8
40

250400063 Spring Pin M3 x 30

Spring Pin M3 x 30
41

417127366 Sliding Flange Ass'y. Includes 41 To 42

Sliding Flange Ass'y. Includes 41 To 42
42

293370049 Circlip

Circlip
43

417127411 Cam Ass'y (40?). Includes 43 To 45

Cam Ass'y (40?). Includes 43 To 45
44

417127318 Bushing

Bushing
45

293370049 Circlip

Circlip
46

417127243 Spring (White / White, 476-705N / 107-158lbs)

Spring (White / White, 476-705N / 107-158lbs)
47

250000757 Torx Screw M8 x 25, Scotch Grip

Torx Screw M8 x 25, Scotch Grip
48

415129604 Pulley Adjuster Ass'y. Includes 48 To 51

Pulley Adjuster Ass'y. Includes 48 To 51
49

205052544 Socket Head Screw M5 x 25

Socket Head Screw M5 x 25
50

234051410 Flat Washer M5

Flat Washer M5
51

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5
52

417127155 Washer

Washer
53

517302322 Strength Washer

Strength Washer
54

207287544 Hex. Cap Screw M8 x 75

Hex. Cap Screw M8 x 75
55

417300252 Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)

Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)
56

417300265 Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)

Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)
57

504112000 Shim. (Adjustment Part, Use If Needed)

Shim. (Adjustment Part, Use If Needed)
58

417300383 Drive Belt

Drive Belt
59

516003919 Warning Label

Warning Label
60

417300357 Belt Guard

Belt Guard
61

516006900 Belt Guard Security Decal

Belt Guard Security Decal
62

417300380 Reinforcement

Reinforcement
63

390909200 Rivet

Rivet
64

417300381 Guide

Guide
65

417300356 Side Protector

Side Protector
66

293150103 Pop Rivet 3/16''

Pop Rivet 3/16''
67

417300363 Belt Guard Bracket

Belt Guard Bracket
68

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
69

417300364 Bracket

Bracket
70

518325626 Brake Hose Cover

Brake Hose Cover
71

293150163 Rivet

Rivet
72

114045200 Hair Pin

Hair Pin
