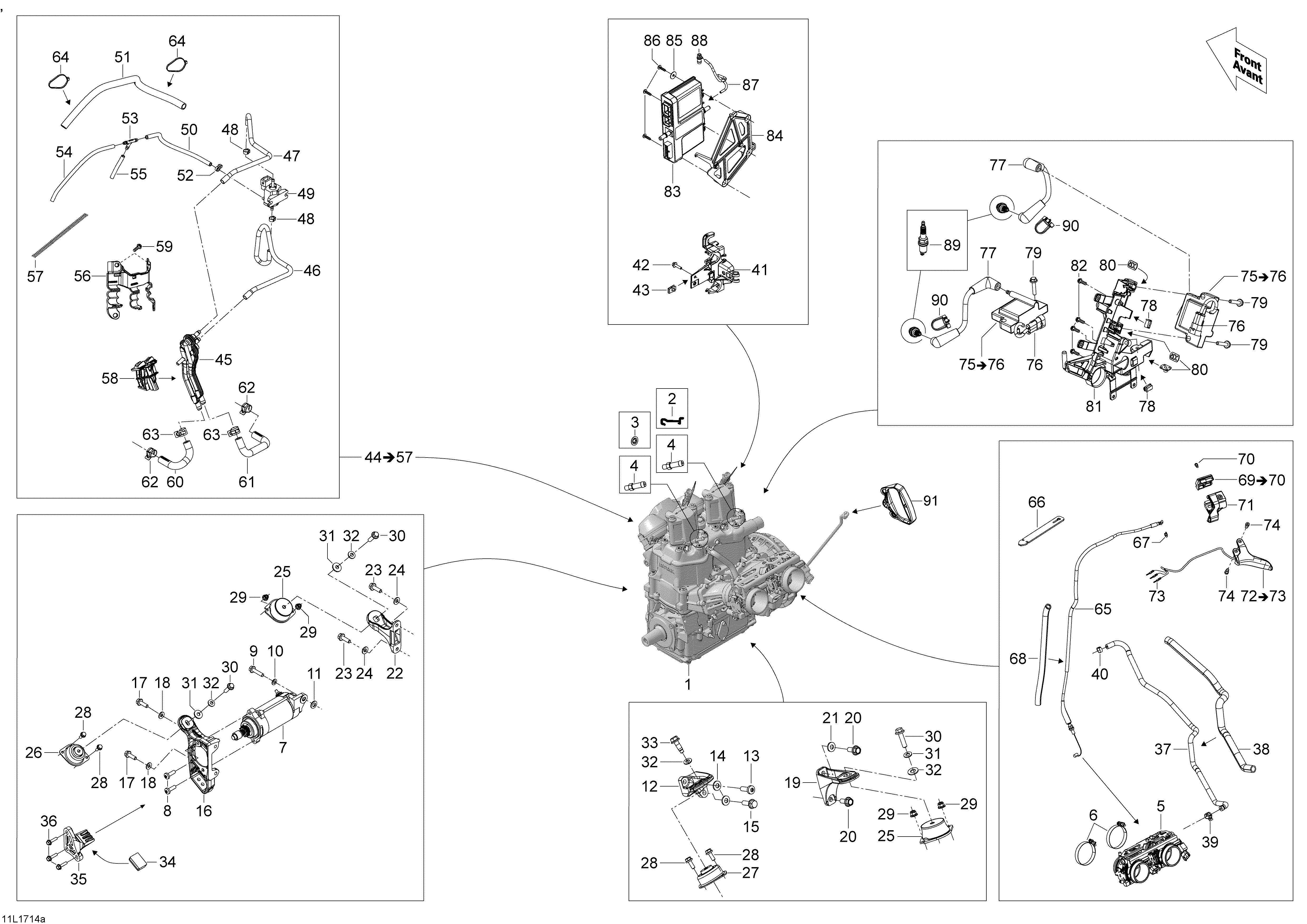

01- Engine And Engine Support для BRP Lynx Commander 800, 2017 - 2017
‹-+›
-
№АртикулНазвание
-
2515177770 LockLock
-
3732610072 Push NutPush Nut
-
4420924724 Hose NippleHose Nipple
-
5420889202 Throttle BodyThrottle Body
-
6512060943 ClampClamp
-
7515177389 Electric StarterElectric Starter
-
8250000752 Pan HD Screw M8 x 25Pan HD Screw M8 x 25
-
9207583544 Screw M8 x 35Screw M8 x 35
-
10250200008 Flat WasherFlat Washer
-
12512060478 Rear Support (PTO)Rear Support (PTO)
-
13250000752 Pan HD Screw M8 x 25Pan HD Screw M8 x 25
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
16512060714 Front Support (PTO)Front Support (PTO)
-
17207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19512060559 Rear Support (MAG)Rear Support (MAG)
-
20207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060469 Front Support (MAG)Front Support (MAG)
-
23207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060729 Rubber MountRubber Mount
-
26512060387 Rubber MountRubber Mount
-
27512060448 Rubber MountRubber Mount
-
28207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
29233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
30207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
31503183200 WasherWasher
-
32234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33250000796 Hex. Screw M8Hex. Screw M8
-
34512060766 StopperStopper
-
35512060576 Stopper SupportStopper Support
-
36207562544 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
37512060944 Throttle Body Water HoseThrottle Body Water Hose
-
38415080000 Protector TubeProtector Tube
-
39293650172 Gear ClampGear Clamp
-
40293650047 Crimp ClampCrimp Clamp
-
41512060298 Solenoid SupportSolenoid Support
-
42207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
43250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
45512060692 ManifoldManifold
-
46415080200 Hose (270mm)Hose (270mm)
-
47415080200 Hose (270mm)Hose (270mm)
-
48293650234 Crimp ClampCrimp Clamp
-
49512061078 Solenoid ValveSolenoid Valve
-
50270000374 Hose (220mm)Hose (220mm)
-
51409901700 TubingTubing
-
52293750001 Tie Rap 94mmTie Rap 94mm
-
53293710068 T-FittingT-Fitting
-
54270000374 Hose (180mm)Hose (180mm)
-
55270000374 Hose (50mm)Hose (50mm)
-
56512060827 Clip Ass?yClip Ass?y
-
57512060934 Spring (255mm)Spring (255mm)
-
58512060822 SupportSupport
-
59210251150 Hex. Flange Screw M5 x 11Hex. Flange Screw M5 x 11
-
60512060695 HoseHose
-
61512060694 HoseHose
-
62293650214 Spring ClampSpring Clamp
-
63293650047 Crimp ClampCrimp Clamp
-
64293750001 Tie Rap 94mmTie Rap 94mm
-
65512060633 Throttle CableThrottle Cable
-
66293850117 Rubber StrapRubber Strap
-
67414274500 CirclipCirclip
-
68409901700 Protector TubeProtector Tube
-
69512060859 Upper Housing. Includes 69 To 70Upper Housing. Includes 69 To 70
-
70414440800 Set Screw M8 x 10Set Screw M8 x 10
-
71512060860 Lower HousingLower Housing
-
72512061051 Throttle Handle Ass'y. Includes 72 To 73Throttle Handle Ass'y. Includes 72 To 73
-
73515175232 Male TerminalMale Terminal
-
74732601143 Shoulder ScrewShoulder Screw
-
75512060953 Ignition Coil. Includes 75 To 76Ignition Coil. Includes 75 To 76
-
76710000568 HousingHousing
-
77512061126 Ignition CableIgnition Cable
-
78710000992 ClipClip
-
79250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
80293100003 NutNut
-
81512060888 SupportSupport
-
82241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
83512060780 Calibrated Module 600 E-TECCalibrated Module 600 E-TEC
-
83512061061 Calibrated Module 800 E-TECCalibrated Module 800 E-TEC
-
84512060858 Calibrated Module SupportCalibrated Module Support
-
85250200040 Flat WasherFlat Washer
-
86250000760 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
87415080100 Hose (300mm)Hose (300mm)
-
88414814100 Male ConnectorMale Connector
-
89415129484 Spark Plug (PFR7AB)Spark Plug (PFR7AB)
-
90512060993 ClampClamp
