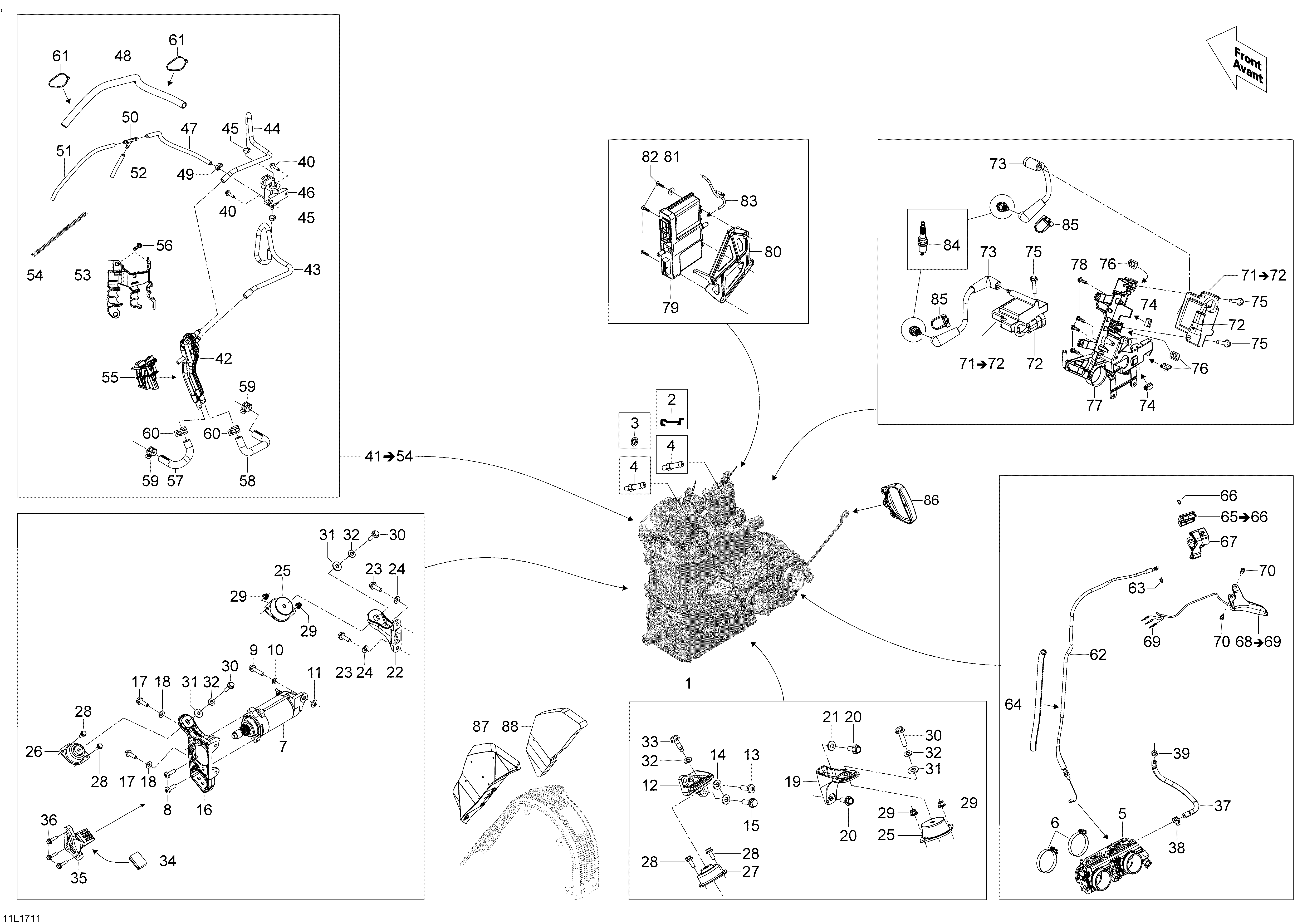

01- Engine And Engine Support для BRP Lynx BoonDocker STD, 2017 - 2017
‹-+›
-
№АртикулНазвание
-
2515177770 LockLock
-
3732610072 Push NutPush Nut
-
4420924724 Hose NippleHose Nipple
-
5420889201 Throttle Body. Model-600 E-TECThrottle Body. Model-600 E-TEC
-
5420889202 Throttle Body. Model-800 E-TECThrottle Body. Model-800 E-TEC
-
6293650158 Clamp. Model-600 E-TECClamp. Model-600 E-TEC
-
6512060943 Clamp. Model-800 E-TECClamp. Model-800 E-TEC
-
7515177389 Electric Starter. Model-Electric StartElectric Starter. Model-Electric Start
-
8250000752 Pan HD Torx Screw M8 x 25. Model-Electric StartPan HD Torx Screw M8 x 25. Model-Electric Start
-
9207583544 Hex. Flange Screw M8 x 35. Model-Electric StartHex. Flange Screw M8 x 35. Model-Electric Start
-
10250200008 Flat Washer. Model-Electric StartFlat Washer. Model-Electric Start
-
11515176500 Washer. Model-Electric Start - 600 E-TECWasher. Model-Electric Start - 600 E-TEC
-
12512060478 Rear Support (PTO)Rear Support (PTO)
-
13250000752 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
16512060699 Front Support (PTO). Model-600 E-TECFront Support (PTO). Model-600 E-TEC
-
16512060714 Front Support (PTO). Model-800 E-TECFront Support (PTO). Model-800 E-TEC
-
17207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19512060559 Rear Support (MAG)Rear Support (MAG)
-
20207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060469 Front Support (MAG)Front Support (MAG)
-
23207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060729 Rubber MountRubber Mount
-
26512060387 Rubber MountRubber Mount
-
27512060448 Rubber MountRubber Mount
-
28207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
29233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
30207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
31503183200 WasherWasher
-
32234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33250000796 Hex. Screw M8Hex. Screw M8
-
34512060627 Stopper. Model-600 E-TECStopper. Model-600 E-TEC
-
34512060766 Stopper. Model-800 E-TECStopper. Model-800 E-TEC
-
35512060576 Stopper SupportStopper Support
-
36207562544 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
37512060944 HoseHose
-
38293650172 ClampClamp
-
39293650046 ClampClamp
-
40241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
42512060692 ManifoldManifold
-
43415080200 Hose (275mm)Hose (275mm)
-
44415080200 Hose (410mm)Hose (410mm)
-
45293650234 Crimp ClampCrimp Clamp
-
46512061078 Solenoid ValveSolenoid Valve
-
47270000374 Hose (220mm)Hose (220mm)
-
48409901700 TubingTubing
-
49293750001 Tie Rap 94mmTie Rap 94mm
-
50293710068 T-FittingT-Fitting
-
51270000374 Hose (180mm)Hose (180mm)
-
52270000374 Hose (50mm)Hose (50mm)
-
53512060827 Clip Ass?yClip Ass?y
-
54512060930 SpringSpring
-
55512060769 Support. Model-600 E-TECSupport. Model-600 E-TEC
-
55512060822 Support. Model-800 E-TECSupport. Model-800 E-TEC
-
56210251150 Hex. HD Forming Screw M5 x 11Hex. HD Forming Screw M5 x 11
-
57512060695 HoseHose
-
58512060694 HoseHose
-
59293650214 Spring ClampSpring Clamp
-
60293650047 Crimp ClampCrimp Clamp
-
61293750001 Tie Rap 94mmTie Rap 94mm
-
62512060668 Throttle CableThrottle Cable
-
63414274500 CirclipCirclip
-
64409901700 Tubing 9mmTubing 9mm
-
65512060859 Upper Housing. Includes 65 To 66Upper Housing. Includes 65 To 66
-
66414440800 Set Screw M8 x 10Set Screw M8 x 10
-
67512060860 Lower HousingLower Housing
-
68512061051 Throttle Handle Ass'y. Includes 68 To 69Throttle Handle Ass'y. Includes 68 To 69
-
69515175232 Male TerminalMale Terminal
-
70732601143 Shoulder ScrewShoulder Screw
-
71512060953 Ignition Coil. Includes 71 To 72Ignition Coil. Includes 71 To 72
-
72710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
73512061126 Ignition CableIgnition Cable
-
74710000992 ClipClip
-
75250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
76293100003 NutNut
-
77512060888 SupportSupport
-
78241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
79512060780 Calibrated Module 600 E-TECCalibrated Module 600 E-TEC
-
79512061061 Calibrated Module 800 E-TECCalibrated Module 800 E-TEC
-
80512060858 Calibrated Module SupportCalibrated Module Support
-
81250200040 Flat WasherFlat Washer
-
82250000760 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
83415080100 HoseHose
-
84415129375 Spark Plug. Model-600 E-TECSpark Plug. Model-600 E-TEC
-
84415129484 Spark Plug (PFR7AB). Model-800 E-TECSpark Plug (PFR7AB). Model-800 E-TEC
-
85512060993 ClampClamp
-
86512060136 Starter GripStarter Grip
-
87512060847 Noise ShieldNoise Shield
-
88512060958 Noise FoamNoise Foam
