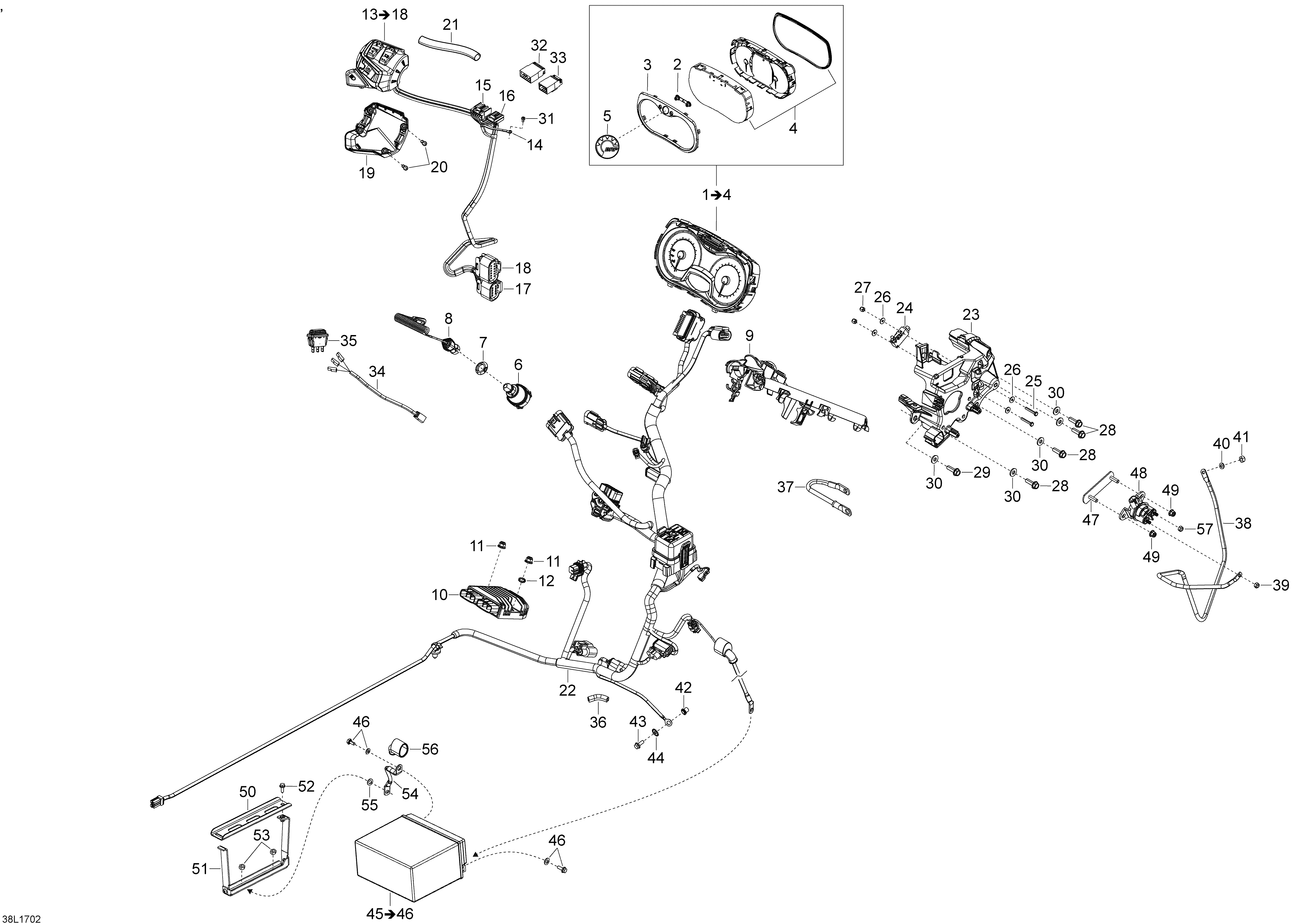

10- Electrical System для BRP Lynx Adventure LX - 2017
‹-+›
-
№АртикулНазвание
-
1515177911 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP LogoBRP Logo
-
6515178225 DESS SwitchDESS Switch
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515178044 DESS CapDESS Cap
-
8515178046 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
9515177134 PlatePlate
-
10710001103 RegulatorRegulator
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12234461608 Serrated Lock WasherSerrated Lock Washer
-
13515178198 LH Switch Housing. Includes 13 To 18LH Switch Housing. Includes 13 To 18
-
14515175504 Ring TerminalRing Terminal
-
15515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
15515175231 Female TerminalFemale Terminal
-
16515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
16515175231 Female TerminalFemale Terminal
-
17710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
18710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
19515177147 Housing PlateHousing Plate
-
20250000671 Torx Screw #8-18Torx Screw #8-18
-
21415129879 Protector TubeProtector Tube
-
22515178117 Main HarnessMain Harness
-
23515177347 PlatePlate
-
24515177460 Switch Ass'ySwitch Ass'y
-
25207132044 Hex. Cap Screw M3 x 20Hex. Cap Screw M3 x 20
-
26234032600 Flat WasherFlat Washer
-
27232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
28210262040 Forming Screw M6 x 20Forming Screw M6 x 20
-
29210262550 Forming Screw M6 x 25Forming Screw M6 x 25
-
30250200039 Flat WasherFlat Washer
-
31250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
32515175662 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
33515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
34515177568 ECO HarnessECO Harness
-
35515177569 ECO Rocker SwitchECO Rocker Switch
-
36520001525 TrimTrim
-
37515177014 Ground WireGround Wire
-
38515177427 Battery WireBattery Wire
-
39232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
40234061410 Flat WasherFlat Washer
-
41232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
42233261414 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
43207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
44250200041 Serrated Lock WasherSerrated Lock Washer
-
45415129898 Battery 18AHHD. Includes 45 To 46Battery 18AHHD. Includes 45 To 46
-
46250000282 Battery Fastener KitBattery Fastener Kit
-
47515177740 Relay SupportRelay Support
-
48278003012 Starter RelayStarter Relay
-
49233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
50518327281 Battery StrapBattery Strap
-
51518327282 Battery StrapBattery Strap
-
52207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
53233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
54515176780 Ground WireGround Wire
-
55234061410 Flat WasherFlat Washer
-
56570151000 Protection CapProtection Cap
-
57232561434 Elastic Stop Nut M6Elastic Stop Nut M6
