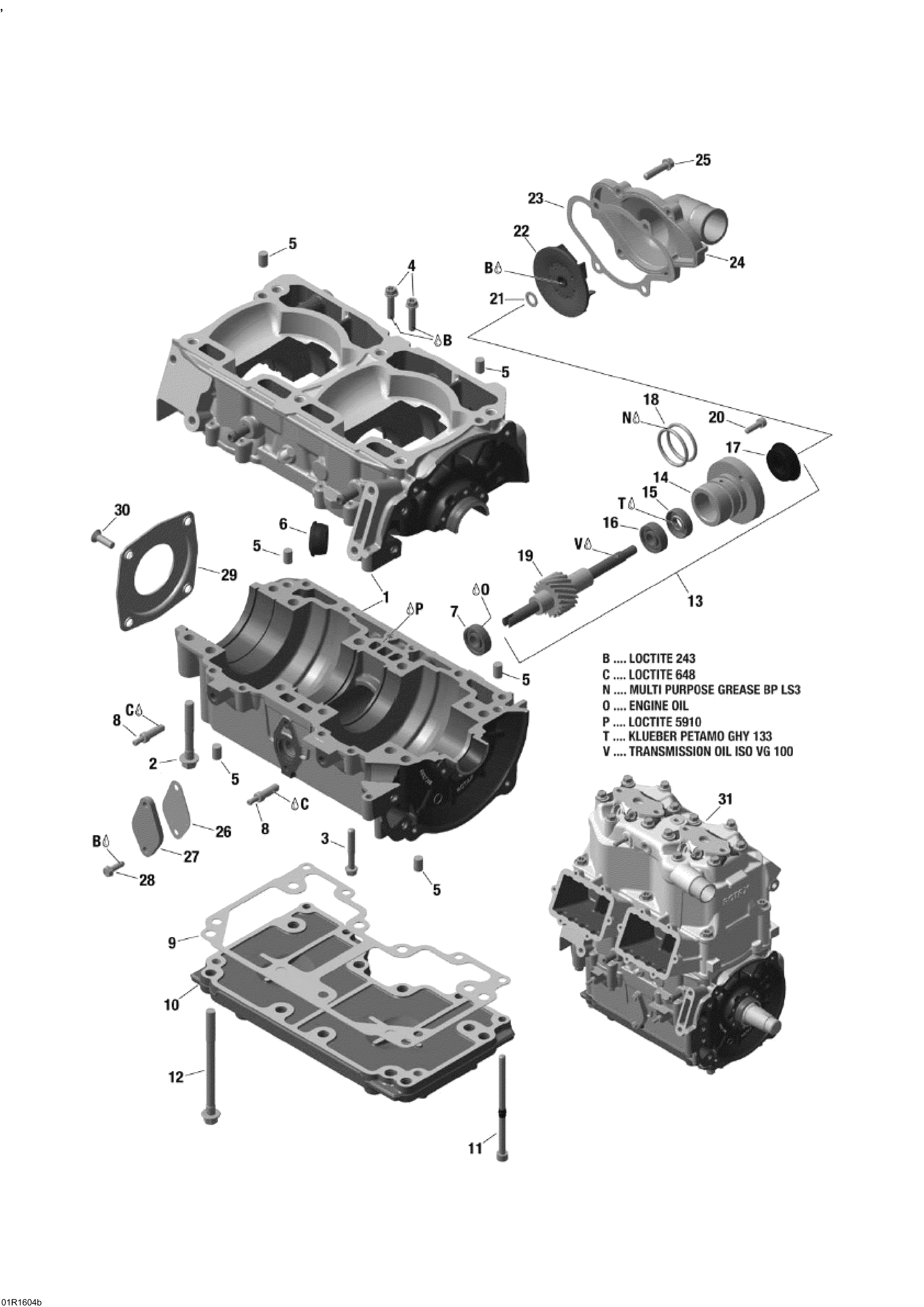

01- Crankcase And Water Pump - 800 E-TEC для BRP Lynx 69 YETI (2-Stroke) - 2016

№

Артикул

Название
1

420893084 Crankcase Ass'y. Includes 1 To 7

Crankcase Ass'y. Includes 1 To 7

410 200 ₽
2

420941627 Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm

Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm

2 770 ₽
3

420440282 Flanged Torx Screw M6 x 40. Tightening Torque 10-12 Nm

Flanged Torx Screw M6 x 40. Tightening Torque 10-12 Nm

1 120 ₽
4

420440234 Torx Screw M6 x 25. Tightening Torque 10-12 Nm

Torx Screw M6 x 25. Tightening Torque 10-12 Nm

1 120 ₽
5

420632010 Center Pin 8 x 12

Center Pin 8 x 12

1 450 ₽
6

420660890 Cable Grommet

Cable Grommet

1 070 ₽
7

420232100 Ball Bearing

Ball Bearing

10 030 ₽
8

420956070 Check Valve

Check Valve

7 740 ₽
9

420430070 Gasket Engine Support. Included In Gasket Kit

Gasket Engine Support. Included In Gasket Kit

7 740 ₽
10

420812683 Base Plate

Base Plate

8 780 ₽
11

420241606 Socket HD Screw M6 x 100. Tightening Torque 10-12 Nm

Socket HD Screw M6 x 100. Tightening Torque 10-12 Nm

1 820 ₽
12

420941517 Hex. Screw M8 x 105. Tightening Torque 28-30 Nm

Hex. Screw M8 x 105. Tightening Torque 28-30 Nm

900 ₽
13

420837676 Water Pump/Oil Pump Shaft Ass'y. Includes 13 To 19

Water Pump/Oil Pump Shaft Ass'y. Includes 13 To 19

60 840 ₽
15

420230195 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

5 600 ₽
16

420232100 Ball Bearing

Ball Bearing

10 030 ₽
17

420650370 Oil Seal

Oil Seal

25 480 ₽
18

420950890 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

1 540 ₽
20

420840511 Socket Head Screw M5 x 16. Tightening Torque 5-6 Nm

Socket Head Screw M5 x 16. Tightening Torque 5-6 Nm

670 ₽
21

420944033 Washer

Washer

160 ₽
22

420922805 Water Impeller. Tightening Torque 14-16 Nm

Water Impeller. Tightening Torque 14-16 Nm

12 360 ₽
23

420430050 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

4 520 ₽
24

420822280 Water Pump Housing

Water Pump Housing

20 130 ₽
25

420440234 Torx Screw M6 x 25. Tightening Torque 10-12 Nm

Torx Screw M6 x 25. Tightening Torque 10-12 Nm

1 120 ₽
26

420931566 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

3 090 ₽
27

420810827 Cover Plate

Cover Plate

1 250 ₽
28

420941925 Tapping Screw M5 x 16. Tightening Torque 5-6 Nm

Tapping Screw M5 x 16. Tightening Torque 5-6 Nm

180 ₽
29

420812420 Cover

Cover

590 ₽
30

420941436 Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm

Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm

1 120 ₽
31

300079755 Short Block Engine 797 E-TEC

Short Block Engine 797 E-TEC

337 070 ₽
