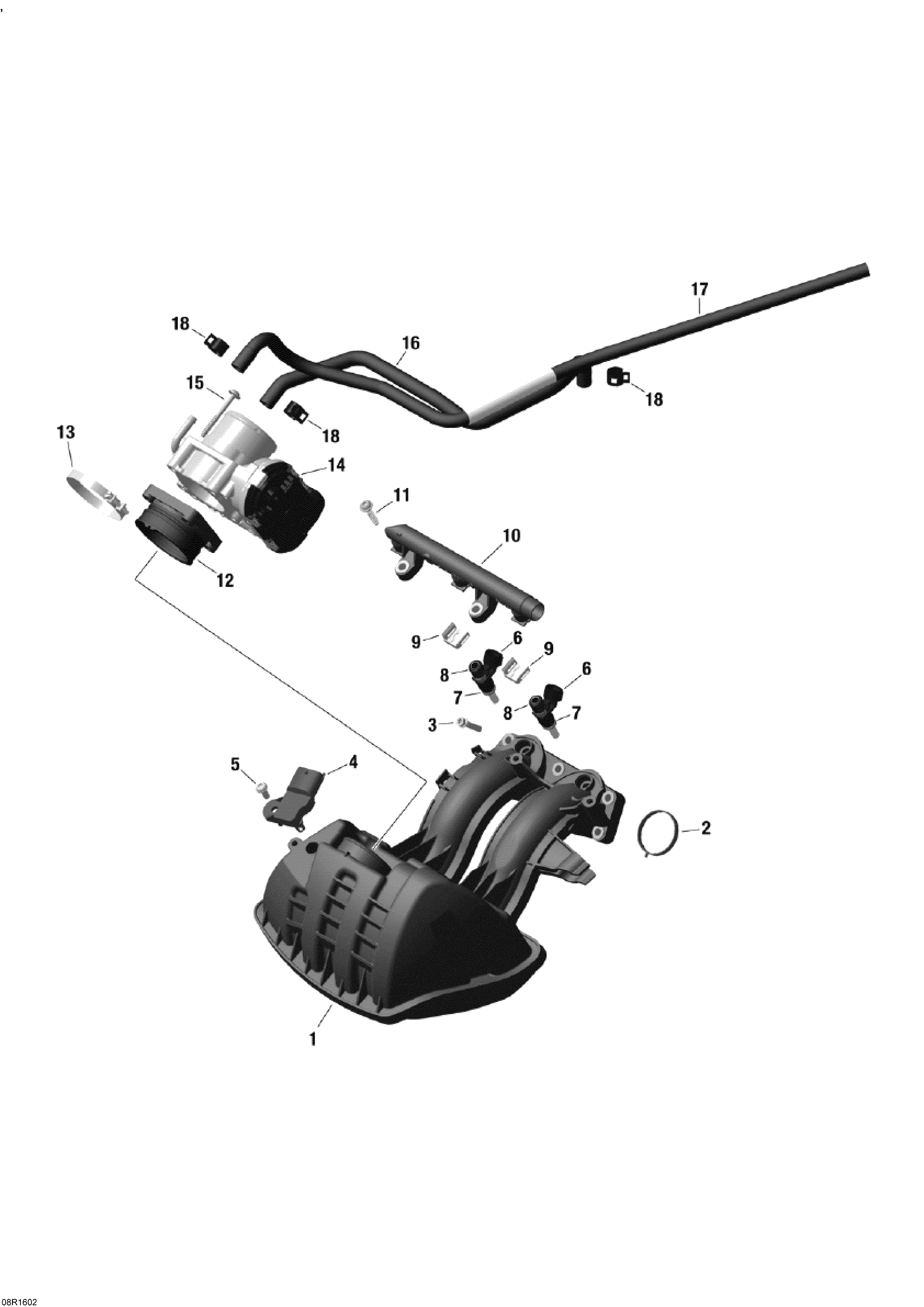

02- Air Intake Manifold And Throttle Body - 600 ACE для BRP Lynx 59 YETI (4-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    420867025 Airbox Ass'y. Includes 1 To 2
    Airbox Ass'y. Includes 1 To 2
  • 2
    420431660 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
    Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
  • 4
    707000995 Pressure/Temp Sensor
    Pressure/Temp Sensor
  • 5
    420641588 Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%
    Torx PT Screw M6 x 16. Tightening Torque 6 Nm +/- 12%
  • 6
    420874838 Injection Valve (Deka VII Type 0). Includes 6 To 8
    Injection Valve (Deka VII Type 0). Includes 6 To 8
  • 7
    420431890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 8
    420631220 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 9
    420853030 Injector Clip
    Injector Clip
  • 10
    420874960 Fuel Rail
    Fuel Rail
  • 11
    420441573 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
    Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
  • 12
    420867110 Connecting Socket
    Connecting Socket
  • 13
    420251830 Hose Clamp. Tightening Torque 0,9 Nm +/- 12%
    Hose Clamp. Tightening Torque 0,9 Nm +/- 12%
  • 14
    420893148 Throttle Body Ass'y
    Throttle Body Ass'y
  • 15
    420441588 Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%
    Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%
  • 16
    420201490 Molded Hose
    Molded Hose
  • 17
    420201495 Molded Hose
    Molded Hose
  • 18
    420853511 Spring Clamp
    Spring Clamp
