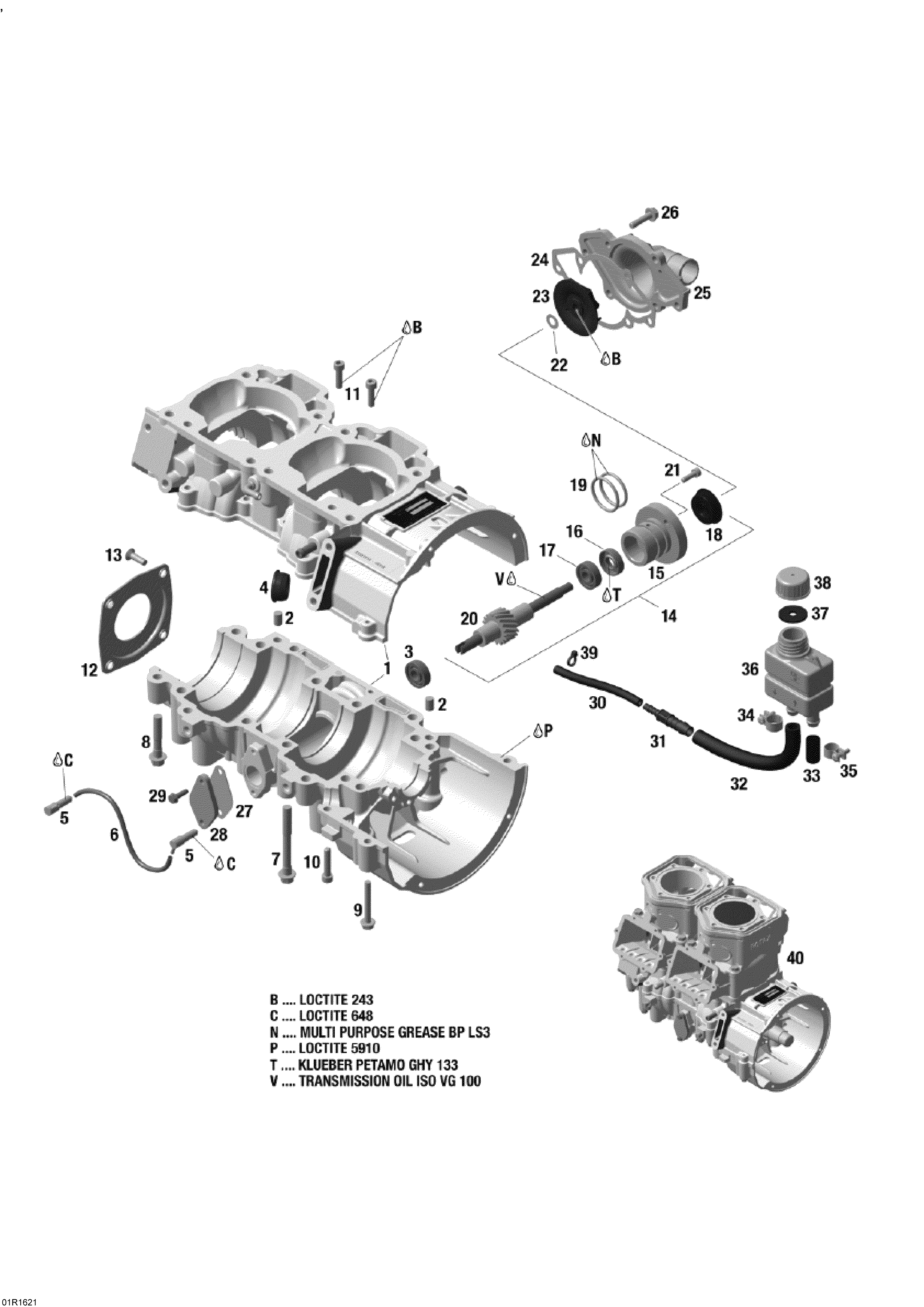

01- Crankcase And Water Pump - 600 RS для BRP Lynx Rave RS (2-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    420893291 Crankcase Ass'y. Includes 1 To 6
    Crankcase Ass'y. Includes 1 To 6
  • 2
    420632010 Center Pin 8 x 12
    Center Pin 8 x 12
  • 3
    420232100 Ball Bearing
    Ball Bearing
  • 4
    420860965 Cable Grommet
    Cable Grommet
  • 5
    420956510 Check Valve
    Check Valve
  • 6
    414413800 Oil Hose
    Oil Hose
  • 7
    420640836 Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm
    Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm
  • 8
    420640432 Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm
    Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm
  • 9
    420640311 Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm
    Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm
  • 10
    205063044 Allen Screw M6 x 30. Tightening Torque 8-10 Nm
    Allen Screw M6 x 30. Tightening Torque 8-10 Nm
  • 11
    420840401 Allen Screw M6 x 22. Tightening Torque 8-10 Nm
    Allen Screw M6 x 22. Tightening Torque 8-10 Nm
  • 12
    420812420 Oil Seal Cover
    Oil Seal Cover
  • 13
    420941436 Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm
    Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm
  • 14
    420837421 Water Pump/Oil Pump Ass'y. Includes 14 To 20
    Water Pump/Oil Pump Ass'y. Includes 14 To 20
  • 16
    420230195 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 17
    420232100 Ball Bearing
    Ball Bearing
  • 18
    420650370 Oil Seal
    Oil Seal
  • 19
    420950890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 21
    420840511 Socket Head Screw M5 x 16. Tightening Torque 5-6 Nm
    Socket Head Screw M5 x 16. Tightening Torque 5-6 Nm
  • 22
    420227945 Washer
    Washer
  • 23
    420222505 Water Impeller. Tightening Torque 4-5 Nm
    Water Impeller. Tightening Torque 4-5 Nm
  • 24
    420931810 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 25
    420922630 Water Pump Housing
    Water Pump Housing
  • 26
    420240034 Hex. Screw M6 x 25. Tightening Torque 10-12 Nm
    Hex. Screw M6 x 25. Tightening Torque 10-12 Nm
  • 27
    420931566 Gasket
    Gasket
  • 28
    420810827 Cover Plate
    Cover Plate
  • 29
    420941925 Tapping Screw M5 x 16. Tightening Torque 5-6 Nm
    Tapping Screw M5 x 16. Tightening Torque 5-6 Nm
  • 30
    415110000 Polyurethane Hose 5.2 mm
    Polyurethane Hose 5.2 mm
  • 31
    420874370 Fitting
    Fitting
  • 32
    420956239 Oil Tube
    Oil Tube
  • 33
    420960279 Closure Cap
    Closure Cap
  • 34
    420951260 Clamp
    Clamp
  • 35
    420951241 Clamp
    Clamp
  • 36
    420956240 Oil Tank Ass'y. Includes 36 To 38
    Oil Tank Ass'y. Includes 36 To 38
  • 37
    420850350 Rubber Gasket
    Rubber Gasket
  • 38
    420956250 Oil Tank Cap
    Oil Tank Cap
  • 39
    420866710 Tie Rap
    Tie Rap
  • 40
    300059325 Short Block 593 RS
    Short Block 593 RS
