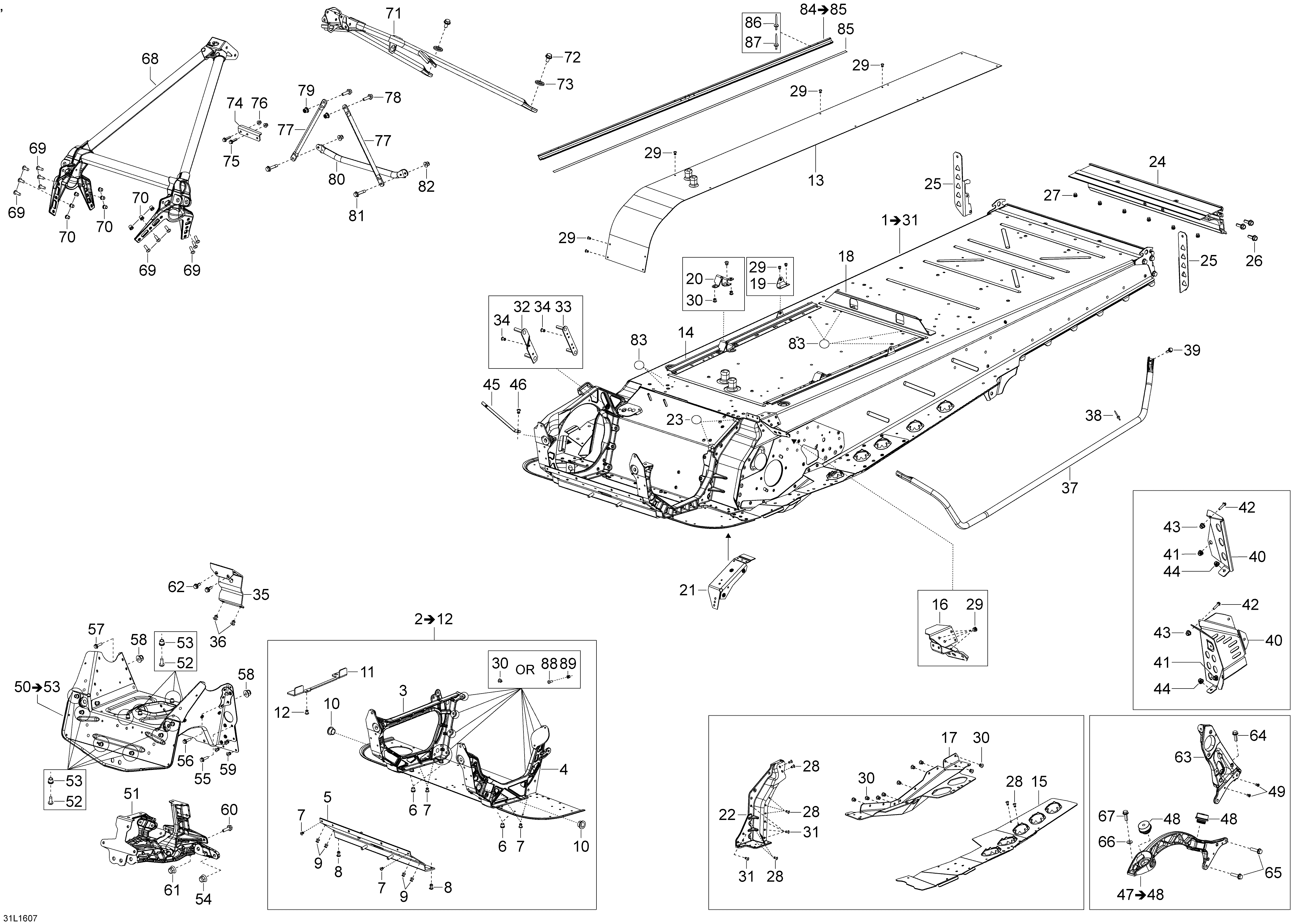

09- Frame для BRP Lynx 69 Ranger (4-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    518328854 Black Frame. Includes 1 To 31
    Black Frame. Includes 1 To 31
  • 2
    518328187 Module E. Includes 2 To 12
    Module E. Includes 2 To 12
  • 3
    518326328 RH Member
    RH Member
  • 4
    518326330 LH Member
    LH Member
  • 5
    518326198 Front Member
    Front Member
  • 6
    605636002 Clinch Nut Hexsert M8
    Clinch Nut Hexsert M8
  • 7
    390909100 Rivet
    Rivet
  • 8
    293150120 Rivet
    Rivet
  • 9
    293150119 Rivet
    Rivet
  • 10
    505072690 Bushing
    Bushing
  • 11
    518327448 Muffler Support
    Muffler Support
  • 12
    293150163 Rivet
    Rivet
  • 13
    509000976 Tunnel Radiator
    Tunnel Radiator
  • 14
    518326107 Fastening Rail
    Fastening Rail
  • 15
    518328852 LH Footrest
    LH Footrest
  • 15
    518328853 RH Footrest
    RH Footrest
  • 16
    518327884 Fastening Bracket
    Fastening Bracket
  • 17
    518328014 LH Drive Axle Cover
    LH Drive Axle Cover
  • 17
    518328015 RH Drive Axle Cover
    RH Drive Axle Cover
  • 18
    518327003 Battery Support
    Battery Support
  • 19
    518327457 Seat Box Bracket
    Seat Box Bracket
  • 20
    518326109 LH Support Tube Bracket
    LH Support Tube Bracket
  • 20
    518326110 RH Support Tube Bracket
    RH Support Tube Bracket
  • 21
    518328096 Clinch Nut Plate
    Clinch Nut Plate
  • 22
    518325643 LH Frame Corner
    LH Frame Corner
  • 22
    518325644 RH Frame Corner
    RH Frame Corner
  • 23
    518325560 Adhesive Patch
    Adhesive Patch
  • 24
    518328749 Rear Profile
    Rear Profile
  • 25
    511000858 LH Rear Rack Support
    LH Rear Rack Support
  • 25
    511000859 RH Rear Rack Support
    RH Rear Rack Support
  • 26
    207582586 Hex. Flange Screw M8 x 25
    Hex. Flange Screw M8 x 25
  • 27
    293150174 Rivet
    Rivet
  • 28
    390909100 Rivet
    Rivet
  • 29
    390909200 Rivet
    Rivet
  • 30
    293150119 Rivet
    Rivet
  • 31
    293150183 Rivet
    Rivet
  • 32
    518326123 Front Gearbox Counter Plate
    Front Gearbox Counter Plate
  • 33
    518326124 Rear Gearbox Counter Plate
    Rear Gearbox Counter Plate
  • 34
    390402200 Pop Rivet 3/16
    Pop Rivet 3/16
  • 35
    518325371 MAG Engine Support
    MAG Engine Support
  • 36
    293150119 Rivet
    Rivet
  • 37
    518327595 LH Footboard Support Tube
    LH Footboard Support Tube
  • 37
    518327596 RH Footboard Support Tube
    RH Footboard Support Tube
  • 38
    390909100 Rivet
    Rivet
  • 39
    207662056 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 40
    518328569 Black LH Toe Hook
    Black LH Toe Hook
  • 40
    518328571 Black RH Toe Hook
    Black RH Toe Hook
  • 41
    605636003 Clinch Nut M6
    Clinch Nut M6
  • 42
    207662056 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 43
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 44
    233261414 Hex. Flange Elastic Nut M6
    Hex. Flange Elastic Nut M6
  • 45
    514054846 Spring Bracket
    Spring Bracket
  • 46
    390909200 Rivet
    Rivet
  • 47
    518327392 LH Brace Ass'y. Includes 47 To 48
    LH Brace Ass'y. Includes 47 To 48
  • 48
    512060295 Rubber Mount
    Rubber Mount
  • 49
    36087 Rivet
    Rivet
  • 50
    518328395 Cross Member. Includes 50 To 53
    Cross Member. Includes 50 To 53
  • 51
    518327487 Support
    Support
  • 52
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 53
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 54
    233281414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 55
    210262050 Forming Screw M6 x 20
    Forming Screw M6 x 20
  • 56
    207662544 Hex. Flange Screw M6 x 25
    Hex. Flange Screw M6 x 25
  • 57
    207662544 Hex. Flange Screw M6 x 25
    Hex. Flange Screw M6 x 25
  • 58
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 59
    293150163 Rivet
    Rivet
  • 60
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 61
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 62
    207661644 Hex. Flange Screw M6 x 16
    Hex. Flange Screw M6 x 16
  • 63
    518328434 Pulley Support
    Pulley Support
  • 64
    207582586 Hex. Flange Screw M8 x 25
    Hex. Flange Screw M8 x 25
  • 65
    207583586 Hex. Flange Screw M8 x 25
    Hex. Flange Screw M8 x 25
  • 66
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 67
    207582586 Hex. Flange Screw M8 x 25
    Hex. Flange Screw M8 x 25
  • 68
    518326970 Front Member Ass'y
    Front Member Ass'y
  • 69
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 70
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 71
    518326103 Upper Support Tube
    Upper Support Tube
  • 72
    207662056 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 74
    518327029 Extension Plate
    Extension Plate
  • 75
    207662544 Hex. Flange Screw M6 x 25
    Hex. Flange Screw M6 x 25
  • 76
    233261414 Hex. Flange Nut M6
    Hex. Flange Nut M6
  • 77
    518325114 Upper Column Support
    Upper Column Support
  • 78
    207662056 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 79
    233261416 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 80
    518326657 Center Column Support
    Center Column Support
  • 81
    207662556 Hex. Flange Screw M6 x 25
    Hex. Flange Screw M6 x 25
  • 82
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 83
    518325560 Adhesive Patch
    Adhesive Patch
  • 84
    860200737 Radiator Protector Kit. Includes 84 To 85
    Radiator Protector Kit. Includes 84 To 85
  • 85
    518327389 Protector
    Protector
  • 86
    36108 Rivet
    Rivet
  • 87
    390909200 Rivet
    Rivet
  • 88
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 89
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
