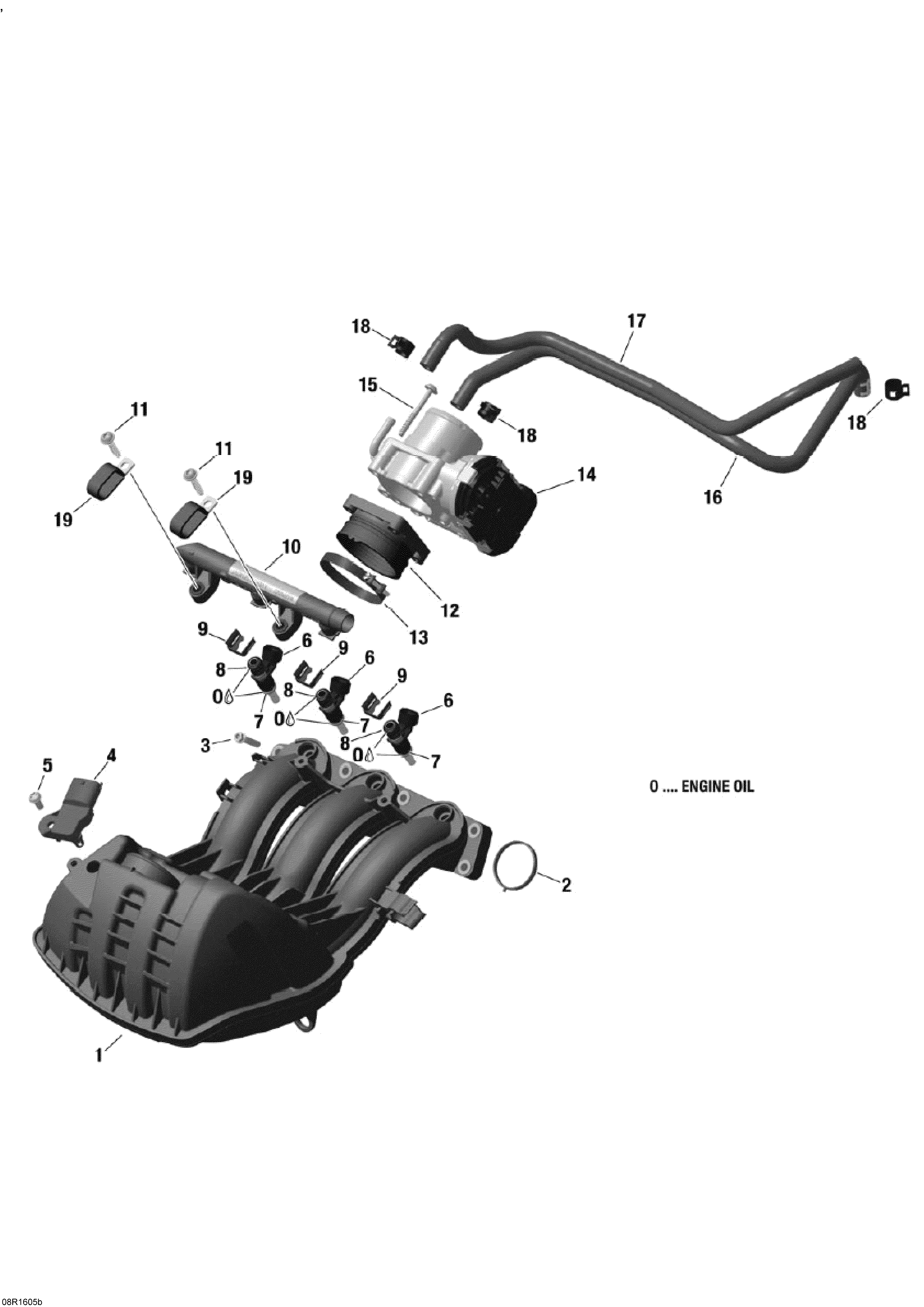

02- Air Intake Manifold And Throttle Body - 900 ACE для BRP Lynx 49 Ranger (4-Stroke) - 2016

  • №
    Артикул
    Название
  • 1
    420867340 Airbox Ass'y. Includes 1 To 2
    Airbox Ass'y. Includes 1 To 2
  • 2
    420431662 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
    Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
  • 4
    707000995 Pressure/Temp Sensor
    Pressure/Temp Sensor
  • 5
    420641588 Torx PT Screw M6 x 16. Tightening Torque 4,5 Nm +/- 12%
    Torx PT Screw M6 x 16. Tightening Torque 4,5 Nm +/- 12%
  • 6
    420874838 Injection Valve (Deka VII Type 0). Includes 6 To 8
    Injection Valve (Deka VII Type 0). Includes 6 To 8
  • 7
    420431890 O Ring. Included In Gasket Kit
    O Ring. Included In Gasket Kit
  • 8
    420631220 O Ring. Included In Gasket Kit
    O Ring. Included In Gasket Kit
  • 9
    420853030 Injector Clip
    Injector Clip
  • 10
    420874965 Fuel Rail
    Fuel Rail
  • 11
    420441573 Torx PT Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
    Torx PT Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
  • 12
    420867110 Connecting Socket
    Connecting Socket
  • 13
    420251830 Hose Clamp
    Hose Clamp
  • 14
    420893148 Throttle Body Ass'y
    Throttle Body Ass'y
  • 15
    420441588 Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%
    Torx PT Screw M6 x 50. Tightening Torque 9 Nm +/- 12%
  • 16
    420201505 Molded Hose (Water Out)
    Molded Hose (Water Out)
  • 17
    420201500 Molded Hose (Water In)
    Molded Hose (Water In)
  • 18
    420853511 Clamp
    Clamp
  • 19
    420951830 Double Clamp
    Double Clamp
