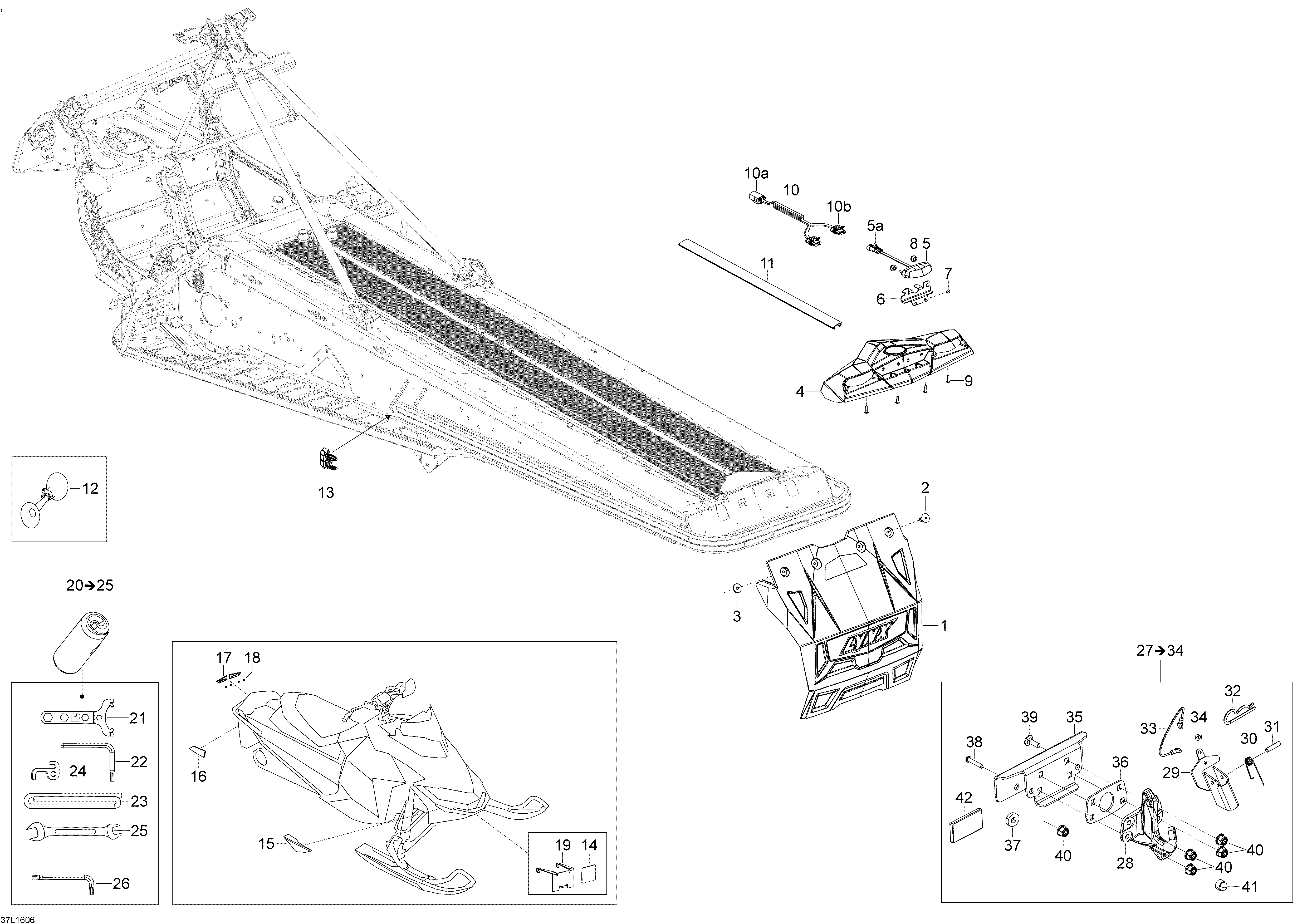

09- Utilities для BRP Lynx 49 Ranger (2-Stroke) - 2016
‹-+›
-
№АртикулНазвание
-
1520001512 Snow GuardSnow Guard
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4511000863 Light CoverLight Cover
-
5520001302 Rear LightRear Light
-
5a710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
5a409012900 Male TerminalMale Terminal
-
5a409013700 PlugPlug
-
5a278001013 Wire SealWire Seal
-
6520001375 Rear Light SupportRear Light Support
-
7390909200 RivetRivet
-
8293720101 GrommetGrommet
-
9250000759 Torx Truss Screw K40 x 16Torx Truss Screw K40 x 16
-
10515178116 Rear Light HarnessRear Light Harness
-
10b409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
10b278001014 Female TerminalFemale Terminal
-
11520000829 TrimTrim
-
12549011291 HornHorn
-
13520000965 RH CapRH Cap
-
13520000964 LH CapLH Cap
-
1421118 Bright ReflectorBright Reflector
-
15520001351 Yellow RH ReflectorYellow RH Reflector
-
15520001352 Yellow LH ReflectorYellow LH Reflector
-
16705007154 Yellow RH ReflectorYellow RH Reflector
-
16705007155 Yellow LH ReflectorYellow LH Reflector
-
17705007156 Red RH ReflectorRed RH Reflector
-
17705007157 Red LH ReflectorRed LH Reflector
-
18732610072 Push NutPush Nut
-
19520001631 Reflector MountReflector Mount
-
21520001442 WrenchWrench
-
22520001142 KeyKey
-
23412500200 Starter RopeStarter Rope
-
24529000060 Starter GripStarter Grip
-
25529000002 Fork Wrench 10/13Fork Wrench 10/13
-
26529000082 Torx KeyTorx Key
-
27520001475 Hitch Ass?y. Includes 27 To 34Hitch Ass?y. Includes 27 To 34
-
3141012 Spring PinSpring Pin
-
3241029 Cotter PinCotter Pin
-
34390909100 RivetRivet
-
37520001288 SleeveSleeve
-
38205484546 Socket Screw M8 x 45Socket Screw M8 x 45
-
39207782544 Carriage Bolt M8 x 25Carriage Bolt M8 x 25
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4128056 CoverCover
-
4221126 Red ReflectorRed Reflector
