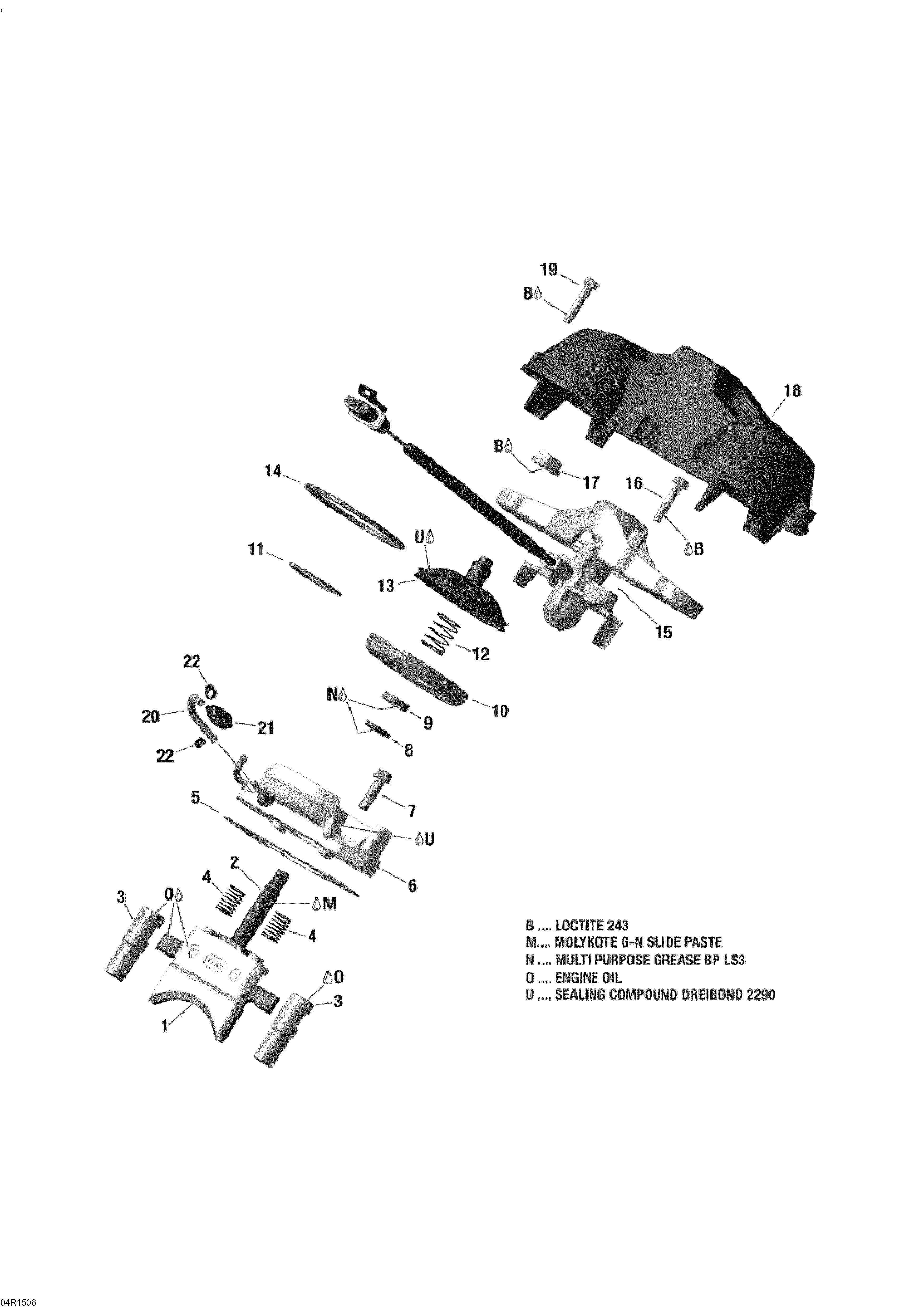

01- RAVE Valve для BRP Lynx 69 YETI Army 800R E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    420854900 Upper Exhaust Valve
    Upper Exhaust Valve
  • 2
    420854904 Lower Exhaust Valve
    Lower Exhaust Valve
  • 3
    420854890 Exhaust Valve
    Exhaust Valve
  • 4
    420238556 Spring
    Spring
  • 5
    420430032 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 6
    420854888 Valve Housing
    Valve Housing
  • 7
    420440207 Flanged Torx Screw M6 x 20. Tightening Torque 8-10 Nm
    Flanged Torx Screw M6 x 20. Tightening Torque 8-10 Nm
  • 8
    420431380 Gasket Ring. Included In Gasket Kit
    Gasket Ring. Included In Gasket Kit
  • 9
    420950730 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 10
    420260725 Bellows
    Bellows
  • 11
    420838255 Hose Spring
    Hose Spring
  • 12
    420238557 Spring
    Spring
  • 13
    420854442 Valve Cover
    Valve Cover
  • 14
    420939285 Hose Spring
    Hose Spring
  • 15
    420854089 Position Sensor
    Position Sensor
  • 16
    420841550 Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm
    Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm
  • 17
    420942190 Nut M12 x 1.5. Tightening Torque 5-6 Nm
    Nut M12 x 1.5. Tightening Torque 5-6 Nm
  • 18
    420910821 Rave Cover
    Rave Cover
  • 19
    420841550 Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm
    Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm
  • 20
    414413800 Oil Hose
    Oil Hose
  • 21
    404160200 Check Valve Ass’y
    Check Valve Ass’y
  • 22
    420851508 Clamp
    Clamp
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • U
    420297906 Sealing Compound, 30ml
    Sealing Compound, 30ml
