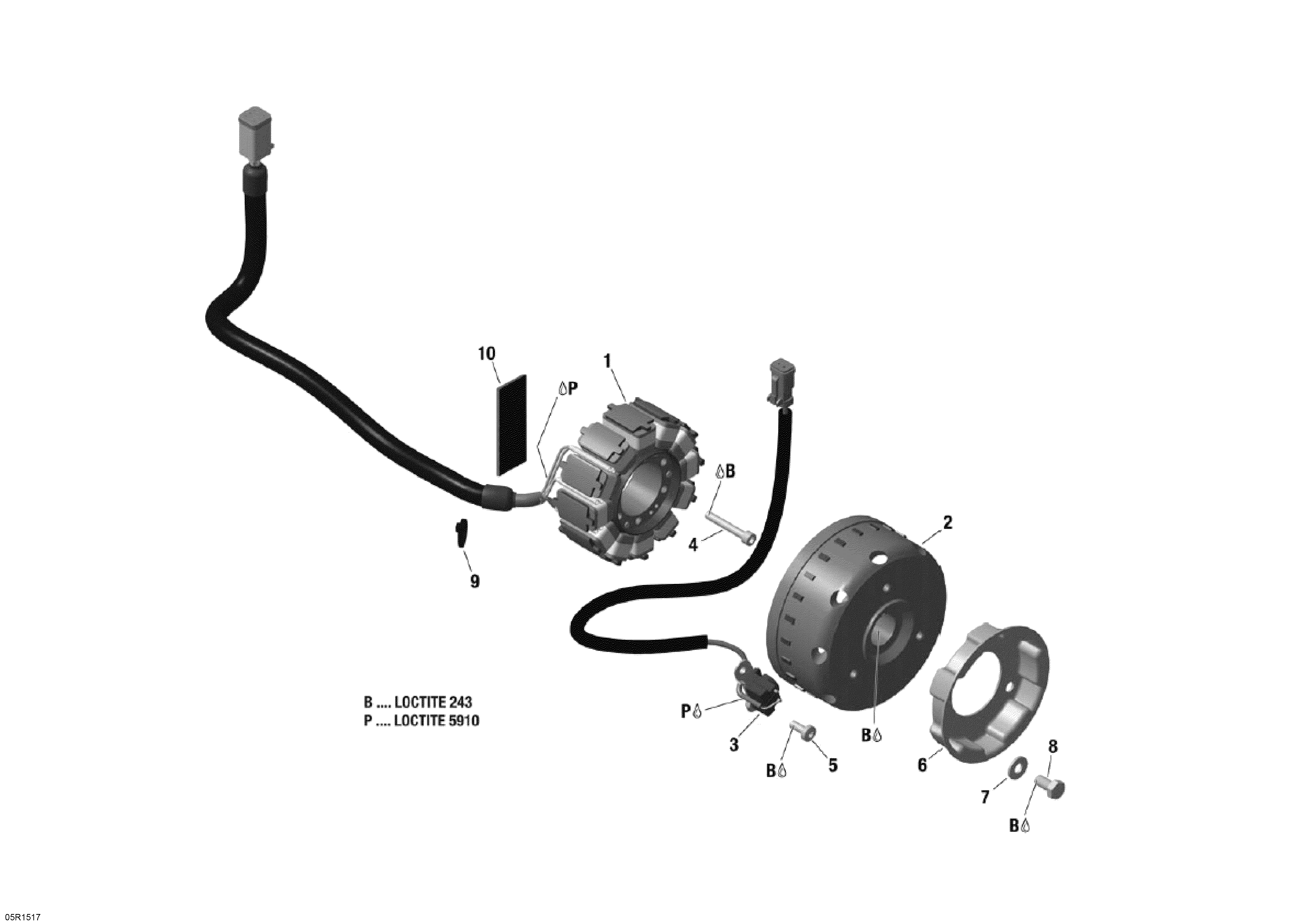

03- Magneto для BRP Lynx Xtrim Commander 800R E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    420665435 Stator Ass?y, 55V 1300W
    Stator Ass?y, 55V 1300W
  • 2
    420665442 Flywheel
    Flywheel
  • 3
    410922969 Pick-Up Ass'y
    Pick-Up Ass'y
  • 4
    420241816 Socket Head Screw M6 x 40. Tightening Torque 8-10 Nm
    Socket Head Screw M6 x 40. Tightening Torque 8-10 Nm
  • 5
    420640324 Hex. Taptite Screw M6 x 16. Tightening Torque 7-8 Nm
    Hex. Taptite Screw M6 x 16. Tightening Torque 7-8 Nm
  • 6
    420852532 Starting Pulley. (Manual Start)
    Starting Pulley. (Manual Start)
  • 7
    420827405 Flat Washer. (Manual Start)
    Flat Washer. (Manual Start)
  • 8
    207181644 Hex. Screw M8 x 16. (Manual Start), Tightening Torque 20-22 Nm
    Hex. Screw M8 x 16. (Manual Start), Tightening Torque 20-22 Nm
  • 9
    420866714 Tie Rap
    Tie Rap
  • 10
    420201360 Pad With Adhesive
    Pad With Adhesive
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • P
    293800081 Loctite 5910, 300 ml
    Loctite 5910, 300 ml
