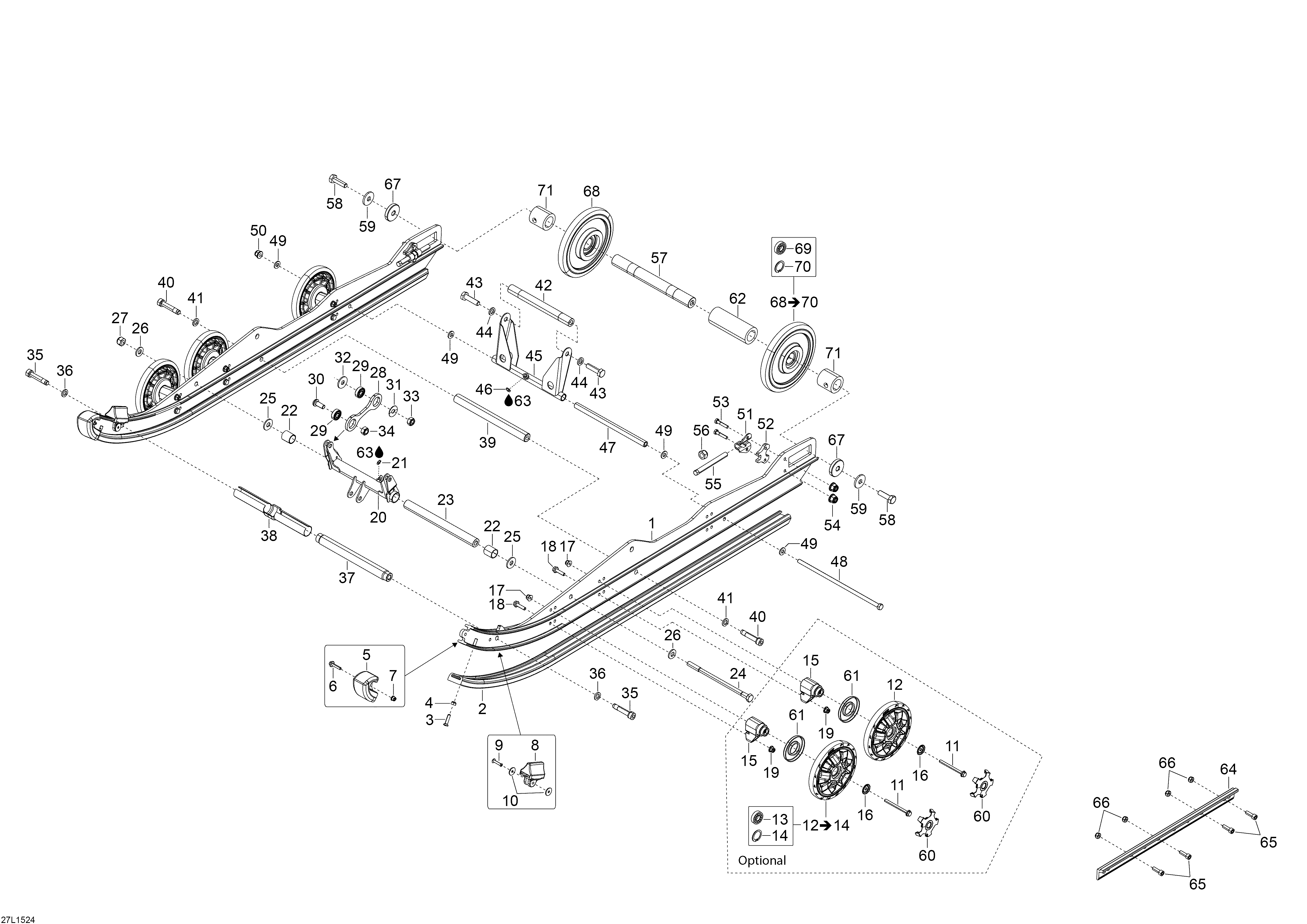

08- Rear Suspension для BRP Lynx Rave RS 600 - 2015
-
№АртикулНазвание
-
1503194048 RunnerRunner
-
2503192618 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flange Screw M5 x 25Hex. Flange Screw M5 x 25
-
7233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9293150142 Pop Rivet 3/16Pop Rivet 3/16
-
10503191273 WasherWasher
-
11207667056 Hex. Flange Screw M6 x 70. OptionalHex. Flange Screw M6 x 70. Optional
-
12503193734 Wheel 141mm. Optional, Includes 12 To 14Wheel 141mm. Optional, Includes 12 To 14
-
13503190396 Ball Bearing. OptionalBall Bearing. Optional
-
15503193894 Support. OptionalSupport. Optional
-
16503191820 Cup Washer. OptionalCup Washer. Optional
-
17233261466 Elastic Flange Nut M6. OptionalElastic Flange Nut M6. Optional
-
18207662556 Hex. Flange Screw M6 x 25. OptionalHex. Flange Screw M6 x 25. Optional
-
19233261466 Elastic Flange Nut M6. OptionalElastic Flange Nut M6. Optional
-
20503193580 Front SwingFront Swing
-
21408200700 Grease FittingGrease Fitting
-
22503193822 BushingBushing
-
23503193893 Lower ShaftLower Shaft
-
24503193227 Bolt M10 x 251Bolt M10 x 251
-
25503191926 WasherWasher
-
26250200138 WasherWasher
-
27233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
28605254159 Connecting RodConnecting Rod
-
29605631003 Ball BearingBall Bearing
-
30205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
3125004 Spring CupSpring Cup
-
32234002600 Washer M10Washer M10
-
33233401414 Lock Spring Nut M10Lock Spring Nut M10
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
36503192496 WasherWasher
-
37605353958 ShaftShaft
-
38605355096 Retainer For Stopper StrapRetainer For Stopper Strap
-
395343471 ShaftShaft
-
40205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
41503192496 WasherWasher
-
42503193638 Lower ShaftLower Shaft
-
43207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
44234001410 WasherWasher
-
45503193578 Rear SwingRear Swing
-
46408200700 Grease FittingGrease Fitting
-
47503189156 Pivot AxlePivot Axle
-
48503194069 Bolt M8 x 261Bolt M8 x 261
-
49503192494 WasherWasher
-
50233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
51503192583 TensionerTensioner
-
52503193250 SpacerSpacer
-
53207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
54233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
55230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
57503194091 Rear ShaftRear Shaft
-
58250000817 Hex. Cap Screw M10 x 35Hex. Cap Screw M10 x 35
-
59503183300 WasherWasher
-
60503193884 White Wheel Cap. OptionalWhite Wheel Cap. Optional
-
61503190434 Labyrinth Seal. OptionalLabyrinth Seal. Optional
-
625448027 SpacerSpacer
-
63619590193 Synthetic GreaseSynthetic Grease
-
64503194046 Rail ReinforcementRail Reinforcement
-
65205082554 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
66232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
67503192735 Rear Axle WasherRear Axle Washer
-
68503194127 Wheel 165mm. Includes 74 To 76Wheel 165mm. Includes 74 To 76
-
69293350055 Ball BearingBall Bearing
-
715441512 SpacerSpacer
