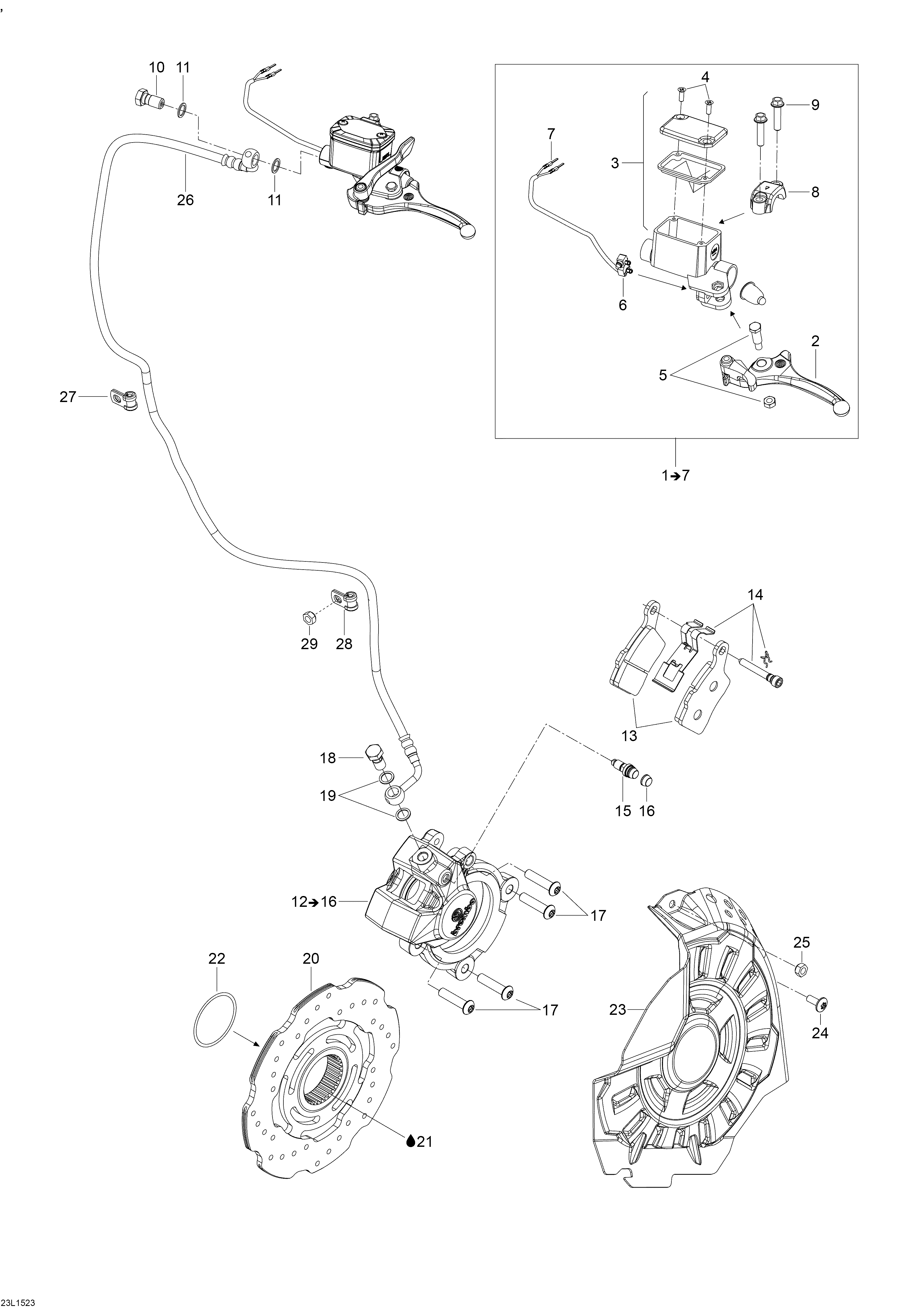

06- Hydraulic Brakes для BRP Lynx Rave RE 800R E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    507032518 Master Cylinder Ass’y. Includes 1 To 7
    Master Cylinder Ass’y. Includes 1 To 7
  • 1
    507032511 Master Cylinder Ass’y. Includes 1 To 7 (RS Kit)
    Master Cylinder Ass’y. Includes 1 To 7 (RS Kit)
  • 2
    507032476 Lever
    Lever
  • 2
    507032428 Lever. (RS Kit)
    Lever. (RS Kit)
  • 3
    415029900 Cap. (RS Kit)
    Cap. (RS Kit)
  • 3
    507032478 Reservoir Ass?y. Includes 3 To 4
    Reservoir Ass?y. Includes 3 To 4
  • 4
    415129356 Screw M4 x 20
    Screw M4 x 20
  • 5
    415030000 Pin
    Pin
  • 6
    507032479 Microswitch
    Microswitch
  • 6
    507032526 Microswitch. (RS Kit)
    Microswitch. (RS Kit)
  • 7
    515175232 Male Terminal
    Male Terminal
  • 8
    719000049 Clamp Kit
    Clamp Kit
  • 8
    507032477 Clamp Kit. (RS Kit)
    Clamp Kit. (RS Kit)
  • 9
    250000447 Hex. Flange Screw M6 x 25
    Hex. Flange Screw M6 x 25
  • 10
    507032551 Banjo Bolt
    Banjo Bolt
  • 11
    705600310 Copper Washer
    Copper Washer
  • 12
    507032500 Brake Caliper Ass'y. Includes 12 To 16
    Brake Caliper Ass'y. Includes 12 To 16
  • 12
    507032501 Brake Caliper Ass'y. Includes 12 To 16 (RS Kit)
    Brake Caliper Ass'y. Includes 12 To 16 (RS Kit)
  • 13
    507032473 Brake Pads Kit
    Brake Pads Kit
  • 13
    507032489 Brake Pads Kit. (RS Kit)
    Brake Pads Kit. (RS Kit)
  • 14
    507032474 Pin, Clip, Spring Kit
    Pin, Clip, Spring Kit
  • 15
    507032475 Bleeder
    Bleeder
  • 16
    414989700 Boot
    Boot
  • 17
    250000301 Torx Screw M8 x 35, Scotch Grip
    Torx Screw M8 x 35, Scotch Grip
  • 18
    507032551 Banjo Bolt
    Banjo Bolt
  • 19
    705600310 Copper Washer
    Copper Washer
  • 20
    507032487 Disk
    Disk
  • 20
    507032513 Disk. (RS Kit)
    Disk. (RS Kit)
  • 21
    619600013 Loctite 8151 (Antiseize), 400ml Spray
    Loctite 8151 (Antiseize), 400ml Spray
  • 22
    293300134 O Ring
    O Ring
  • 23
    507032546 Black Disk Protector
    Black Disk Protector
  • 24
    250000717 Torx Screw M6 x 16
    Torx Screw M6 x 16
  • 25
    233261494 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 26
    507032540 Hose
    Hose
  • 27
    715900250 Clamp
    Clamp
  • 28
    503193393 Clamp
    Clamp
  • 29
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
