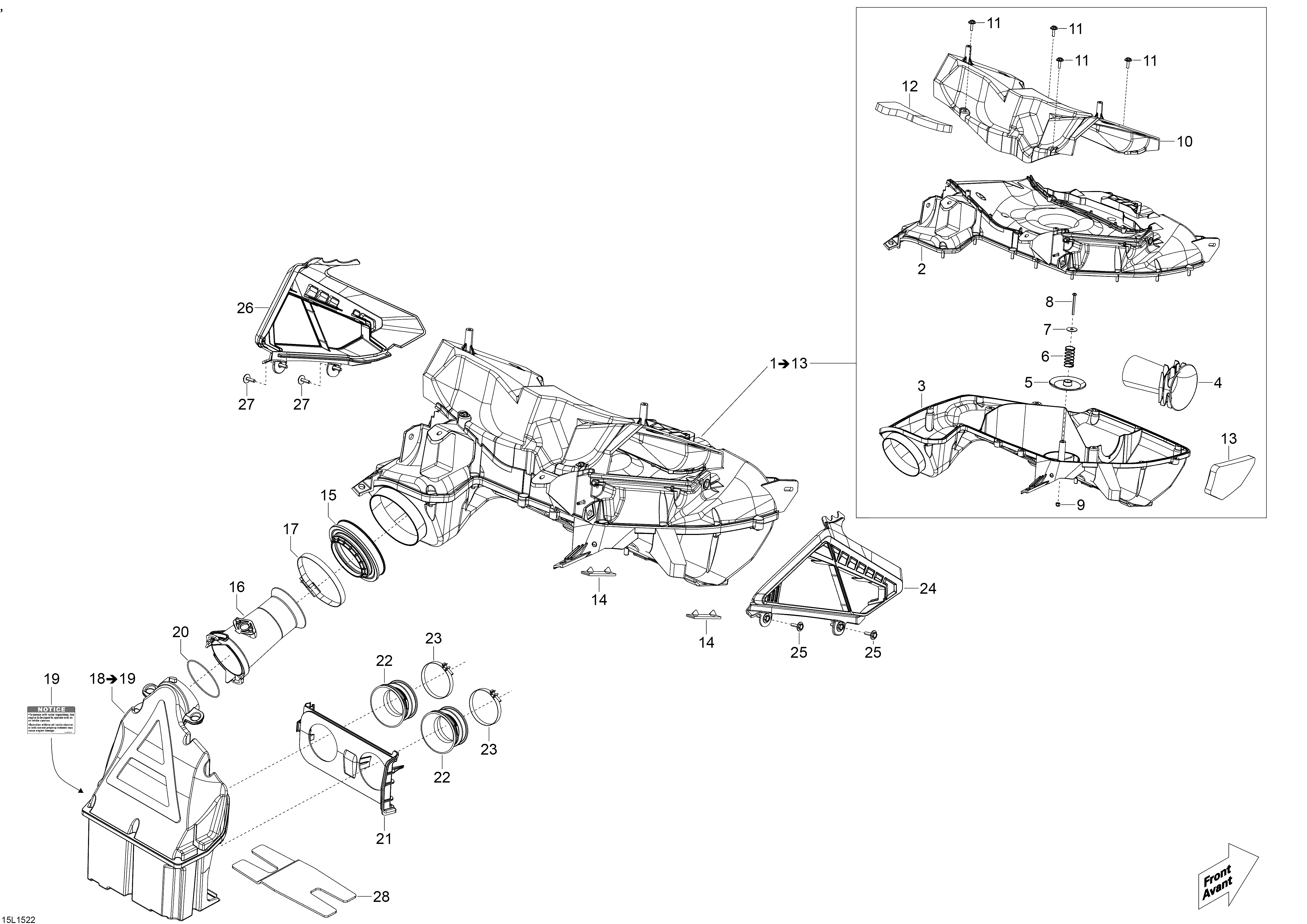

02- Air Intake System для BRP Lynx Rave RE 600 E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    508000760 Secondary Chamber Ass'y. Includes 1 To 13
    Secondary Chamber Ass'y. Includes 1 To 13
  • 7
    224060201 Flat Washer
    Flat Washer
  • 8
    205444086 Socket HD Screw M4 x 40
    Socket HD Screw M4 x 40
  • 9
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 10
    508000732 Air Duct
    Air Duct
  • 11
    250000725 Plastite Screw M4 x 16
    Plastite Screw M4 x 16
  • 14
    508000744 Stopper
    Stopper
  • 15
    508000567 Intake Adaptor
    Intake Adaptor
  • 16
    508000662 Flute
    Flute
  • 17
    514052924 Gear Clamp
    Gear Clamp
  • 18
    508000660 Primary Chamber Ass'y. Includes 18 To 19
    Primary Chamber Ass'y. Includes 18 To 19
  • 19
    516005876 Air Intake Instruction Label
    Air Intake Instruction Label
  • 20
    293300115 O-Ring
    O-Ring
  • 21
    508000613 Adapter Plate
    Adapter Plate
  • 22
    508000614 Air Intake Adapter
    Air Intake Adapter
  • 23
    508000346 Clamp
    Clamp
  • 24
    508000730 RH Air Filter
    RH Air Filter
  • 25
    250000725 Plastite Screw M4 x 16
    Plastite Screw M4 x 16
  • 26
    508000731 LH Air Filter
    LH Air Filter
  • 27
    250000725 Plastite Screw M4 x 16
    Plastite Screw M4 x 16
  • 28
    508000739 Isolating Foam
    Isolating Foam
