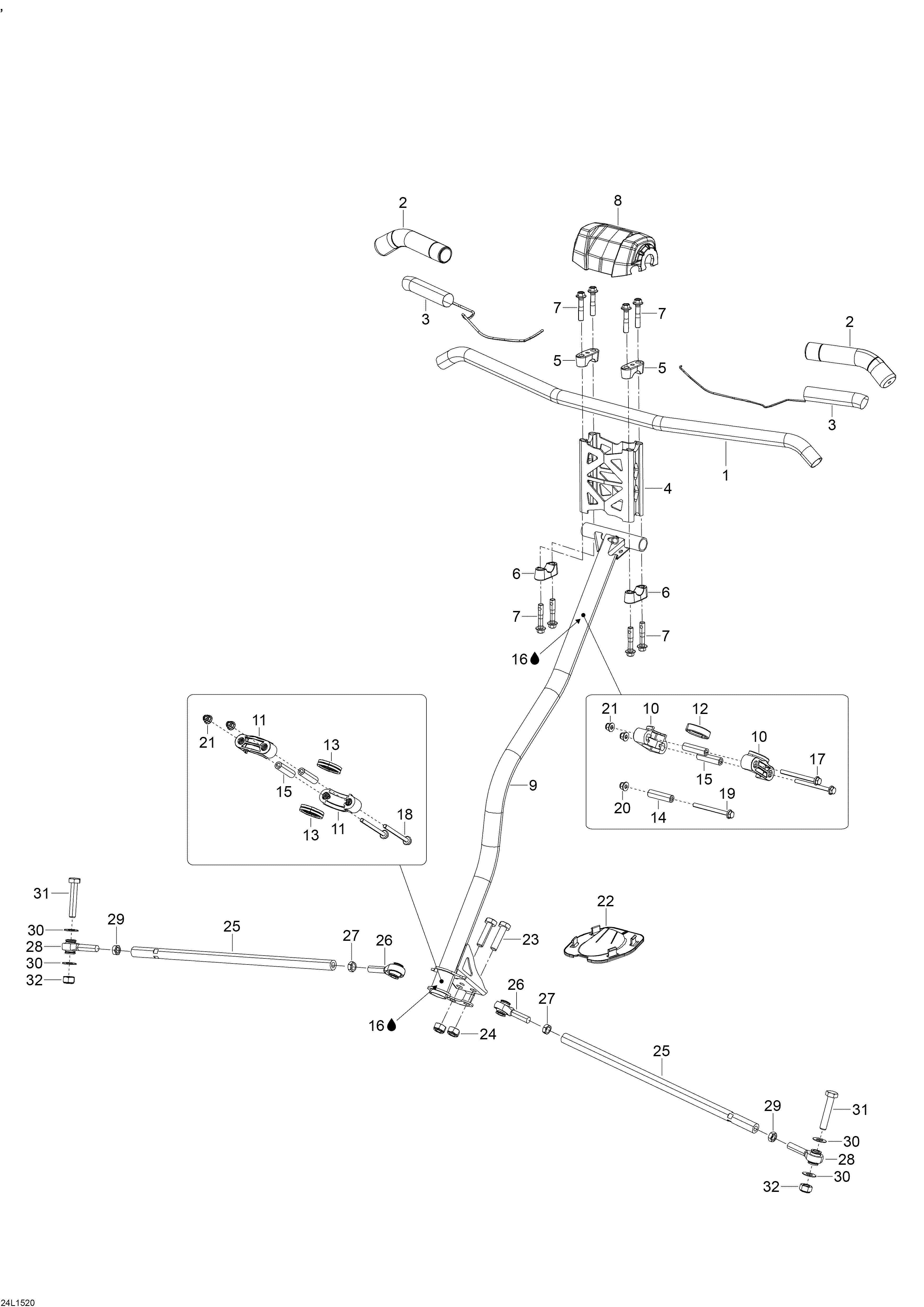

07- Steering System для BRP Lynx Rave 600 ACE - 2015
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film (25W)Heated Film (25W)
-
4506152570 ExtensionExtension
-
5506152751 Steering SupportSteering Support
-
6506152751 Steering SupportSteering Support
-
7250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
8506152553 Steering PadSteering Pad
-
9506152585 Main TubeMain Tube
-
10506152508 Half Housing UpperHalf Housing Upper
-
11506152217 Half Housing LowerHalf Housing Lower
-
12506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
13506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
14506152297 Housing BushingHousing Bushing
-
15506152297 Housing BushingHousing Bushing
-
16619590193 Synthetic GreaseSynthetic Grease
-
17207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
19207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
20233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
21233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
22506152163 PlatePlate
-
23207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
24232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25506152496 Tie RodTie Rod
-
26506152081 Ball JointBall Joint
-
27250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
28506152019 Ball JointBall Joint
-
29732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
30506152194 WasherWasher
-
31207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
32232500416 Elastic Stop Nut M10Elastic Stop Nut M10
