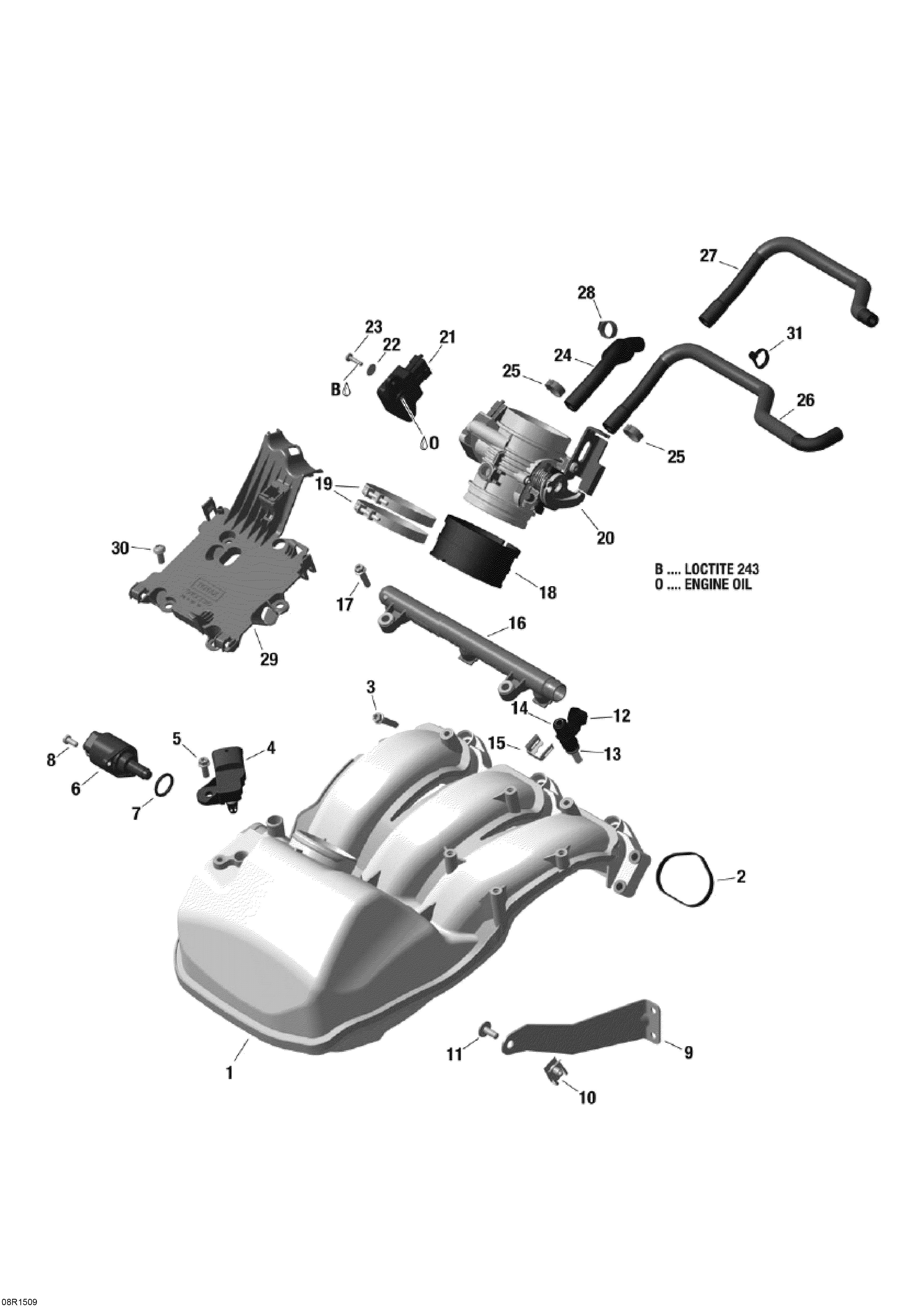

02- Air Intake Manifold And Throttle Body для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2015

  • №
    Артикул
    Название
  • 1
    420667440 Air Intake Manifold. Includes 1 To 2
    Air Intake Manifold. Includes 1 To 2
  • 2
    420950745 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420440647 Flanged Torx Screw M6 x 30. Tightening Torque 11 Nm
    Flanged Torx Screw M6 x 30. Tightening Torque 11 Nm
  • 4
    707000995 Pressure And Temperature Sensor
    Pressure And Temperature Sensor
  • 5
    420440162 Flanged Torx Screw M6 x 16. Tightening Torque 5,5 Nm
    Flanged Torx Screw M6 x 16. Tightening Torque 5,5 Nm
  • 6
    420665940 Idle Bypass Valve
    Idle Bypass Valve
  • 7
    420631780 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 8
    420640081 Torx Screw M5 x 12. Tightening Torque 2,5 Nm
    Torx Screw M5 x 12. Tightening Torque 2,5 Nm
  • 9
    420951011 Support
    Support
  • 10
    420942108 Clip nut
    Clip nut
  • 11
    420241524 Torx Screw M6 x 16. Tightening Torque 11 Nm
    Torx Screw M6 x 16. Tightening Torque 11 Nm
  • 12
    420874830 Injection Valve. Includes 12 To 14
    Injection Valve. Includes 12 To 14
  • 13
    420431890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 14
    420631220 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 15
    420853030 Clip
    Clip
  • 16
    420874810 Fuel Rail
    Fuel Rail
  • 17
    420440234 Flanged Torx Screw M6 x 25. Tightening Torque 11 Nm
    Flanged Torx Screw M6 x 25. Tightening Torque 11 Nm
  • 18
    420460490 Intake Adaptor
    Intake Adaptor
  • 19
    420251209 Clamp
    Clamp
  • 20
    420891905 Throttle Body Socket Ass'y. Includes 20 To 23
    Throttle Body Socket Ass'y. Includes 20 To 23
  • 21
    270000251 Throttle Position Sensor
    Throttle Position Sensor
  • 22
    234042600 Flat Washer
    Flat Washer
  • 23
    208641660 Phillips Screw M4 x 16
    Phillips Screw M4 x 16
  • 24
    420460482 Molded Hose
    Molded Hose
  • 25
    293650125 Clamp
    Clamp
  • 26
    420822662 Molded Hose
    Molded Hose
  • 27
    420822662 Molded Hose
    Molded Hose
  • 28
    420851458 Clamp
    Clamp
  • 29
    420910331 Base Plate
    Base Plate
  • 30
    420641583 Flanged Torx Screw M6 x 16. Tightening Torque 6 Nm
    Flanged Torx Screw M6 x 16. Tightening Torque 6 Nm
  • 31
    414115200 Tie rap
    Tie rap
