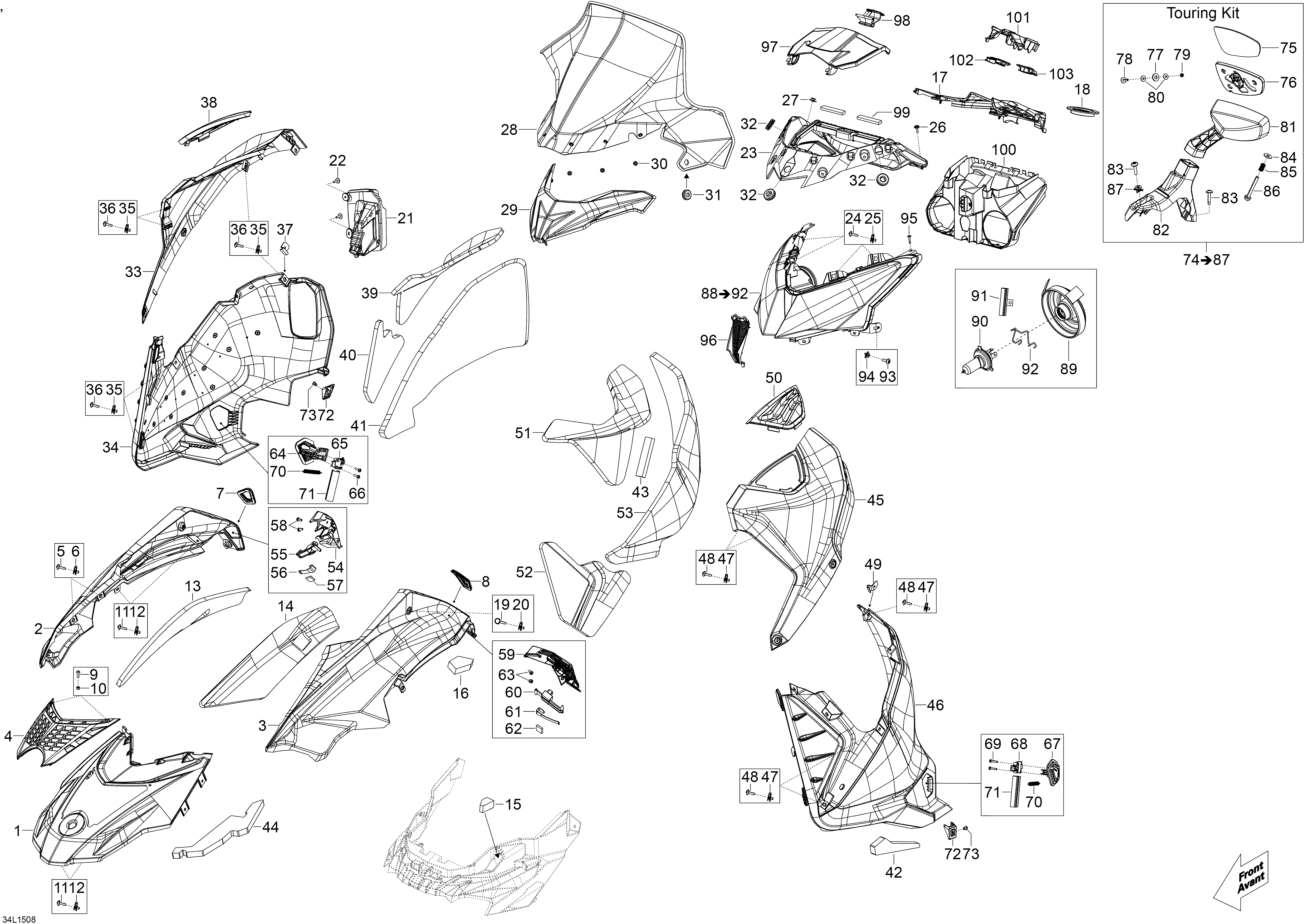

09- Hood And Windshield для BRP Lynx 49 Ranger 600 E-TEC - 2015
-
№АртикулНазвание
-
1517305571 White HoodWhite Hood
-
2517305416 White RH HoodWhite RH Hood
-
3517305417 White LH HoodWhite LH Hood
-
4517305362 Hood GrillHood Grill
-
5250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
6250000079 Panel Nut M5Panel Nut M5
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551494 Button HD Torx Screw M5 x 14Button HD Torx Screw M5 x 14
-
10233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13517305481 FoamFoam
-
14517305482 FoamFoam
-
15517305812 FoamFoam
-
16517305824 FoamFoam
-
17517305205 Console RearConsole Rear
-
18517304518 Console NutConsole Nut
-
19517305531 KnobKnob
-
20250000079 Panel Nut M5Panel Nut M5
-
21517305060 Black RH ConsoleBlack RH Console
-
22250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
23517305512 Indicator SupportIndicator Support
-
23517305943 Indicator Support. (Touring Kit)Indicator Support. (Touring Kit)
-
24250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
25250000079 Panel Nut M5Panel Nut M5
-
26250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
27250100035 Jack Nut M5. (Touring Kit)Jack Nut M5. (Touring Kit)
-
28860201070 WindshieldWindshield
-
29517305307 SupportSupport
-
30732610072 Push NutPush Nut
-
31517302841 GrommetGrommet
-
32517303756 GrommetGrommet
-
33517305425 White RH PanelWhite RH Panel
-
34517305249 Black RH PanelBlack RH Panel
-
35250000079 Panel Nut M5Panel Nut M5
-
36250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
37517305515 Guide PlateGuide Plate
-
38517305251 GrillGrill
-
39517305484 FoamFoam
-
40517305485 FoamFoam
-
41517305486 FoamFoam
-
42517305813 FoamFoam
-
43517305814 FoamFoam
-
44517305815 FoamFoam
-
45517305426 White LH PanelWhite LH Panel
-
46517305253 Black LH PanelBlack LH Panel
-
47250000079 Panel Nut M5Panel Nut M5
-
48250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
49517305515 Guide PlateGuide Plate
-
50517305254 GrillGrill
-
51517305488 FoamFoam
-
52517305489 FoamFoam
-
53517305490 FoamFoam
-
54517305315 RH Lock BodyRH Lock Body
-
55517305757 Lock ArmLock Arm
-
56517305317 Lock SpringLock Spring
-
57517306005 Lock Support PlateLock Support Plate
-
58205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
59517305319 LH Lock BodyLH Lock Body
-
60517305757 Lock ArmLock Arm
-
61517305317 Lock SpringLock Spring
-
62517306005 Lock Support PlateLock Support Plate
-
63205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
64517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
65517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
66250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
67517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
68517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
69250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
70517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
71517305452 Bottom Lock SleeveBottom Lock Sleeve
-
72517305323 Side Panel SupportSide Panel Support
-
73390909100 RivetRivet
-
74860201156 Mirror Kit. (Touring Kit) Includes 74 To 87Mirror Kit. (Touring Kit) Includes 74 To 87
-
77250200024 Rubber WasherRubber Washer
-
83250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
84234062410 Flat WasherFlat Washer
-
85279000329 SpringSpring
-
86207665044 Hex. Flange Screw M6 x 50Hex. Flange Screw M6 x 50
-
87250100035 Jack Nut M5Jack Nut M5
-
88517305497 Headlamp. Includes 88 To 92Headlamp. Includes 88 To 92
-
89219400070 CapCap
-
90515176274 BulbBulb
-
91219800282 HolderHolder
-
92219800281 SpringSpring
-
93250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
94250100035 Jack Nut M5Jack Nut M5
-
95250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
96517305350 CapCap
-
97517304912 CoverCover
-
98517304917 LatchLatch
-
99517305157 SealSeal
-
100517305095 TrunkTrunk
-
101517304970 SupportSupport
-
102517305147 CapCap
-
103517305148 CapCap
