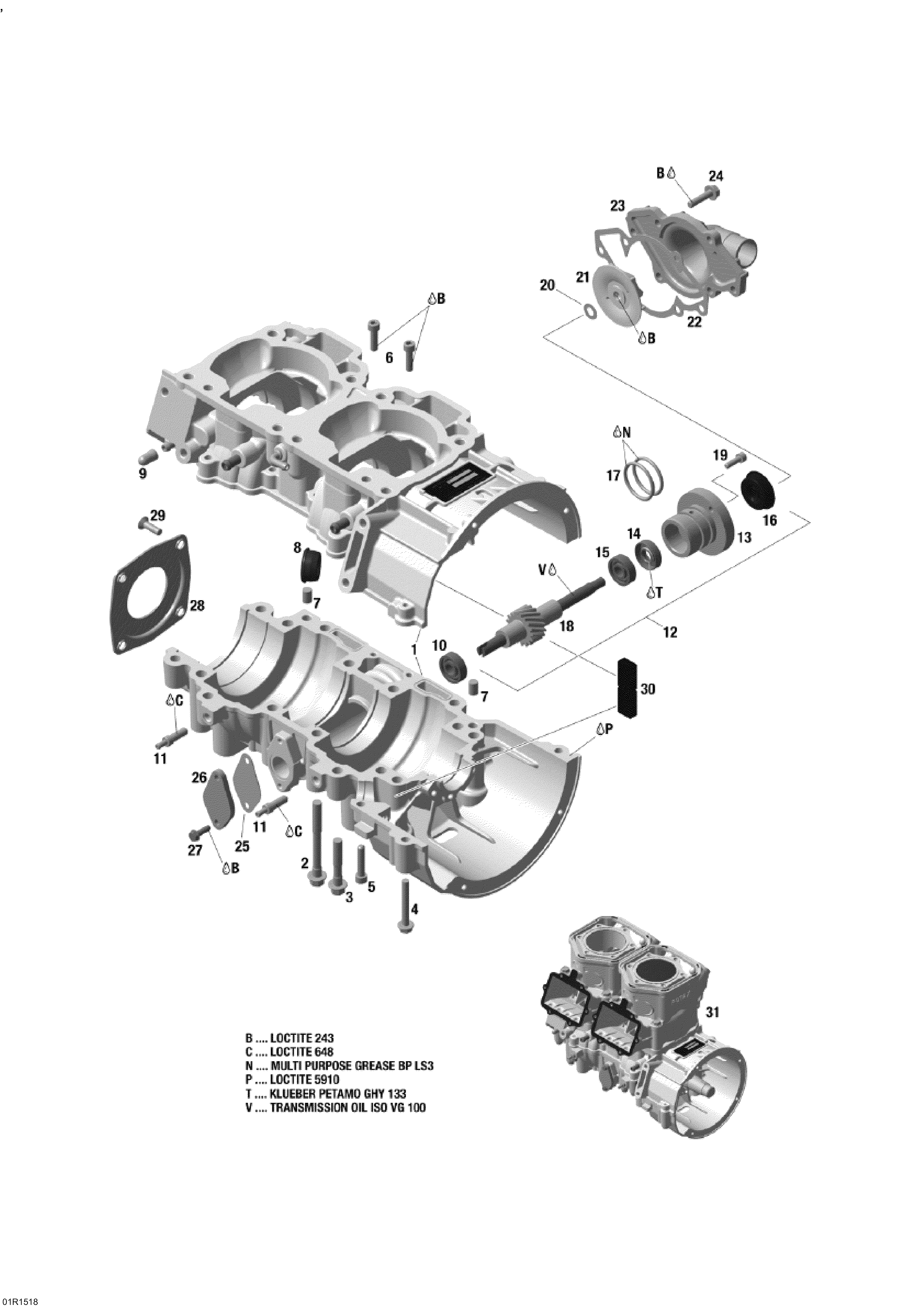

01- Crankcase And Water Pump для BRP Lynx BoonDocker 600 E-TEC - 2015

  • №
    Артикул
    Название
  • 1
    420890222 Crankcase Ass'y. Includes 1 To 10
    Crankcase Ass'y. Includes 1 To 10
  • 2
    420640836 Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm
    Hex. Collar Screw M8 x 75. Tightening Torque 28-30 Nm
  • 3
    420640431 Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm
    Hex. Collar Screw M8 x 45. Tightening Torque 28-30 Nm
  • 4
    420640311 Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm
    Hex. Collar Screw M6 x 45. Tightening Torque 8-10 Nm
  • 5
    205063044 Socket Head Screw M6 x 30. Tightening Torque 8-10 Nm
    Socket Head Screw M6 x 30. Tightening Torque 8-10 Nm
  • 6
    420840401 Socket Head Screw M6 x 22. Tightening Torque 8-10 Nm
    Socket Head Screw M6 x 22. Tightening Torque 8-10 Nm
  • 7
    420632010 Pin 8 x 12
    Pin 8 x 12
  • 8
    420660890 Cable Grommet
    Cable Grommet
  • 9
    420960770 Cap
    Cap
  • 10
    420232100 Ball Bearing
    Ball Bearing
  • 11
    420956070 Check Valve
    Check Valve
  • 12
    420837421 Water Pump/Oil Pump Ass'y. Includes 12 To 18
    Water Pump/Oil Pump Ass'y. Includes 12 To 18
  • 14
    420230195 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 15
    420232100 Ball Bearing
    Ball Bearing
  • 16
    420650370 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 17
    420950890 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 19
    420840511 Allen Screw M5 x 16. Tightening Torque 5-6 Nm
    Allen Screw M5 x 16. Tightening Torque 5-6 Nm
  • 20
    420227945 Washer
    Washer
  • 21
    420222505 Water Impeller. Tightening Torque 4-5 Nm
    Water Impeller. Tightening Torque 4-5 Nm
  • 22
    420931810 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 23
    420922630 Water Pump Housing
    Water Pump Housing
  • 24
    420240034 Hex. Screw M6 x 25. Tightening Torque 12-14 Nm
    Hex. Screw M6 x 25. Tightening Torque 12-14 Nm
  • 25
    420931566 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 26
    420810825 Cover Plate
    Cover Plate
  • 27
    420941925 Tapping Screw M5 x 16. Tightening Torque 5-6 Nm
    Tapping Screw M5 x 16. Tightening Torque 5-6 Nm
  • 28
    420812420 Oil Seal Cover
    Oil Seal Cover
  • 29
    420941436 Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm
    Socket Head Screw M6 x 20. Tightening Torque 10-12 Nm
  • 30
    420960925 Rubber Stopper
    Rubber Stopper
  • 31
    300059353 Short Block 593 HO E-TEC
    Short Block 593 HO E-TEC
  • B
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • C
    619600012 Loctite 609, 10ml
    Loctite 609, 10ml
  • P
    293800081 Loctite 5910, 300 ml
    Loctite 5910, 300 ml
  • T
    619600023 Grease, 400g
    Grease, 400g
