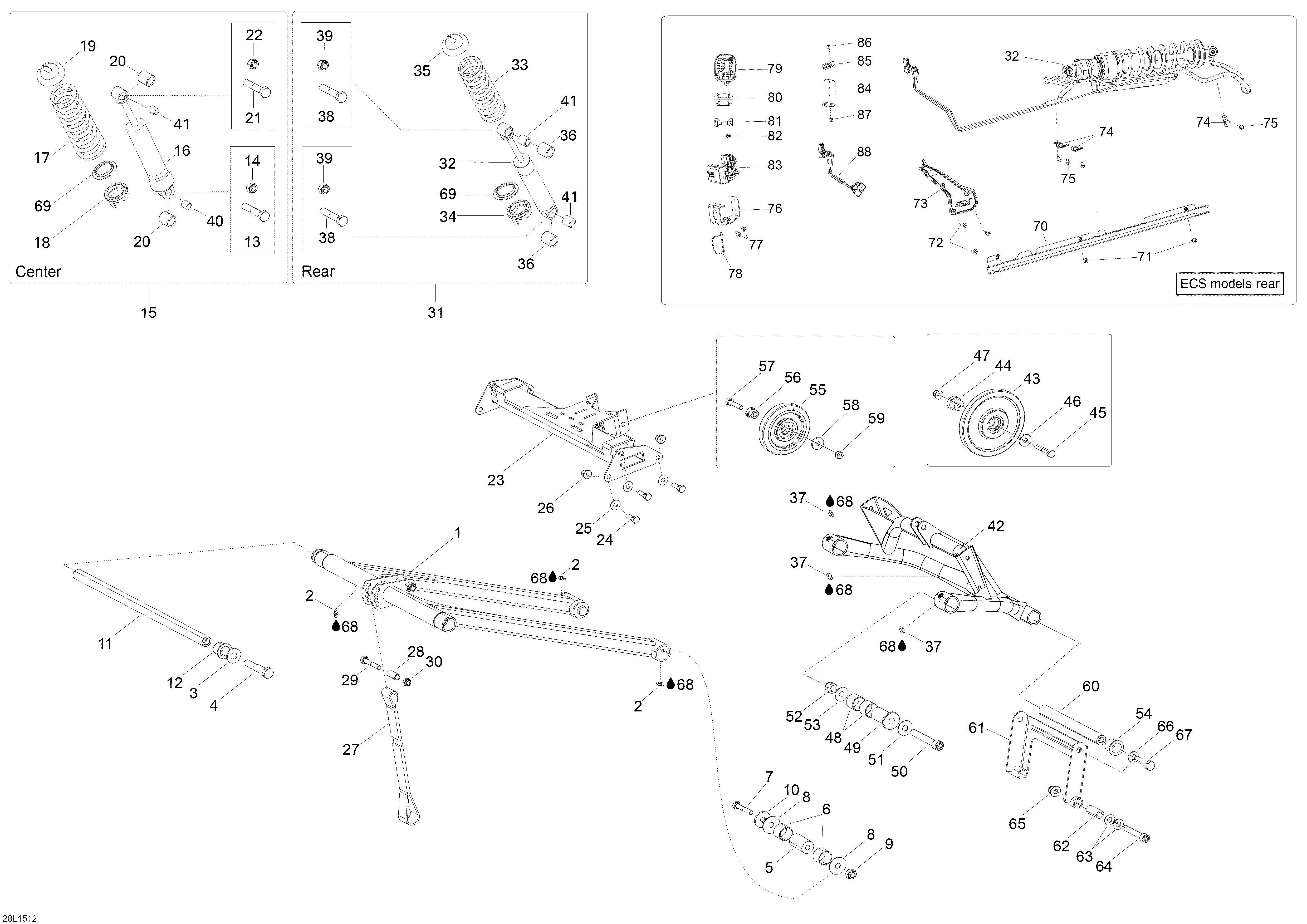

08- Rear Suspension для BRP Lynx Adventure GT 1200 4-TEC - 2015

  • №
    Артикул
    Название
  • 1
    503193092 Front Arm
    Front Arm
  • 2
    408200700 Grease Fitting
    Grease Fitting
  • 3
    250200005 Washer Spring Conical M12
    Washer Spring Conical M12
  • 4
    40243 Screw Hex M12 X 60
    Screw Hex M12 X 60
  • 5
    605354157 Shaft
    Shaft
  • 6
    503193700 Bushing
    Bushing
  • 7
    40021 Screw Hex M10 x 70
    Screw Hex M10 x 70
  • 8
    605355801 Washer
    Washer
  • 9
    232500416 Nut Stop Elastic M10
    Nut Stop Elastic M10
  • 10
    503183300 Washer
    Washer
  • 11
    5347719 Upper Shaft
    Upper Shaft
  • 12
    31024 Cushion
    Cushion
  • 13
    250000549 Screw Hex M10 X 45
    Screw Hex M10 X 45
  • 14
    232500416 Nut Stop Elastic M10
    Nut Stop Elastic M10
  • 16
    503193517 Shock
    Shock
  • 16
    503193521 Shock. ECS Models
    Shock. ECS Models
  • 17
    503192788 Spring
    Spring
  • 17
    503193279 Spring. ECS Models
    Spring. ECS Models
  • 18
    230078 Spring Seat
    Spring Seat
  • 19
    230076 Spring Seat
    Spring Seat
  • 20
    31094 Glide Bearing
    Glide Bearing
  • 21
    40016 Screw Hex M10 X 45
    Screw Hex M10 X 45
  • 22
    232500416 Nut Stop Elastic M10
    Nut Stop Elastic M10
  • 23
    503193769 Middle Beam
    Middle Beam
  • 23
    503194092 Middle beam. ECS Models
    Middle beam. ECS Models
  • 24
    207182544 Screw Hex M8 X 25
    Screw Hex M8 X 25
  • 25
    605620002 Washer
    Washer
  • 26
    233281414 Nut Flange Elastic M8
    Nut Flange Elastic M8
  • 27
    503193780 Limiter strap
    Limiter strap
  • 27
    605355116 Limiter strap. ECS Models
    Limiter strap. ECS Models
  • 28
    605455335 Sleeve
    Sleeve
  • 29
    207084544 Screw Hex M8 X 45
    Screw Hex M8 X 45
  • 30
    232581414 Nut Stop Elastic M8
    Nut Stop Elastic M8
  • 31
    503193920 Shock Ass'y, Rear
    Shock Ass'y, Rear
  • 32
    503193859 Shock
    Shock
  • 32
    503193920 Shock, Ass`y Tractive 46 mm.. ECS Models
    Shock, Ass`y Tractive 46 mm.. ECS Models
  • 33
    605625009 Spring
    Spring
  • 33
    503193922 Spring. ECS Models
    Spring. ECS Models
  • 34
    230078 Spring Seat
    Spring Seat
  • 35
    230076 Spring Seat
    Spring Seat
  • 36
    31094 Glide Bearing
    Glide Bearing
  • 37
    408200700 Grease Fitting
    Grease Fitting
  • 38
    40134 Screw Socket M10 X 45
    Screw Socket M10 X 45
  • 39
    232500416 Nut Stop Elastic M10
    Nut Stop Elastic M10
  • 40
    5446652 Bushing
    Bushing
  • 41
    5446652 Bushing
    Bushing
  • 42
    503193868 Rear Arm Weld
    Rear Arm Weld
  • 42
    503194060 Rear Arm Weld. ECS Models
    Rear Arm Weld. ECS Models
  • 43
    503193644 Idler Wheel 133mm
    Idler Wheel 133mm
  • 44
    605454461 Sleeve
    Sleeve
  • 45
    207084544 Screw hex
    Screw hex
  • 46
    20077 Washer
    Washer
  • 47
    233281414 Nut Flange Elastic M8
    Nut Flange Elastic M8
  • 48
    503193700 Bushing
    Bushing
  • 49
    605354157 Shaft
    Shaft
  • 50
    205006544 Screw Socket M10 X 65
    Screw Socket M10 X 65
  • 51
    503189564 Washer
    Washer
  • 52
    232500416 Nut Stop Elastic M10
    Nut Stop Elastic M10
  • 53
    605355801 Washer
    Washer
  • 54
    31024 Cushion
    Cushion
  • 55
    572043500 Wheel Idler
    Wheel Idler
  • 56
    503193330 Sleeve
    Sleeve
  • 57
    207083544 Screw Hex M8 X 35
    Screw Hex M8 X 35
  • 58
    20077 Washer
    Washer
  • 59
    232581414 Nut Stop Elastic M8
    Nut Stop Elastic M8
  • 60
    503192397 Shaft
    Shaft
  • 61
    503192346 Rear Swing
    Rear Swing
  • 62
    503192341 Rear Swing Shaft
    Rear Swing Shaft
  • 63
    234001410 Washer Flat M10
    Washer Flat M10
  • 64
    205006044 Screw Socket M10 X 60
    Screw Socket M10 X 60
  • 65
    233201414 Nut Flange Elastic
    Nut Flange Elastic
  • 66
    234001410 Washer Flat M10
    Washer Flat M10
  • 67
    207204044 Screw Hex M10 X 45
    Screw Hex M10 X 45
  • 68
    619590193 Grease
    Grease
  • 69
    230049 Spring guide
    Spring guide
  • 70
    503194001 CABLE COVER
    CABLE COVER
  • 71
    250000129 TORX-TRUSS M/S GM6047M NYLON PATCH
    TORX-TRUSS M/S GM6047M NYLON PATCH
  • 72
    250000630 TORX-TRUSS M/S M6 X 25 GM6047M
    TORX-TRUSS M/S M6 X 25 GM6047M
  • 73
    503194033 CABLE COVER
    CABLE COVER
  • 74
    518321570 OPEN CLAMP
    OPEN CLAMP
  • 75
    210261040 SCREW-FORMING HEX.HD.FL.DIN.7500D
    SCREW-FORMING HEX.HD.FL.DIN.7500D
  • 76
    503194013 SUPPORT
    SUPPORT
  • 77
    250000129 TORX-TRUSS M/S GM6047M NYLON PATCH
    TORX-TRUSS M/S GM6047M NYLON PATCH
  • 78
    414115200 TIE-RAP 188MM
    TIE-RAP 188MM
  • 79
    515177777 CONTROL BOX ASSY. Tractive Control box to handlebar
    CONTROL BOX ASSY. Tractive Control box to handlebar
  • 80
    515177779 CONTROL BOX ASSY FASTENER. Tractive Control box fastener to handlebar
    CONTROL BOX ASSY FASTENER. Tractive Control box fastener to handlebar
  • 81
    515177310 SUPPORT. support interrupteur d'urgence spark fil protege
    SUPPORT. support interrupteur d'urgence spark fil protege
  • 82
    250000263 SCREW TYPE #8-18 HI-LO TORX
    SCREW TYPE #8-18 HI-LO TORX
  • 83
    515177780 CONTROL BOX TCU-4 (XU). Control box TCU-4 (XU)
    CONTROL BOX TCU-4 (XU). Control box TCU-4 (XU)
  • 84
    515177944 WIRE SUPPORT PLATE. ECS cable support
    WIRE SUPPORT PLATE. ECS cable support
  • 85
    270000141 CLIP
    CLIP
  • 86
    293150037 RIVET-AVDEL 3/16
    RIVET-AVDEL 3/16
  • 87
    390909200 RIVET AVEX
    RIVET AVEX
  • 88
    515177776 SEMI ACTIVE SUSPENSION HARNESS. Tractive Semi Active Suspension
    SEMI ACTIVE SUSPENSION HARNESS. Tractive Semi Active Suspension
