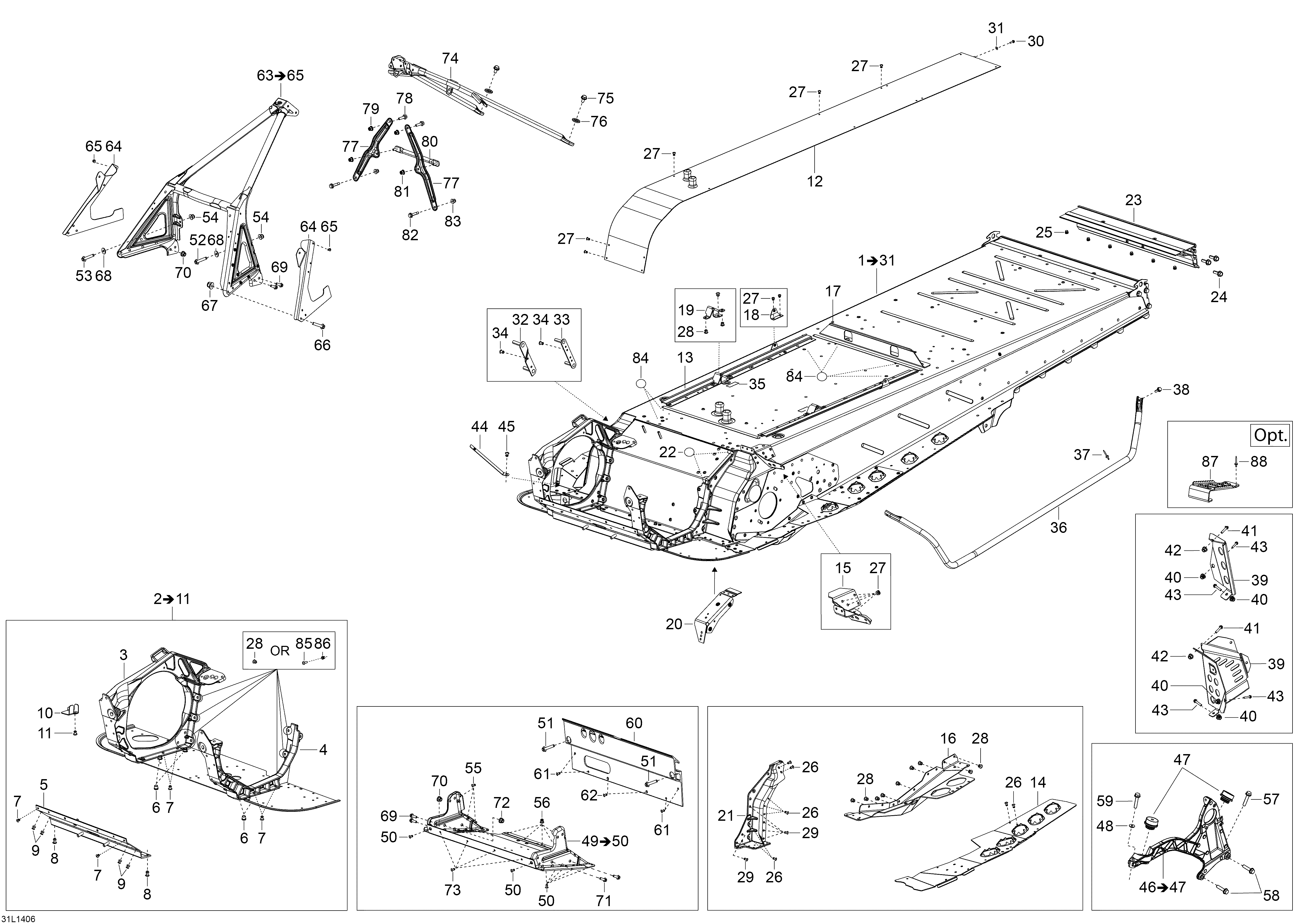

09- Frame для BRP Lynx 69 YETI 600 ACE - 2014
-
№АртикулНазвание
-
1518327550 Frame. Includes 1 To 31Frame. Includes 1 To 31
-
2518326518 Module E. Includes 2 To 11Module E. Includes 2 To 11
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10518327185 Muffler SupportMuffler Support
-
11293150163 RivetRivet
-
12509000867 Tunnel RadiatorTunnel Radiator
-
13518326107 Fastening RailFastening Rail
-
14518327481 Footrest LHFootrest LH
-
14518327482 Footrest RHFootrest RH
-
15518327884 Fastening BracketFastening Bracket
-
17518327003 Battery SupportBattery Support
-
18518327457 Seat Box BracketSeat Box Bracket
-
19518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
19518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
20518328096 Clinch Nut PlateClinch Nut Plate
-
21518325643 Frame Corner LHFrame Corner LH
-
21518325644 Frame Corner RHFrame Corner RH
-
22518325560 Adhesive PatchAdhesive Patch
-
23518325645 Rear ProfileRear Profile
-
24207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
25293150174 RivetRivet
-
26390909100 RivetRivet
-
27390909200 RivetRivet
-
28293150119 RivetRivet
-
29293150183 RivetRivet
-
30205061244 Socket Head Screw M6 x 12Socket Head Screw M6 x 12
-
32518326123 Gearbox Counter Plate FrontGearbox Counter Plate Front
-
33518326124 Gearbox Counter Plate RearGearbox Counter Plate Rear
-
34390402200 Pop Rivet 3/16Pop Rivet 3/16
-
35518326357 Rubber CoverRubber Cover
-
36518327595 Footboard Support Tube LHFootboard Support Tube LH
-
36518327596 Footboard Support Tube RHFootboard Support Tube RH
-
37390909100 RivetRivet
-
38207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39518327445 Toe Hook LHToe Hook LH
-
39518327447 Toe Hook RHToe Hook RH
-
40605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
41207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
42233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
43250000129 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
44514054828 Spring BracketSpring Bracket
-
45390909200 RivetRivet
-
46518327535 Brace Ass'y LH. Includes 46 To 47Brace Ass'y LH. Includes 46 To 47
-
47512060295 Rubber MountRubber Mount
-
48234281474 Washer-Spring ConicalWasher-Spring Conical
-
49518326213 Cross member. Includes 49 To 50Cross member. Includes 49 To 50
-
50390909200 RivetRivet
-
51210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
52207662544 Screw Hex. Flange M6 x 25Screw Hex. Flange M6 x 25
-
53207662544 Screw Hex. Flange M6 x 25Screw Hex. Flange M6 x 25
-
54233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
55390909100 RivetRivet
-
56390909200 RivetRivet
-
57207582586 Screw Hex. Flange M8 x 25Screw Hex. Flange M8 x 25
-
58207583586 Screw Hex. Flange M8 x 35Screw Hex. Flange M8 x 35
-
59207584044 Screw Hex. Flange M8 x 40Screw Hex. Flange M8 x 40
-
60518326140 Engine SupportEngine Support
-
61390909100 RivetRivet
-
62293150119 RivetRivet
-
63518326754 Front Member Ass'y. Includes 63 To 65Front Member Ass'y. Includes 63 To 65
-
64502007077 Bumper Fastener LHBumper Fastener LH
-
64502007078 Bumper Fastener RHBumper Fastener RH
-
65390909200 RivetRivet
-
66207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
67233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
68224061201 Flat WasherFlat Washer
-
69207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
70233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
71207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
72233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
73390909200 RivetRivet
-
74518326103 Upper Support TubeUpper Support Tube
-
75207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
77518326848 Upper ColumnUpper Column
-
78207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
80518326355 Upper ColumnUpper Column
-
81233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
82207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
83233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
84518325560 Adhesive PatchAdhesive Patch
-
85207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
86233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
87520000492 Footrest (Opt.)Footrest (Opt.)
-
88390909100 RivetRivet
