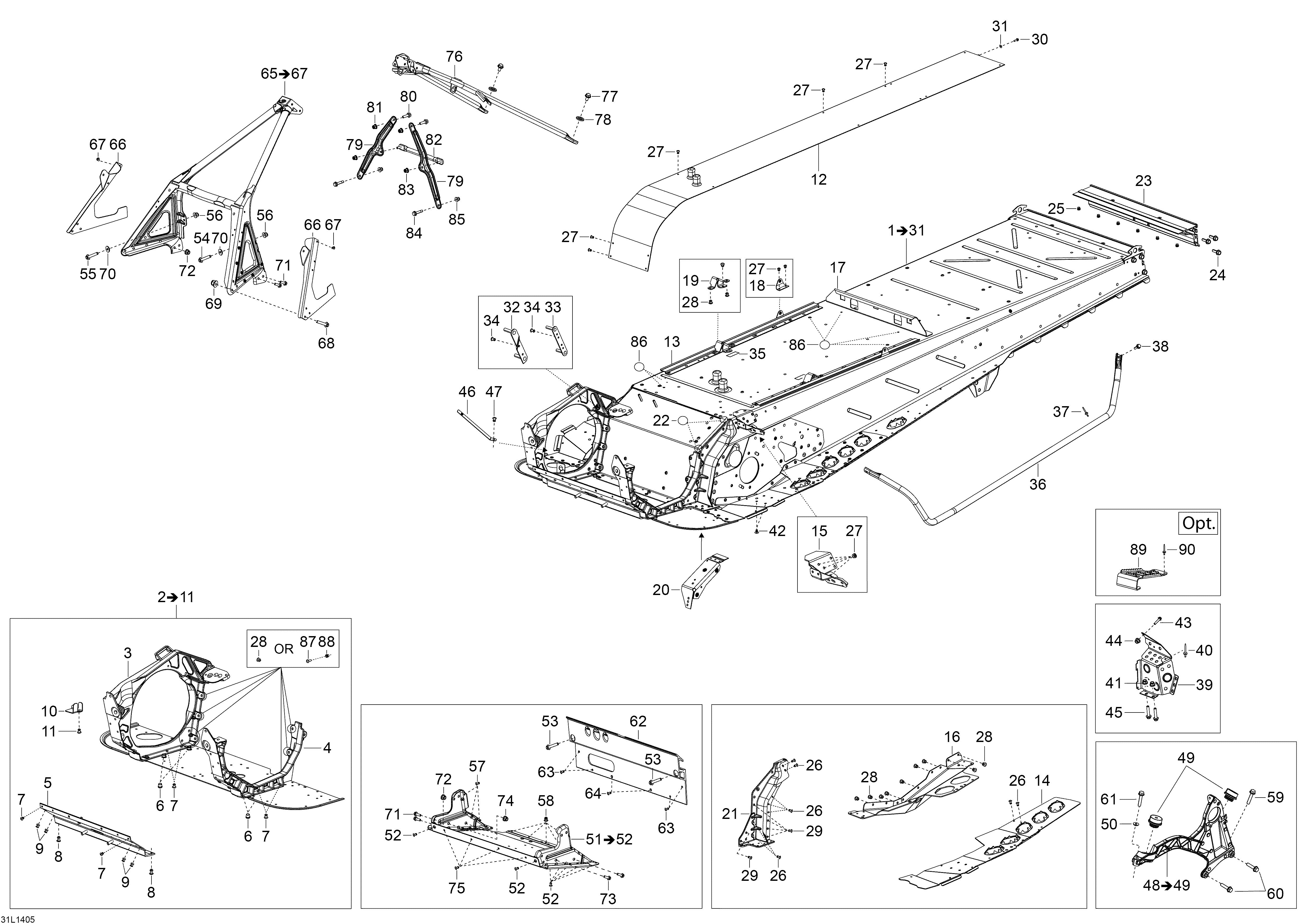

09- Frame для BRP Lynx 59 YETI 600 ACE - 2014
-
№АртикулНазвание
-
1518327666 Frame. Includes 1 To 31Frame. Includes 1 To 31
-
2518326518 Module E. Includes 2 To 11Module E. Includes 2 To 11
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10518327185 Muffler SupportMuffler Support
-
11293150163 RivetRivet
-
12509000867 Tunnel RadiatorTunnel Radiator
-
13518326107 Fastening RailFastening Rail
-
14518326895 Footrest LHFootrest LH
-
14518326896 Footrest RHFootrest RH
-
15605355235 Fastening BracketFastening Bracket
-
17518325986 Battery SupportBattery Support
-
18518327457 Seat Box BracketSeat Box Bracket
-
19518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
19518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
20518326430 Clinch Nut PlateClinch Nut Plate
-
21518325524 Frame Corner LHFrame Corner LH
-
21518328024 Frame Corner RHFrame Corner RH
-
22518325560 Adhesive PatchAdhesive Patch
-
23518327194 Rear ProfileRear Profile
-
24207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
25293150174 RivetRivet
-
26390909100 RivetRivet
-
27390909200 RivetRivet
-
28293150119 RivetRivet
-
29293150183 RivetRivet
-
30205061244 Socket Screw M6 x 12Socket Screw M6 x 12
-
32518326123 Gearbox Counter Plate FrontGearbox Counter Plate Front
-
33518326124 Gearbox Counter Plate RearGearbox Counter Plate Rear
-
34390402200 Pop Rivet 3/16Pop Rivet 3/16
-
35518326357 Rubber CoverRubber Cover
-
36518326963 Footboard Support Tube LHFootboard Support Tube LH
-
36518326964 Footboard Support Tube RHFootboard Support Tube RH
-
37390909100 RivetRivet
-
38207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39518326671 Toe Hook LHToe Hook LH
-
39518326672 Toe Hook RHToe Hook RH
-
40390909200 RivetRivet
-
41605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
42414644300 DartDart
-
43207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
46514054616 Spring BracketSpring Bracket
-
47390909200 RivetRivet
-
48518327535 Brace Ass'y LH. Includes 48 To 49Brace Ass'y LH. Includes 48 To 49
-
49512060295 Rubber MountRubber Mount
-
50234281474 Spring Conical WasherSpring Conical Washer
-
51518326213 Module S Cross Member. Includes 51 To 52Module S Cross Member. Includes 51 To 52
-
52390909200 RivetRivet
-
53210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
54207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
55207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
56233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
57390909100 RivetRivet
-
58390909200 RivetRivet
-
59207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
60207583586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
61207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
62518326140 Engine SupportEngine Support
-
63390909100 RivetRivet
-
64293150119 RivetRivet
-
65518326754 Front Member Ass'y. Includes 65 To 67Front Member Ass'y. Includes 65 To 67
-
66502007077 Bumper Fastener LHBumper Fastener LH
-
66502007078 Bumper Fastener RHBumper Fastener RH
-
67390909200 RivetRivet
-
68207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
69233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
70224061201 Flat WasherFlat Washer
-
71207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
72233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
73207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
74233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
75390909200 RivetRivet
-
76518326103 Upper Support TubeUpper Support Tube
-
77207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
79518326848 Upper ColumnUpper Column
-
80207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
81233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
82518326355 Upper ColumnUpper Column
-
83233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
84207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
85233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
86518325560 Adhesive PatchAdhesive Patch
-
87207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
88233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
89520000492 Footrest (Opt.)Footrest (Opt.)
-
90390909100 RivetRivet
