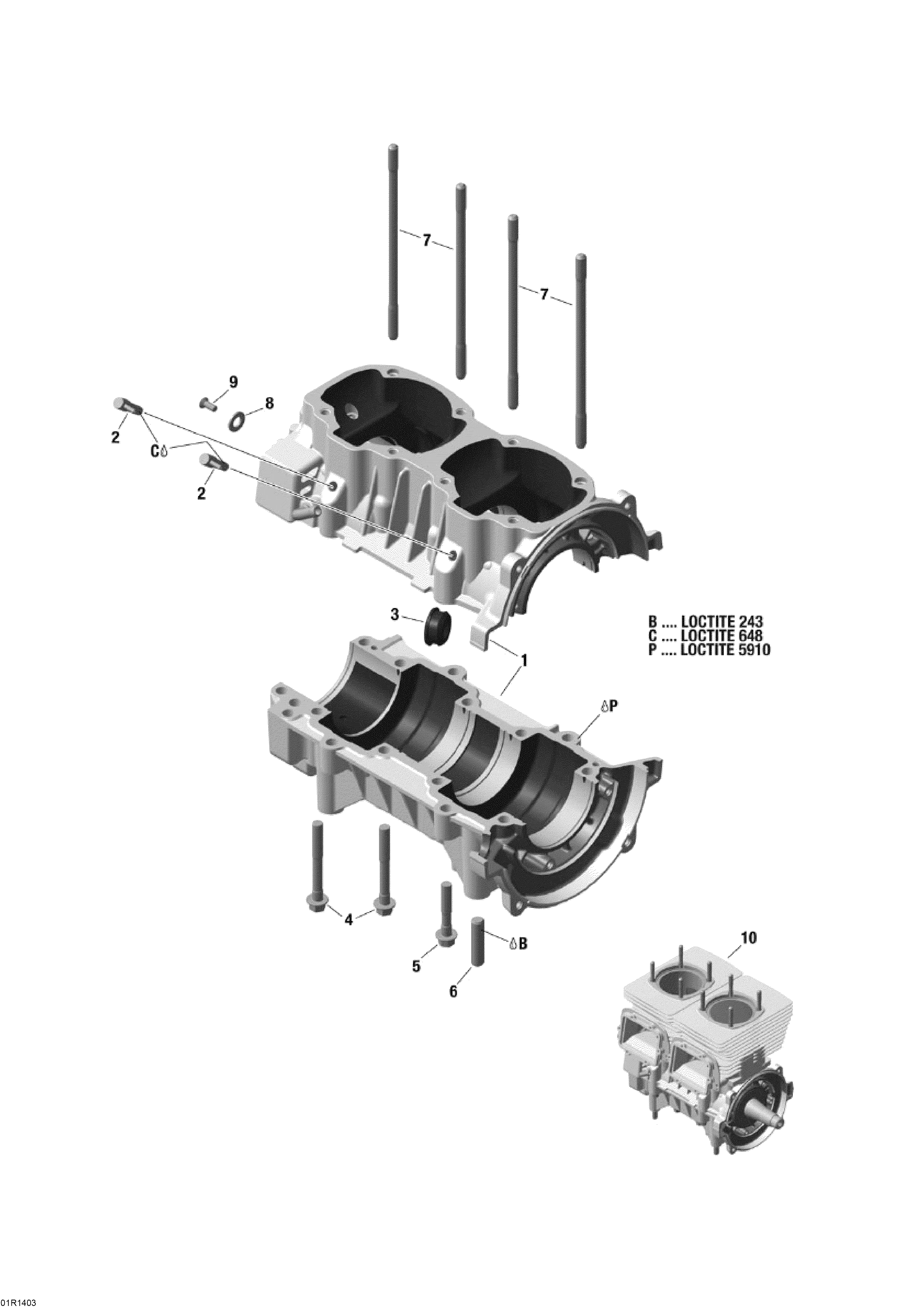

01- Crankcase для BRP Lynx 59 YETI 550 - 2014

  • №
    Артикул
    Название
  • 1
    420890237 Crankcase Ass'y. Includes 1 To 4
    Crankcase Ass'y. Includes 1 To 4
  • 2
    420956510 Checkvalve Ass'y
    Checkvalve Ass'y
  • 3
    420860962 Cable Grommet
    Cable Grommet
  • 4
    420640951 Collar Hex. Screw M8 x 68,5. Tightening Torque 26-28 Nm
    Collar Hex. Screw M8 x 68,5. Tightening Torque 26-28 Nm
  • 5
    420640431 Collar Hex. Screw M8 x 45. Tightening Torque 26-28 Nm
    Collar Hex. Screw M8 x 45. Tightening Torque 26-28 Nm
  • 6
    420840266 Stud M10 x 45. Tightening Torque 10-12 Nm
    Stud M10 x 45. Tightening Torque 10-12 Nm
  • 7
    420840556 Stud Screw M8 x 173,5. Tightening Torque 8-10 Nm
    Stud Screw M8 x 173,5. Tightening Torque 8-10 Nm
  • 8
    420250311 Washer 8,4
    Washer 8,4
  • 9
    420640896 Taptite Flat Head Screw M5 x 12. Tightening Torque 6-7 Nm
    Taptite Flat Head Screw M5 x 12. Tightening Torque 6-7 Nm
  • 10
    300055208 Short Block Engine
    Short Block Engine
  • B
    293800060 Loctite 243, 10ml
    Loctite 243, 10ml
  • C
    619600012 Loctite 609, 50ml
    Loctite 609, 50ml
  • P
    293800081 Loctite 5910, 300ml
    Loctite 5910, 300ml
