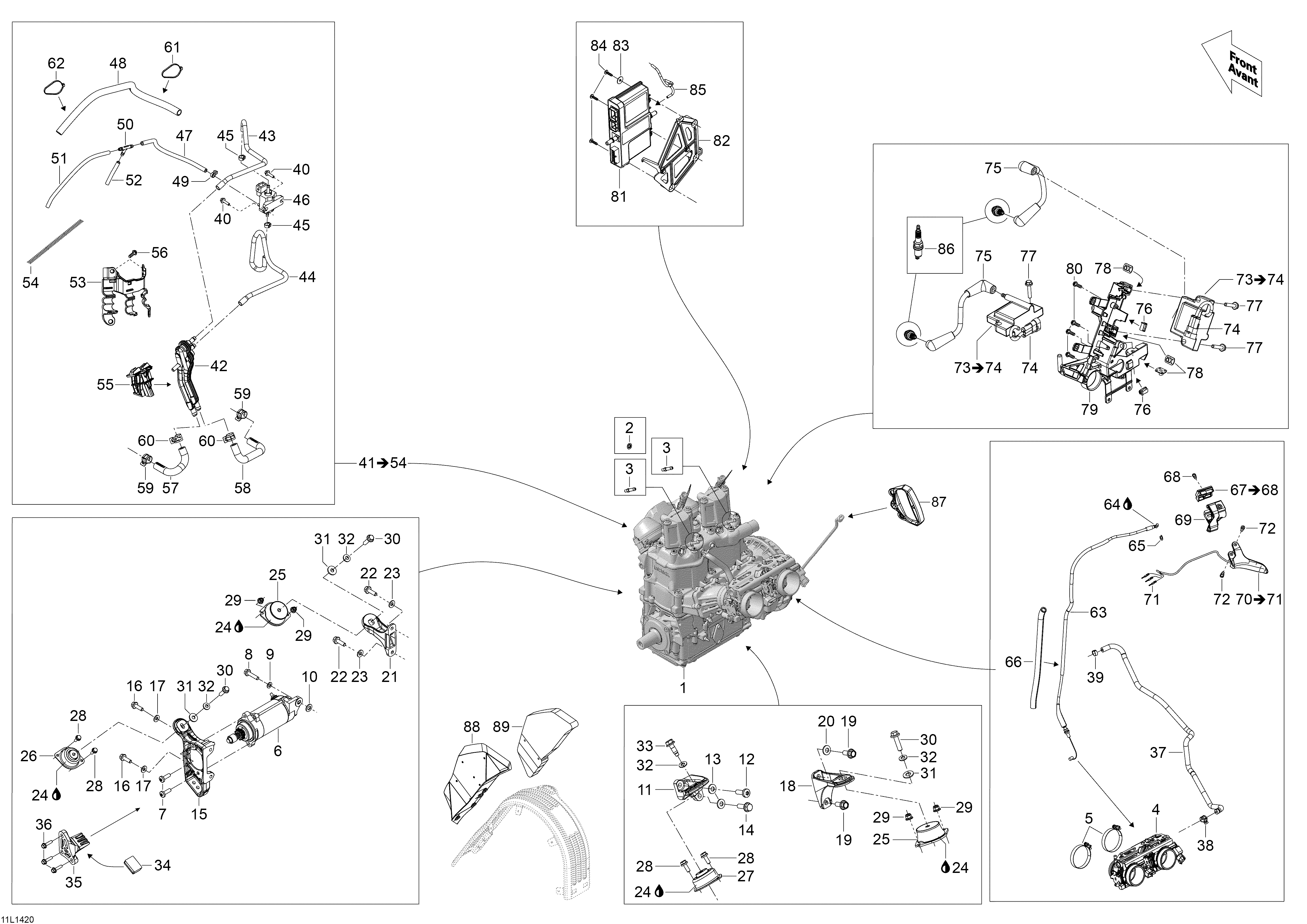

01- Engine And Engine Support для BRP Lynx Xtrim SC 600 E-TEC - 2014

  • №
    Артикул
    Название
  • 2
    732610072 Push Nut
    Push Nut
  • 3
    420924724 Hose Nipple
    Hose Nipple
  • 4
    420889197 Throttle Body
    Throttle Body
  • 5
    293650158 Clamp
    Clamp
  • 6
    515177389 Electric Starter. (Electrical Start)
    Electric Starter. (Electrical Start)
  • 7
    250000248 Pan HD. Torx Screw M8 x 25, Scotch Grip. (Electrical Start)
    Pan HD. Torx Screw M8 x 25, Scotch Grip. (Electrical Start)
  • 8
    207583544 Hex. Flange Screw M8 x 35, Scotch Grip. (Electrical Start)
    Hex. Flange Screw M8 x 35, Scotch Grip. (Electrical Start)
  • 9
    250200008 Flat Washer M8. (Electrical Start)
    Flat Washer M8. (Electrical Start)
  • 10
    515176500 Washer. (Electrical Start)
    Washer. (Electrical Start)
  • 11
    512060478 Rear Support, PTO Side
    Rear Support, PTO Side
  • 12
    250000248 Pan HD. Torx Screw M8 x 25, Scotch Grip
    Pan HD. Torx Screw M8 x 25, Scotch Grip
  • 13
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 14
    207582586 Hex. Flanged Screw M8 x 25, Scotch Grip
    Hex. Flanged Screw M8 x 25, Scotch Grip
  • 15
    512060712 Front Support, PTO Side
    Front Support, PTO Side
  • 16
    207582586 Hex. Flange Screw M8 x 25, Scotch Grip
    Hex. Flange Screw M8 x 25, Scotch Grip
  • 17
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 18
    512060559 Rear Support, MAG Side
    Rear Support, MAG Side
  • 19
    207582044 Hex. Flange Screw M8 x 20, Scotch Grip
    Hex. Flange Screw M8 x 20, Scotch Grip
  • 20
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 21
    512060469 Front Support, MAG Side
    Front Support, MAG Side
  • 22
    207582586 Hex. Flange Screw M8 x 25, Scotch Grip
    Hex. Flange Screw M8 x 25, Scotch Grip
  • 23
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 25
    512060729 Rubber Mount
    Rubber Mount
  • 26
    512060387 Rubber Mount
    Rubber Mount
  • 27
    512060448 Rubber Mount
    Rubber Mount
  • 28
    207561644 Hex. Flange Screw M6 x 16, Scotch Grip
    Hex. Flange Screw M6 x 16, Scotch Grip
  • 29
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 30
    207683044 Hex. Flange Screw M8 x 30
    Hex. Flange Screw M8 x 30
  • 31
    503183200 Washer, Yellow
    Washer, Yellow
  • 32
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 33
    250000570 Hex. Screw M8
    Hex. Screw M8
  • 34
    512060627 Stopper
    Stopper
  • 35
    512060576 Stopper Support
    Stopper Support
  • 36
    207562544 Hex. Flanged Screw M6 x 25, Scotch Grip
    Hex. Flanged Screw M6 x 25, Scotch Grip
  • 37
    512060944 Hose
    Hose
  • 38
    293650172 Clamp
    Clamp
  • 39
    293650046 Oetiker Clamp
    Oetiker Clamp
  • 40
    241151640 Hex. Flange Screw K50 x 16
    Hex. Flange Screw K50 x 16
  • 42
    512060692 Manifold
    Manifold
  • 43
    415080200 Hose
    Hose
  • 44
    415080200 Hose
    Hose
  • 45
    293650234 Clamp
    Clamp
  • 46
    512060774 Solenoid Valve
    Solenoid Valve
  • 47
    270000374 Hose
    Hose
  • 48
    409901700 Tubing
    Tubing
  • 49
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 50
    293710068 T-Fitting
    T-Fitting
  • 51
    270000374 Hose
    Hose
  • 52
    270000374 Hose
    Hose
  • 53
    512060827 Clip Ass?y
    Clip Ass?y
  • 54
    512060930 Spring
    Spring
  • 55
    512060769 Support
    Support
  • 56
    210251180 Forming Screw M5 x 11
    Forming Screw M5 x 11
  • 57
    512060695 Hose
    Hose
  • 58
    512060694 Hose
    Hose
  • 59
    293650214 Spring Clamp
    Spring Clamp
  • 60
    293650047 Crimp Clamp
    Crimp Clamp
  • 61
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 62
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 63
    512060668 Throttle Cable
    Throttle Cable
  • 64
    619600021 Loctite 8104 (Dielectric Grease), 75ml
    Loctite 8104 (Dielectric Grease), 75ml
  • 65
    414274500 Circlip
    Circlip
  • 66
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 67
    512060859 Upper Housing. Includes 67 To 68
    Upper Housing. Includes 67 To 68
  • 68
    414440800 Set Screw M8 x 10
    Set Screw M8 x 10
  • 69
    512060860 Lower Housing
    Lower Housing
  • 70
    512060815 Throttle Handle Ass'y. Includes 70 To 71
    Throttle Handle Ass'y. Includes 70 To 71
  • 71
    515175232 Male Terminal
    Male Terminal
  • 72
    732601143 Shoulder Screw
    Shoulder Screw
  • 73
    512060877 Ignition Coil. Includes 73 To 74
    Ignition Coil. Includes 73 To 74
  • 74
    710000568 Housing
    Housing
  • 75
    512060094 Ignition Cable, 177 mm
    Ignition Cable, 177 mm
  • 76
    710000992 Clip
    Clip
  • 77
    250000253 Hex. Flange Screw M6 x 30
    Hex. Flange Screw M6 x 30
  • 78
    293100003 Nut
    Nut
  • 79
    512060888 Support Coils
    Support Coils
  • 80
    241151640 Hex. Flange Screw K50 x 16
    Hex. Flange Screw K50 x 16
  • 81
    512060912 Calibrated Module ETEC
    Calibrated Module ETEC
  • 82
    512060858 Calibrated Module Support
    Calibrated Module Support
  • 83
    250200040 Flat Washer
    Flat Washer
  • 84
    250000297 Truss Head Torx Screw K50 x 20
    Truss Head Torx Screw K50 x 20
  • 85
    415080100 Line
    Line
  • 86
    415129432 Spark Plug (PZFR6F)
    Spark Plug (PZFR6F)
  • 87
    512060136 Starter Grip. (Manual Start)
    Starter Grip. (Manual Start)
  • 88
    512060847 Noise Shield
    Noise Shield
  • 89
    512060958 Interior Noise Foam
    Interior Noise Foam
